FX541V-AS04 4 Stroke Engine FX541V

FX541V-AS04 Cooling-Equipment Diagram

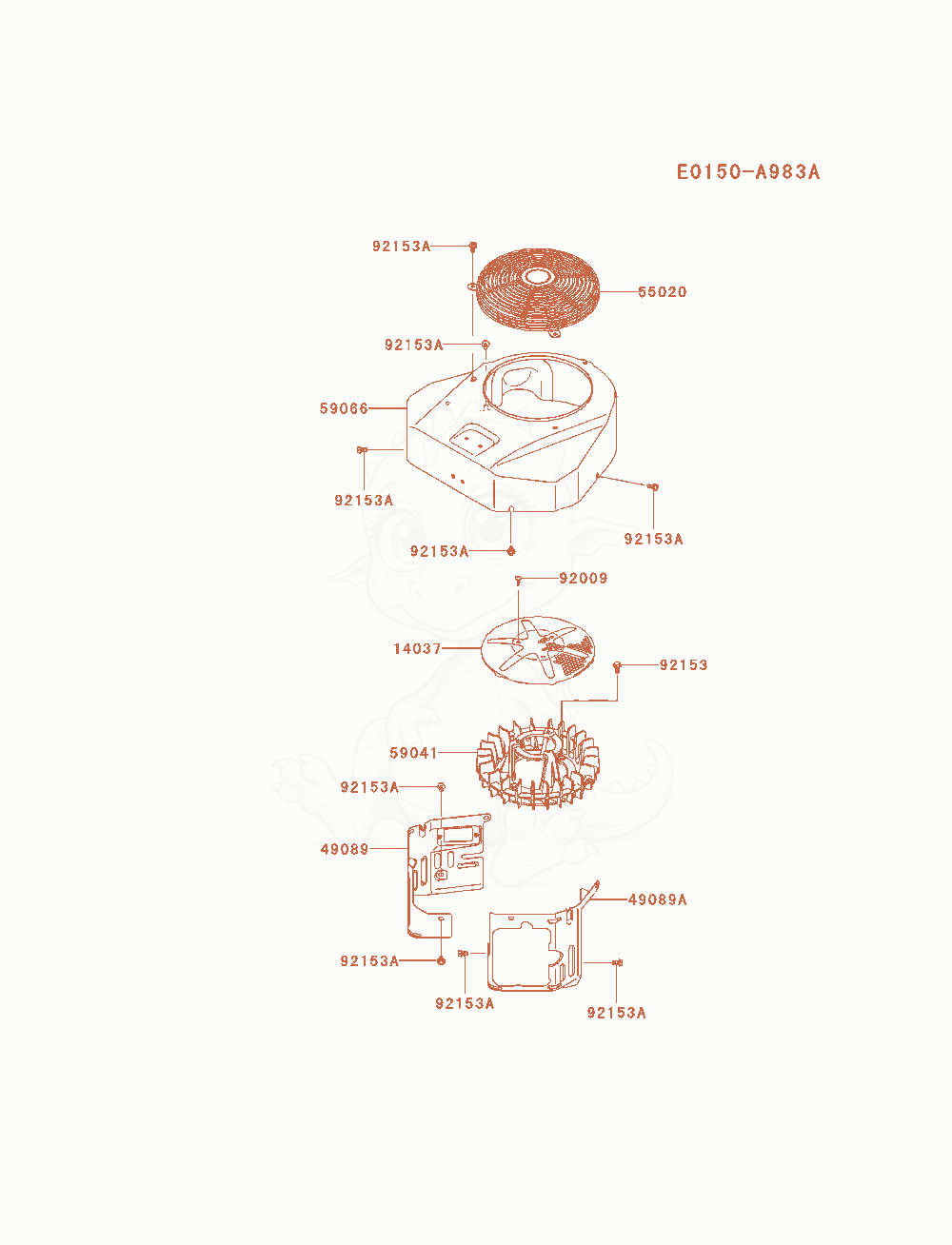

Exploded parts diagram of the Cooling-Equipment of a Kawasaki FX541V-AS04 engine, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 1403714037-7008-9HPrice
    SCREEN×1
  • 4908949089-7085-753Not stocked
    SHROUD-ENGINE×1
  • 49089A49089-7086-753Not stocked
    SHROUD-ENGINE×1
  • 5502055020-7017-9HPrice
    GUARD×1
  • 5904159041-7016Price
    FAN×1
  • 5906659066-7061-753Not stocked
    HOUSING-FAN×1
  • 9200992009-2303Price
    SCREWReplaced by 92172-1608×3
  • 9215392153-7007Price
    BOLT,FLANGED,6X16×4
  • 92153A92153-7043Not stocked
    BOLT,6X12×11
