FX541V-AS04 4 Stroke Engine FX541V

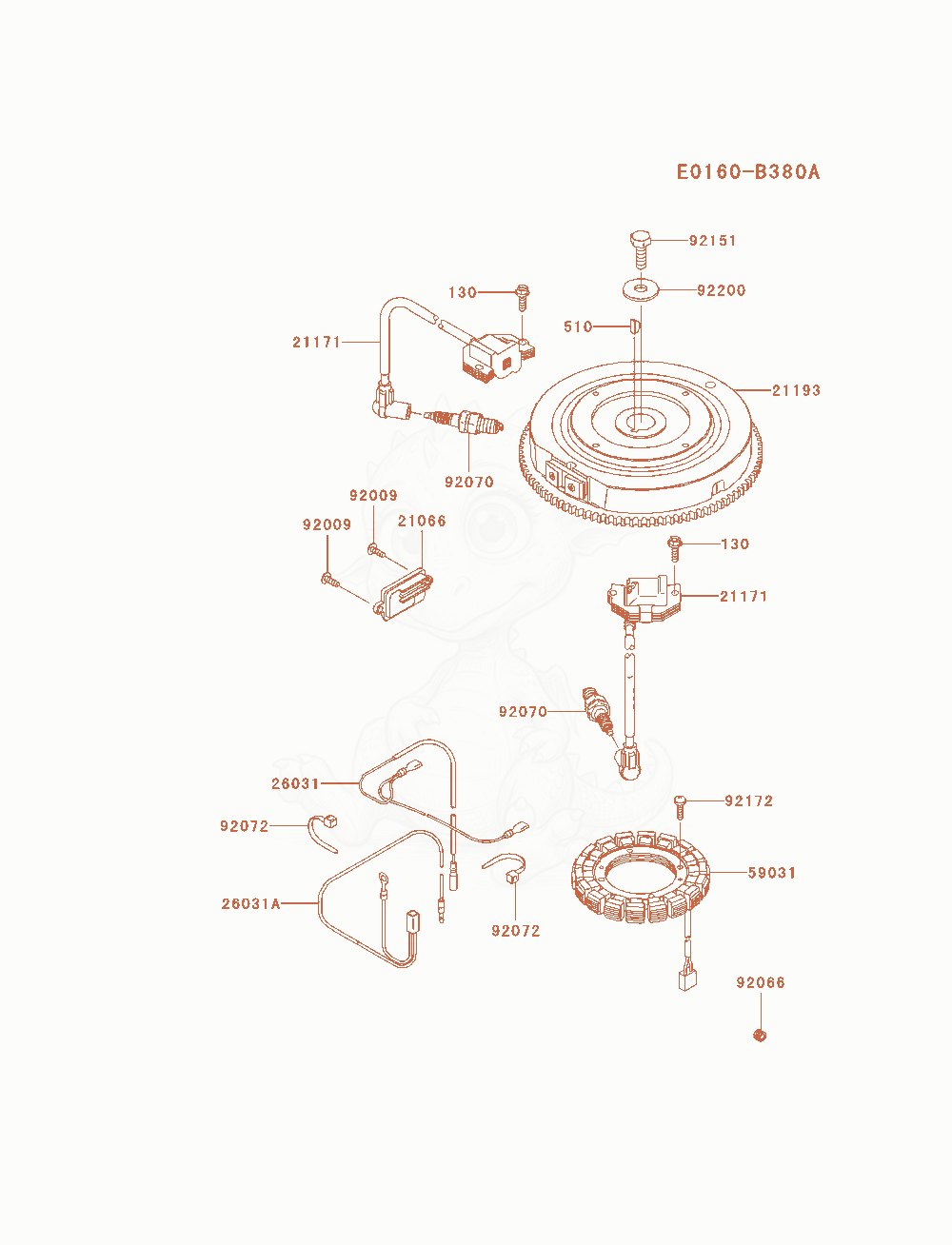

FX541V-AS04 Electric-Equipment Diagram
- REGULATOR-VOLTAGE×1
- 2117121171-7047Not stockedCOIL-ASSY-IGNITION×2
- FLYWHEEL-ASSYReplaced by 21193-0719×1
- HARNESS×1
- HARNESS×1
- COIL-CHARGING×1
- SCREWReplaced by 92172-1608×2
- 9206692066-7026Not stockedPLUG×1
- PLUG-SPARK,BPR4ES(NGK×2
- BAND×2
- 9215192151-2097Not stockedBOLT,12X30×1
- SCREW,5X20×4
- WASHERReplaced by 92200-2535×1
- BOLT-FLANGED,6X20×4
- KEY-WOODRUFF×1
