FX541V-AS04 4 Stroke Engine FX541V

FX541V-AS04 Fuel-Tank / Fuel-Valve Diagram

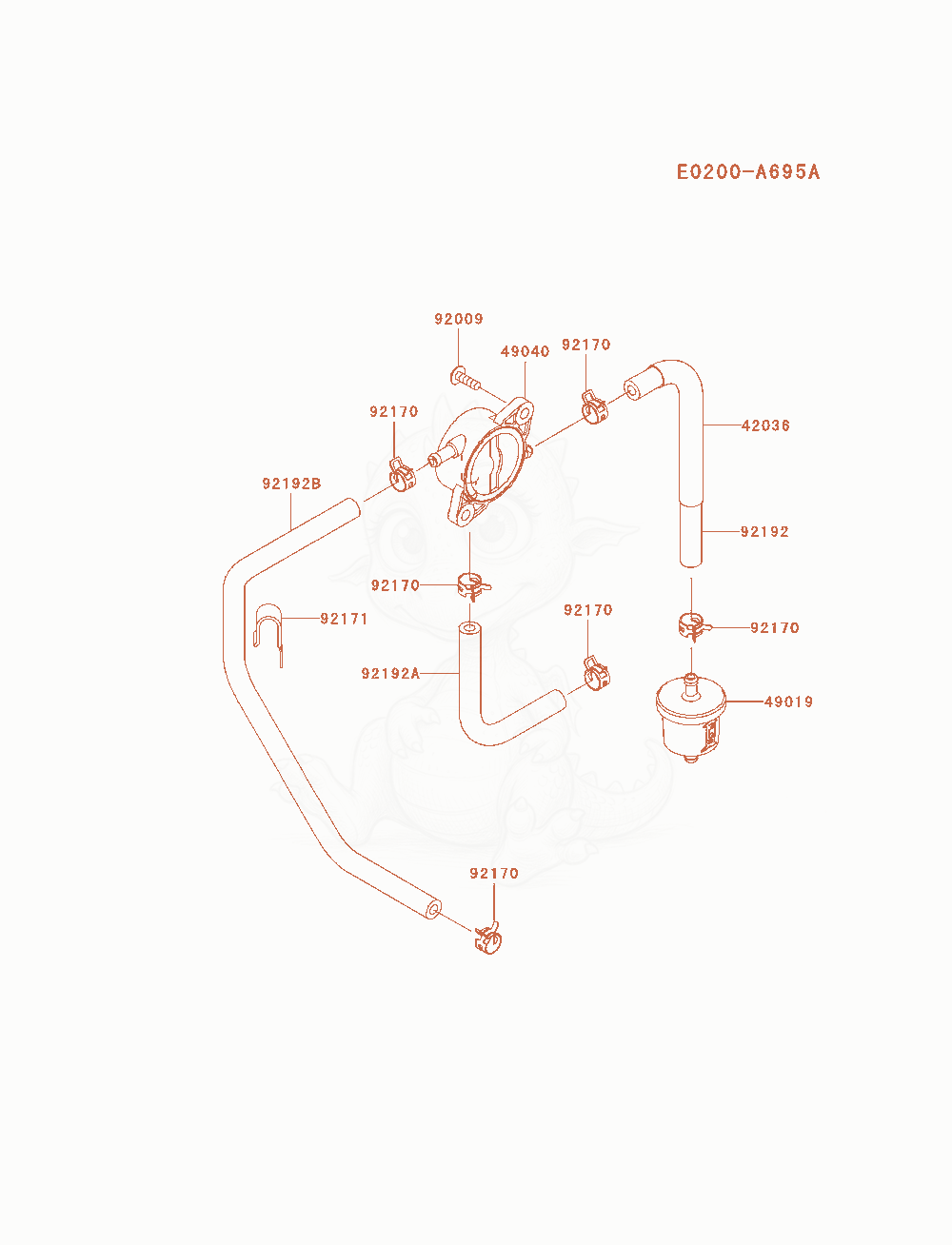

Exploded parts diagram of the Fuel-Tank / Fuel-Valve of a Kawasaki FX541V-AS04 engine, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 4203642036-7015Price
    SLEEVE×1
  • 4901949019-7005Not stocked
    FILTER-FUEL×1
  • 4904049040-7008Not stocked
    PUMP-FUEL×1
  • 9200992009-2303Price
    SCREWReplaced by 92172-1608×2
  • 9217092170-2009Price
    CLAMPReplaced by 92173-1582×6
  • 9217192171-7008Not stocked
    CLAMP×1
  • 9219292192-7145Not stocked
    TUBE,6.35X12.7X185×1
  • 92192A92192-7148Price
    TUBE,6.4X12.7X150×1
  • 92192B92192-7159Not stocked
    TUBE,6.35X12.7X360×1
