FX541V-AS04 4 Stroke Engine FX541V

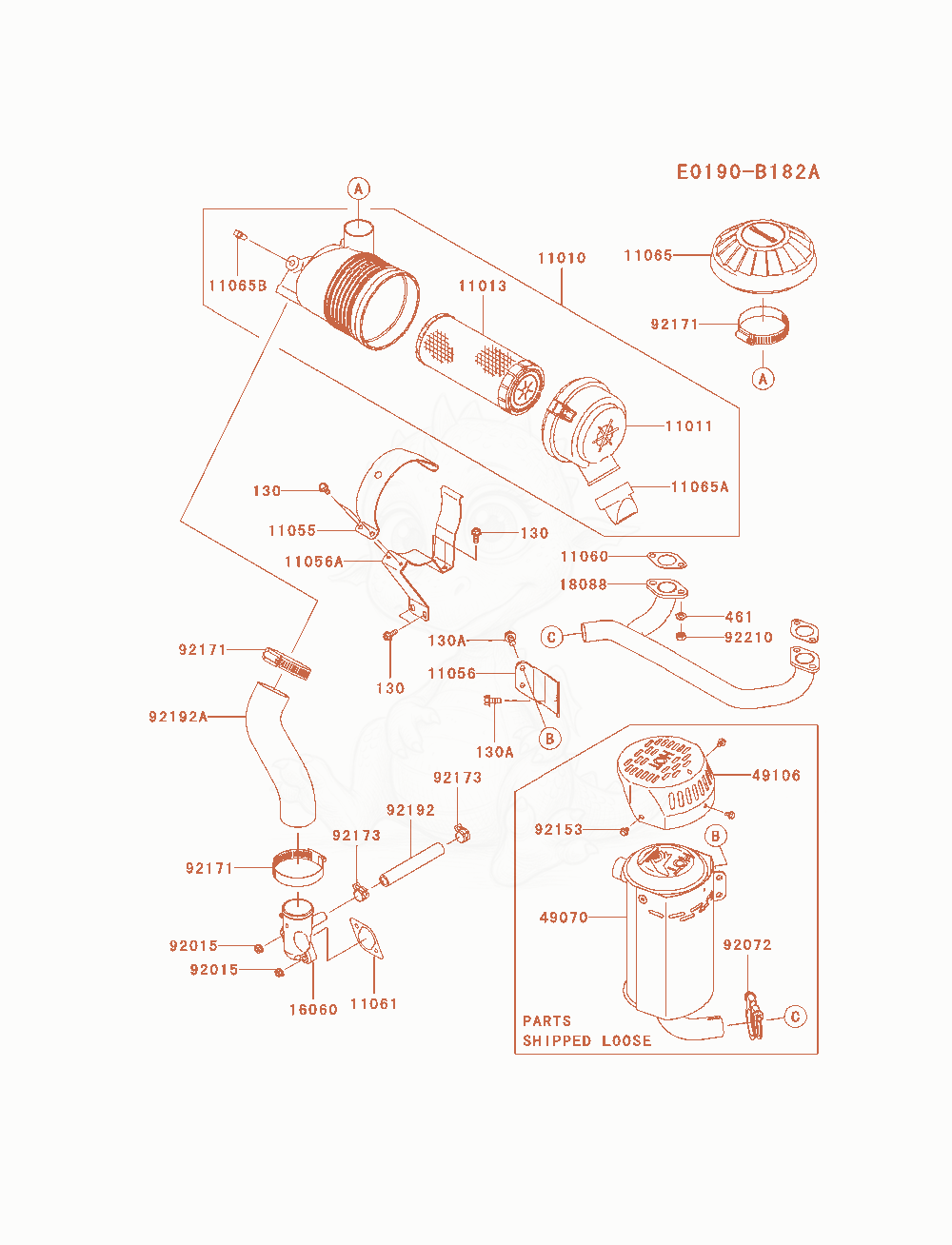

FX541V-AS04 Air-Filter / Muffler Diagram
- FILTER-ASSY-AIR×1
- CASE-AIR FILTER×1
- ELEMENT-AIR FILTER×1
- BRACKETReplaced by 11058-2118×1
- KIT.×1
- BRACKETReplaced by 11058-2136×1
- GASKET,MUFFLER×2
- GASKET-AIR FILTER×1
- CAPReplaced by 11065-1392×1
- CAP×1
- CAP×1
- PIPE-INTAKEReplaced by 16060-0792×1
- 1808818088-7010Not stockedPIPE-EXHAUST×1
- MUFFLER-COMP×1
- COVER-MUFFLER×1
- NUT,FLANGED,6MM×2
- BAND×1
- BOLT×3
- 9217192171-7010Not stockedCLAMP×3
- CLAMP×2
- TUBE,12.6X18.6X118×1
- TUBE,A/CReplaced by 92192-2624×1
- NUT,M8×4
- BOLT-FLANGED,6X16×6
- BOLT-FLANGED,8X16×4
- WASHER-SPRING,8MM×4
