FD750D-AS02 4 Stroke Engine FD750D

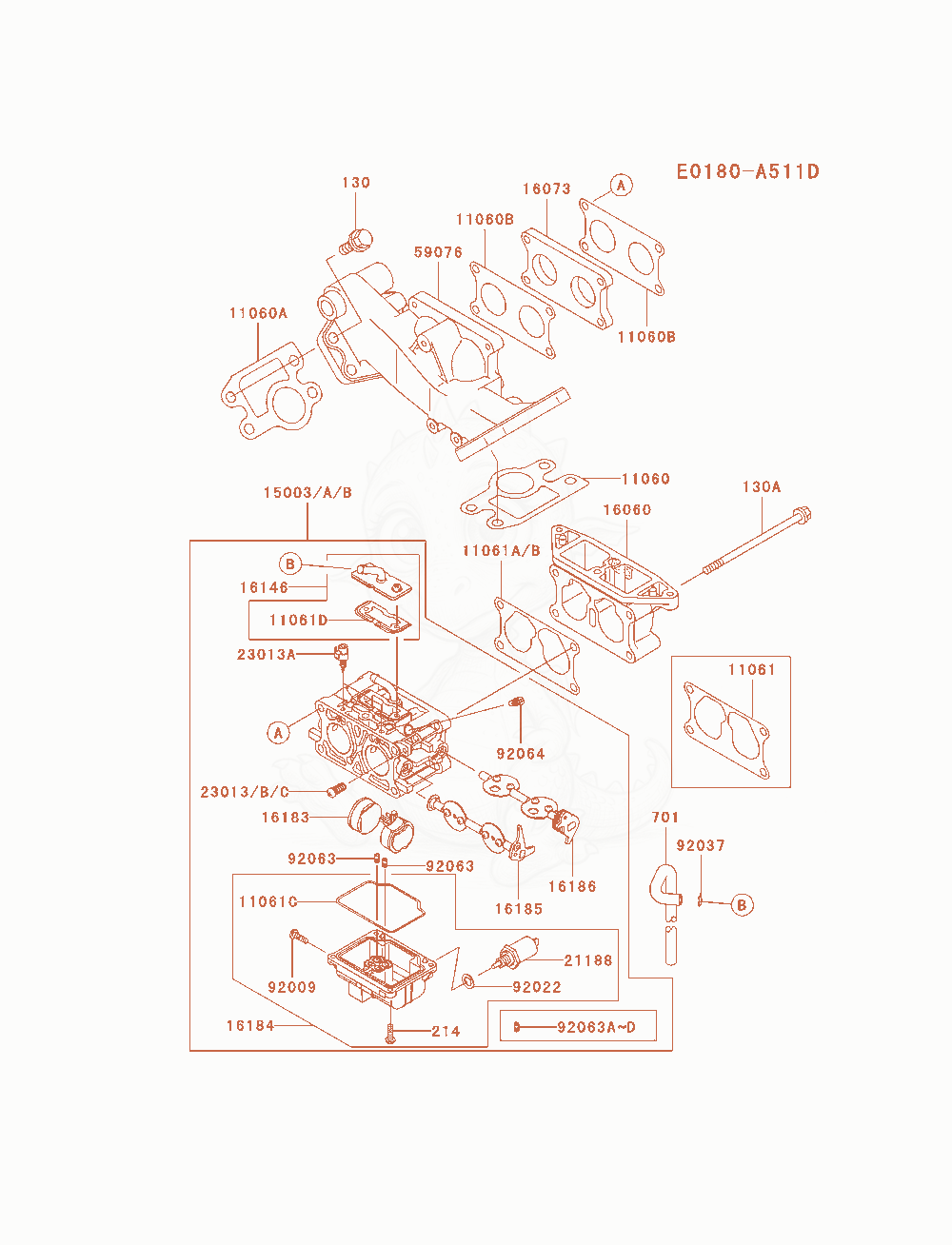

Despiece de Carburetor · FD750D-AS02
- GASKET,INTAKE MANIFOLD×1
- GASKET,INTAKE MANIFOLD×1
- GASKET,INTAKE PIPE×2
- GASKET,PIPE-INTAKE×0
- GASKET,PIPE-INTAKE×1
- GASKET,CHAMBER×1
- GASKET,COVER×1
- 1500315003-2989No la vendemosCARBURETOR-ASSY×0
- 15003A15003-2989No la vendemosCARBURETOR-ASSY×1
- PIPE-INTAKE×1
- INSULATOR×1
- COVER-ASSY×1
- FLOAT-ASSY×1
- CHAMBER-ASSY-FLOAT×1
- 1618516185-2036No la vendemosVALVE-ASSY-THROTTLE×1
- VALVE-ASSY-CHOKE×1
- SOLENOID×1
- 2301323013-2059No la vendemosSCREW-ASSY×0
- SCREW-ASSY×1
- SCREW-ASSY×1
- MANIFOLD-INTAKE×1
- SCREW,DRAIN×1
- WASHER×1
- CLAMP×1
- JET-MAIN,#106.3×2
- 92063B92063-2381No la vendemosJET,MAIN 103.8×AR
- JET-MAIN,#101.3×AR
- JET-PILOT,#43.8×2
- BOLT-FLANGED,8X25Sustituida por 130BA0825×8
- BOLT-FLANGEDSustituida por 130CA06110×4
- SCREW-PAN,4X14Sustituida por 214AA0414×4
- TUBE-PVC×1
