FD750D-AS02 4 Stroke Engine FD750D

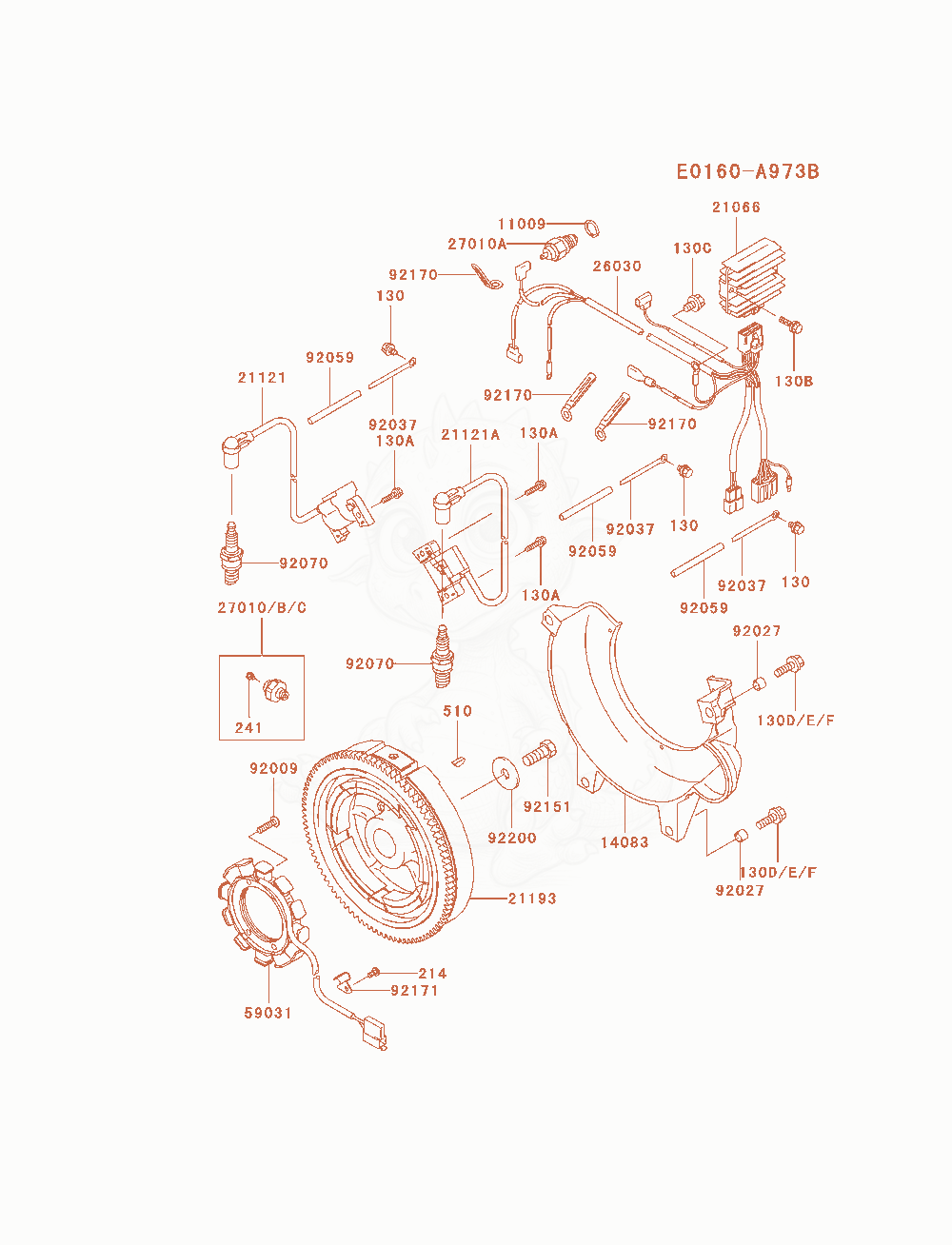

Despiece de Electric-Equipment · FD750D-AS02
- GASKET,16X21X2×1
- COVER-FLYWHEEL×1
- REGULATOR-VOLTAGE×1
- 2112121121-2090No la vendemosCOIL-IGNITION,NO1×1
- 21121A21121-2091No la vendemosCOIL-IGNITION,NO2×1
- FLYWHEEL-ASSY×1
- HARNESS×1
- SWITCH,OIL PRESSURE×0
- SWITCH,TEMP×1
- SWITCH,OIL PRESSURE×1
- COIL-CHARGING×1
- SCREW,6X25×4
- COLLAR,8.8X12X9×4
- CLAMP×3
- TUBE,5X6X75×3
- 9207092070-2110No la vendemosPLUG-SPARK,BPR2ES×2
- 9215192151-2097No la vendemosBOLT,12X30×1
- CLAMP×3
- CLAMP×1
- WASHER,12.2X40X3.0×1
- BOLT-FLANGED,6X8Sustituida por 130AB0608×3
- BOLT-FLANGED,5X20×4
- BOLT-FLANGED,6X20Sustituida por 130BA0620×2
- BOLT-FLANGED,8X12×1
- BOLT-FLANGED,8X20Sustituida por 130BA0820×0
- BOLT-FLANGED,8X25Sustituida por 130BA0825×4
- SCREW-PAN,5X10Sustituida por 214AA0510×1
- 241223D0406No la vendemosSCREW-PAN-WS-CROS×0
- KEY-WOODRUFF×1
