FXT00V-AS16 4 Stroke Engine FXT00V

FXT00V-AS16 Piston / Crankshaft Diagram

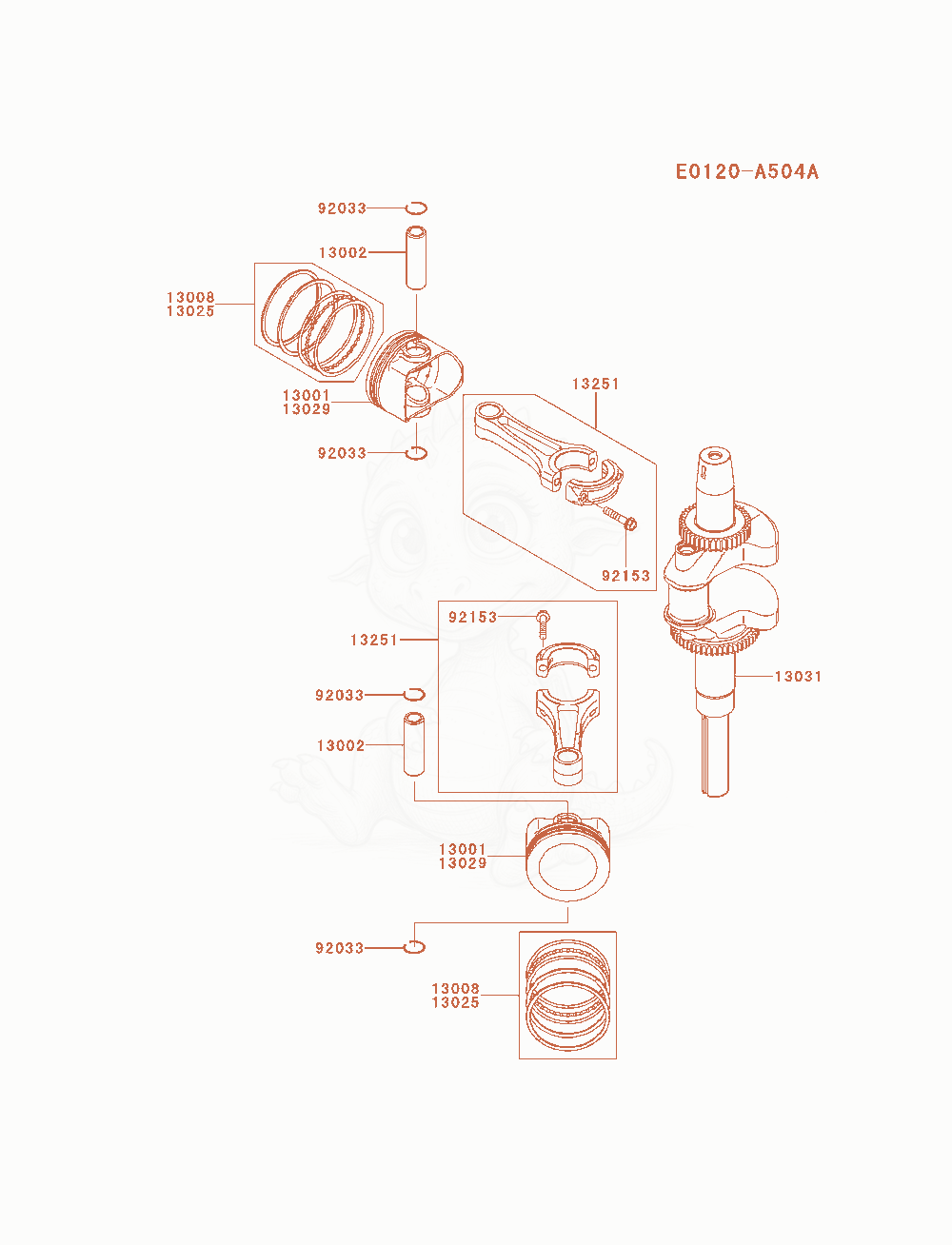

Exploded parts diagram of the Piston / Crankshaft of a Kawasaki FXT00V-AS16 engine, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 1300113001-7032
    $84.89
    PISTON-ENGINE×2
  • 1300213002-7004
    $0.00
    PIN-PISTONReplaced by 13002-0744×2
  • 1300813008-7007
    $43.97
    RING-SET-PISTON×2
  • 1302513025-0014
    $45.53
    RING-SET-PISTON L0.5×AR
  • 1302913029-0025
    $83.10
    PISTON-ENGINE L0.5×AR
  • 1303113031-0856
    $324.02
    CRANKSHAFT-COMPReplaced by 13031-1571×1
  • 1325113251-0044
    $58.94
    ROD-ASSY-CONNECTINGReplaced by 13251-0732×2
  • 9203392033-0726Not stocked
    RING-SNAP×4
  • 9215392153-2054
    $1.59
    BOLT,7X35.2×4
