FXT00V-AS16 4 Stroke Engine FXT00V

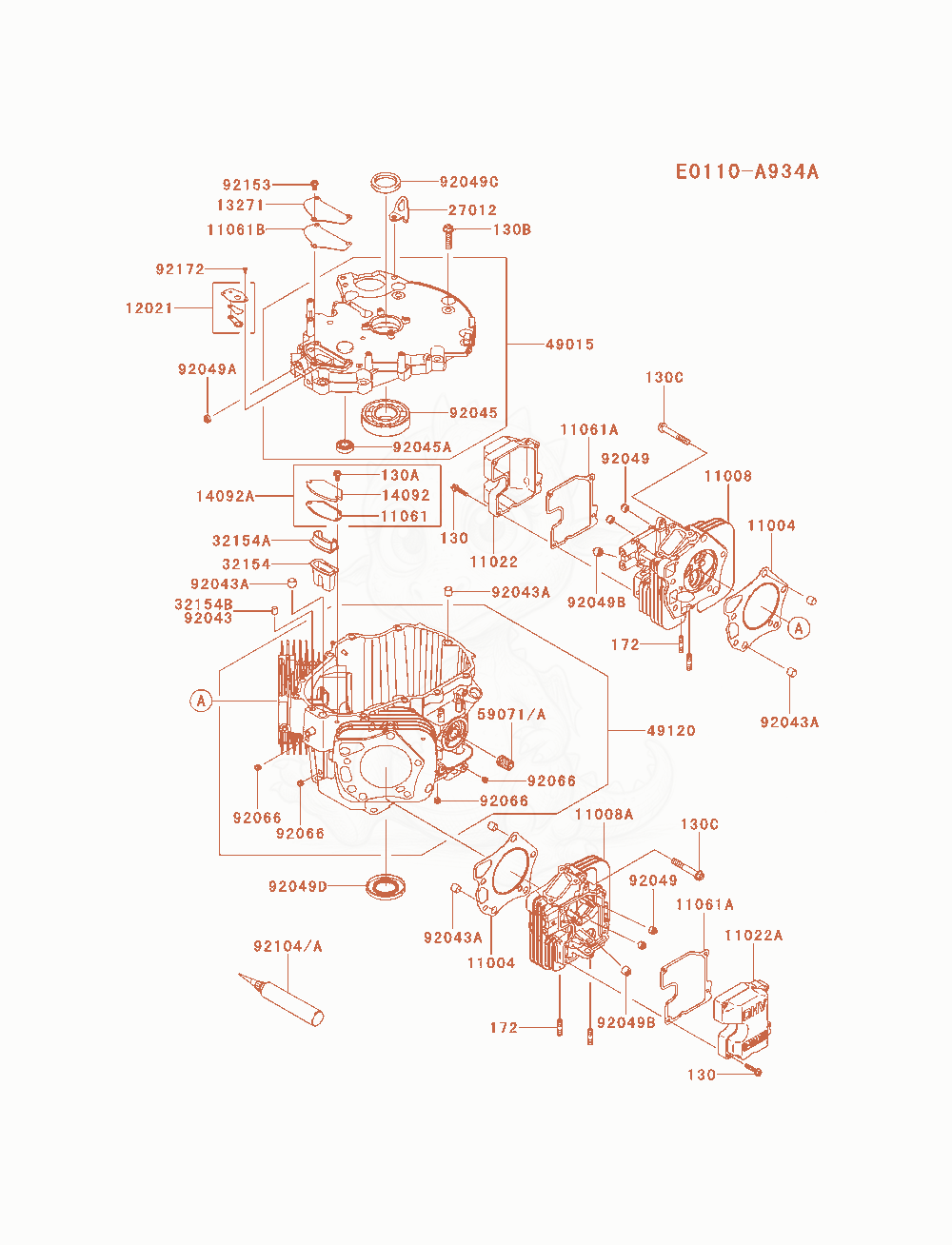

FXT00V-AS16 Cylinder / Crankcase Diagram
- GASKET-HEAD×2
- HEAD-COMP-CYLINDER,#1Replaced by 99999-0622×1
- HEAD-COMP-CYLINDER,#2Replaced by 99999-0623×1
- 1102211022-0707Not stockedCASE-ROCKER,#1×1
- 11022A11022-0708Not stockedCASE-ROCKER,#2×1
- GASKET,BREATHER×1
- GASKET,CASE-ROCKER×2
- GASKET,BREATHER-COVER×1
- VALVE-ASSY-REED,BREATHER×1
- PLATE,BREATHER-COVER×1
- COVER,BREATHERReplaced by 14093-1283×1
- 14092A14092-6002Not stockedCOVER×1
- HOOK×1
- 3215432154-7014Not stockedPIPE,BREATHER×1
- 32154A32154-7015Not stockedPIPE,BREATHER×1
- PIPEReplaced by 92043-0858×0
- COVER-CRANKCASE×1
- 4912049120-0844Not stockedCRANKCASE-COMP×1
- 5907159071-0733Not stockedJOINT×1
- 59071A59071-0733Not stockedJOINT×0
- PIN×1
- PIN,11X14X12.3×6
- BEARING-BALL,6308Replaced by 601A6308×1
- BEARING-BALL,A 15X32X9 6002×1
- SEAL-OIL,RVC2 6X11X10.2Replaced by 92049-0862×4
- SEAL-OIL,SO 8X14X5 HS×1
- SEAL-OIL,7X15X13×2
- SEAL-OIL,SD 40X54X9 R HS×1
- SEAL-OIL,SD 40X72X8 L VS×1
- 9206692066-0762Not stockedPLUG×4
- GASKET-LIQUID,TB1217H×AR
- GASKET-LIQUID,TB1217HReplaced by 92104-0007×0
- 9215392153-7043Not stockedBOLT,6X12×3
- 9217292172-0870Not stockedSCREW,4X8×2
- BOLT-FLANGED,6X30×8
- BOLT-FLANGED,6X16×2
- BOLT-FLANGED,10X40×11
- BOLT-FLANGED,10X65×10
- BOLT-STUD,8X22Replaced by 92004-0837×4
