FX850V-MS00 4 Stroke Engine FX850V

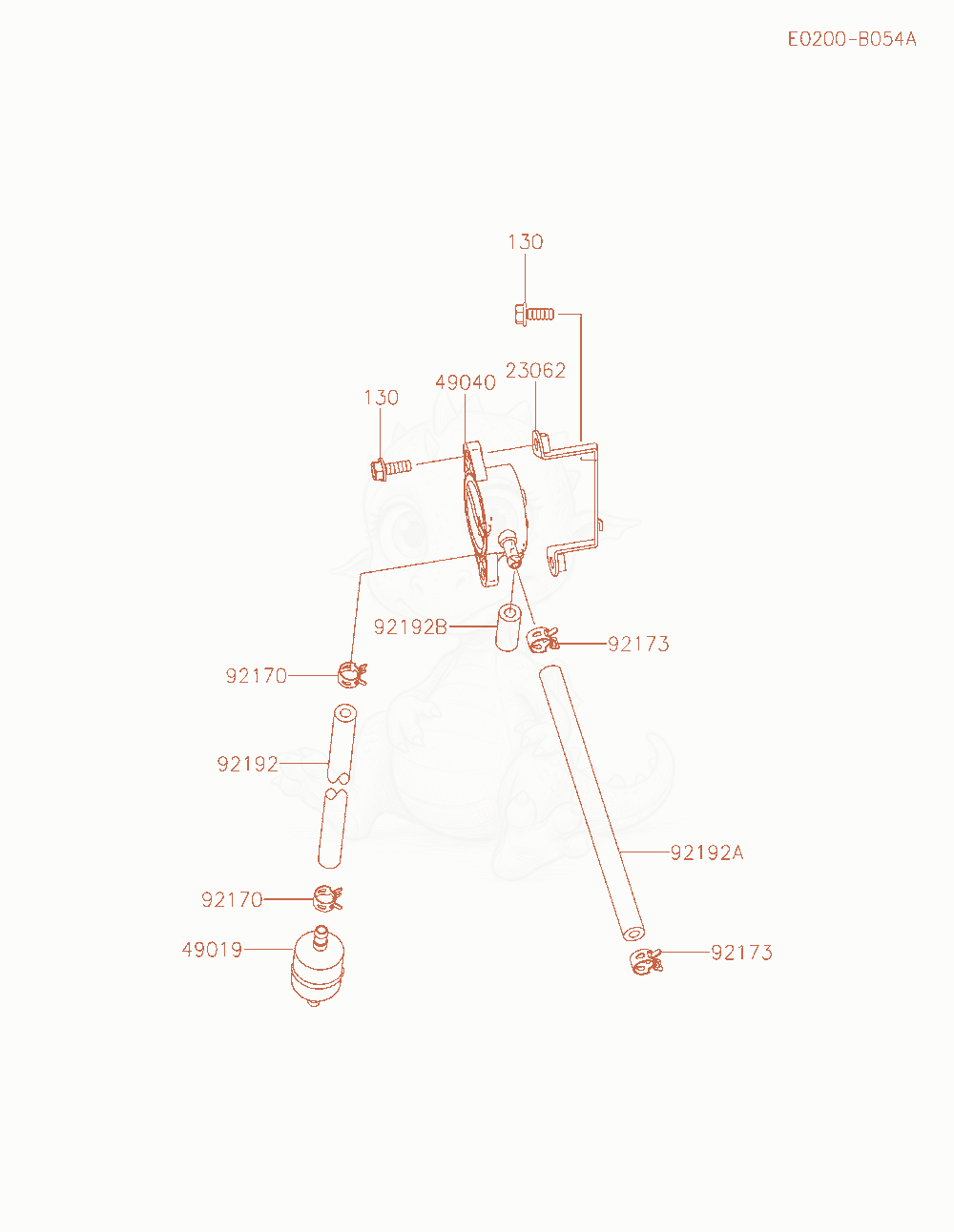

FX850V-MS00 Fuel-Tank / Fuel-Valve Diagram

Exploded parts diagram of the Fuel-Tank / Fuel-Valve of a Kawasaki FX850V-MS00 engine, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 2306223062-7018Not stocked
    BRACKET-COMP×1
  • 4901949019-0031
    $7.74
    FILTER-FUEL×1
  • 4904049040-0769
    $34.16
    PUMP-FUELReplaced by 49040-0801×1
  • 9217092170-2088
    $0.47
    CLAMPReplaced by 92173-1582×2
  • 9217392173-1582
    $3.00
    CLAMP,11.8MM×2
  • 9219292192-2385
    $3.71
    TUBE,6.35X12.7X140×1
  • 92192A92192-2389
    $4.24
    TUBE,6.35X12.7X195×1
  • 92192B92192-7088
    $0.92
    TUBE,6.4X12.7X28.5×1
  • 130130BA0616Not stocked
    BOLT-FLANGED,6X16×3
