FX850V-MS00 4 Stroke Engine FX850V

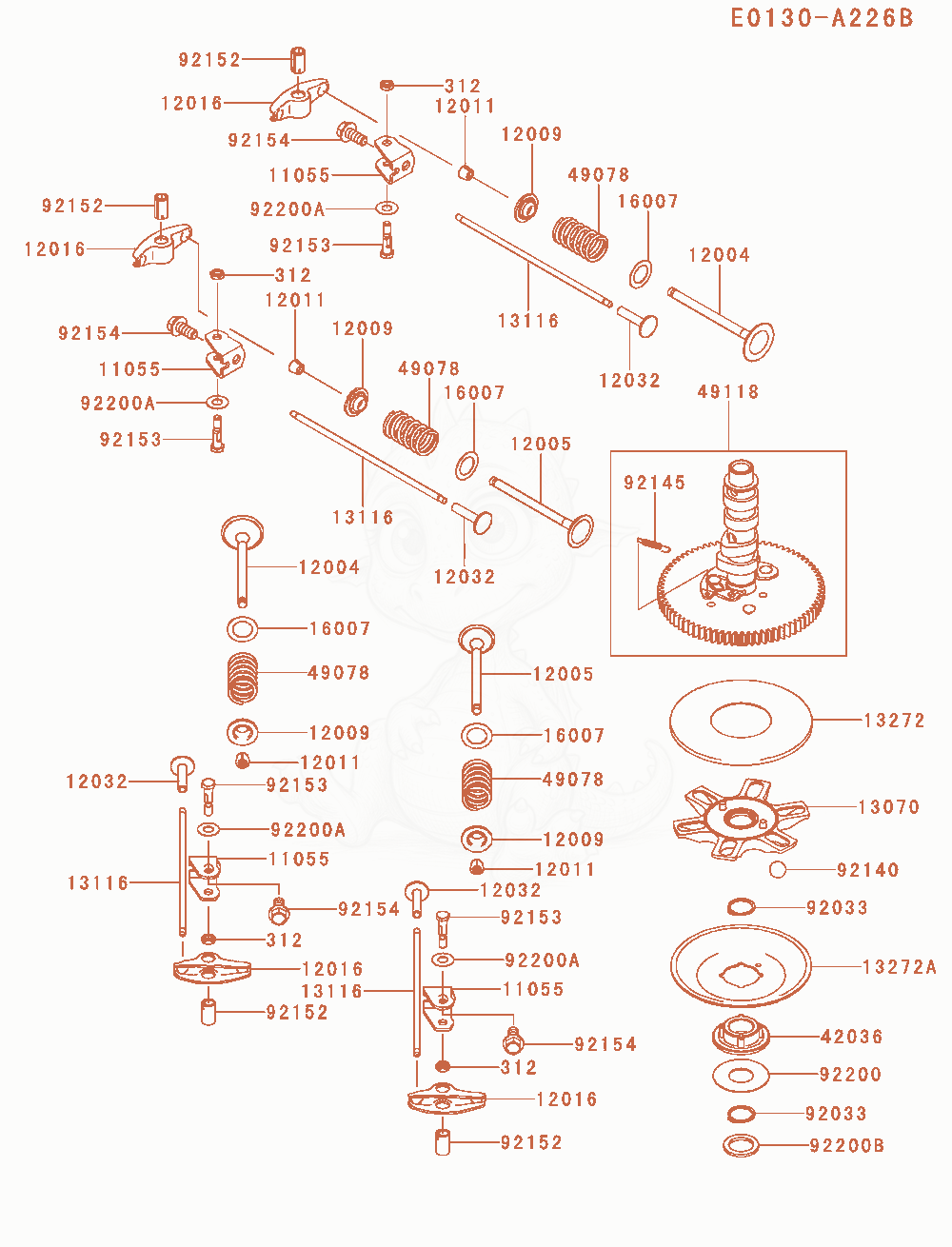

FX850V-MS00 Valve / Camshaft Diagram
- 1105511055-7009Not stockedBRACKET×4
- VALVE-INTAKE×2
- VALVE-EXHAUST×2
- RETAINER-VALVE SPRING×4
- COLLET×8
- ARM-ROCKER×4
- TAPPET×4
- 1307013070-0758Not stockedGUIDE×1
- ROD-PUSH×4
- PLATE×1
- PLATE,GOVERNOR×1
- SEAT-SPRING×4
- SLEEVE×1
- SPRING-ENGINE VALVE×4
- 4911849118-7026Not stockedCAMSHAFT-COMP×1
- RING-SNAPReplaced by 92033-0782×2
- BALLReplaced by 92140-0035×6
- SPRING×1
- COLLAR×4
- BOLT,6X29.5×4
- BOLT,8X18.2×4
- WASHER,20X46X0.91×1
- WASHER,8.1X18X0.5Replaced by 92200-2707×4
- WASHER,20.3X29X2.28Replaced by 92200-2508×1
- NUT-HEX,6MM×4
