FX850V-AS14 4 Stroke Engine FX850V

FX850V-AS14 Cooling-Equipment Diagram

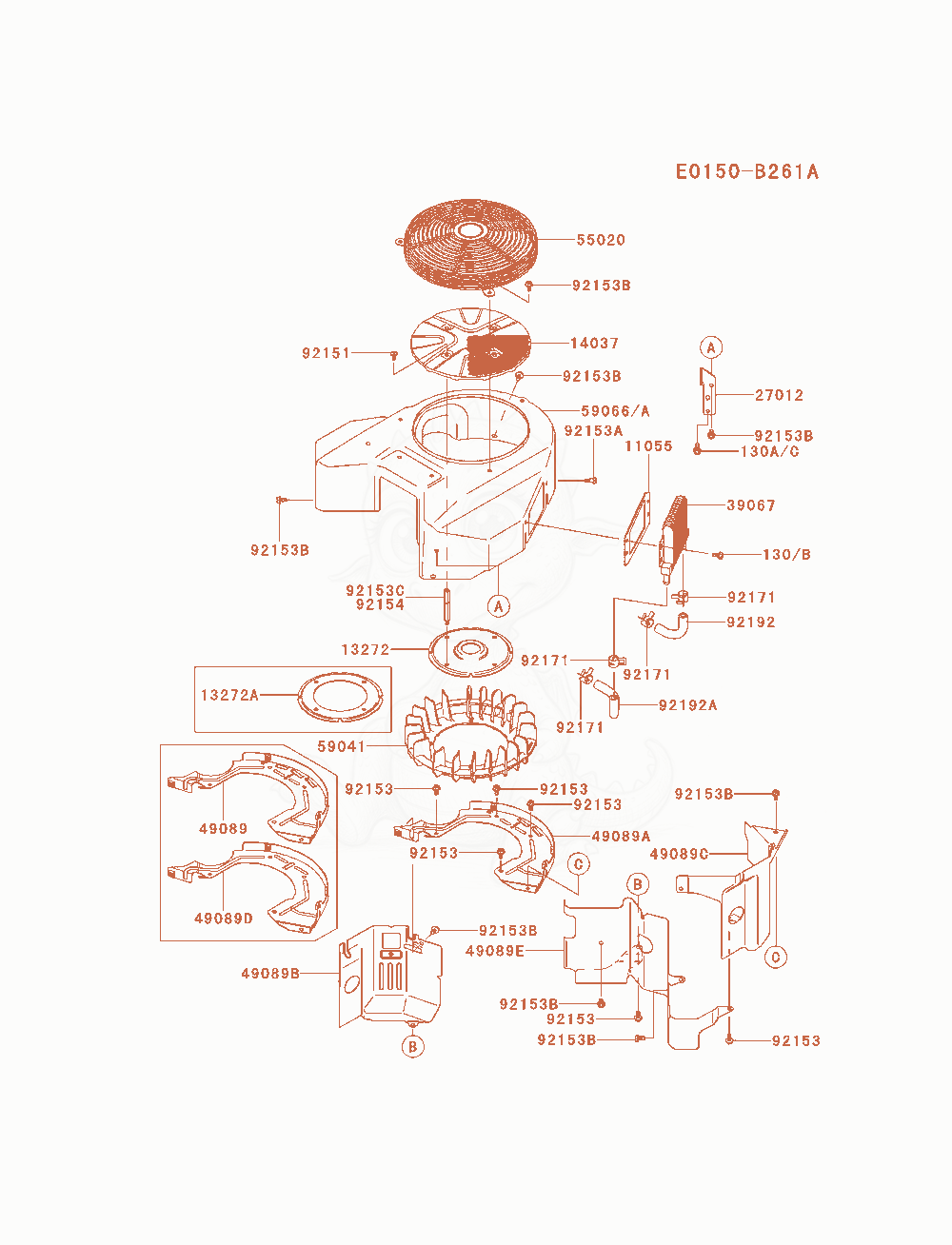

Exploded parts diagram of the Cooling-Equipment of a Kawasaki FX850V-AS14 engine, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 1105511056-7280Not stocked
    BRACKET×1
  • 1327213272-1486
    $8.98
    PLATE,FAN×1
  • 13272A13272-7006
    $9.56
    PLATE,FANReplaced by 13272-1488×0
  • 1403714037-7029-9H
    $21.11
    SCREENReplaced by 14037-0804×1
  • 2701227012-7009
    $1.62
    HOOK,LIFT×1
  • 3906739067-0018Not stocked
    COOLER-OIL×1
  • 4908949089-0866Not stocked
    SHROUD-ENGINE,BACK×0
  • 49089A49089-0866Not stocked
    SHROUD-ENGINE,BACK×1
  • 49089B49089-7064-753Not stocked
    SHROUD-ENGINE,#1×1
  • 49089C49089-7065-753
    $19.41
    SHROUD-ENGINE,#2Replaced by 49089-0904×1
  • 49089D49089-0866Not stocked
    SHROUD-ENGINE,BACK×0
  • 49089E49089-7067-753
    $24.17
    SHROUD-ENGINE,V-BANKReplaced by 49089-1176×1
  • 5502055020-7016-9H
    $46.46
    GUARD×1
  • 5904159041-7019
    $17.87
    FAN×1
  • 5906659066-0034-753
    $128.83
    HOUSING-FANReplaced by 59066-6007×1
  • 59066A59066-7042-753Not stocked
    HOUSING-FAN×0
  • 9215192151-7012Not stocked
    BOLT,6X12×4
  • 9215392153-0010
    $2.25
    BOLT,FLANGED,6X12×6
  • 92153A92153-7007
    $3.78
    BOLT,FLANGED,6X16×1
  • 92153B92153-7043Not stocked
    BOLT,6X12×10
  • 92153C92154-1151Not stocked
    BOLT×0
  • 9215492154-1151Not stocked
    BOLT×4
  • 9217192173-1619
    $3.34
    CLAMP×4
  • 9219292192-7089
    $5.02
    TUBE×1
  • 92192A92192-7090
    $6.70
    TUBE×1
  • 130130AA0616
    $0.45
    BOLT-FLANGED,6X16×0
  • 130A130AA0620
    $3.09
    BOLT-FLANGED,6X20×0
  • 130B130BA0616Not stocked
    BOLT-FLANGED,6X16×4
  • 130C130BA0620
    $1.59
    BOLT-FLANGED,6X20×1
