FX850V-AS14 4 Stroke Engine FX850V

FX850V-AS14 Fuel-Tank / Fuel-Valve Diagram

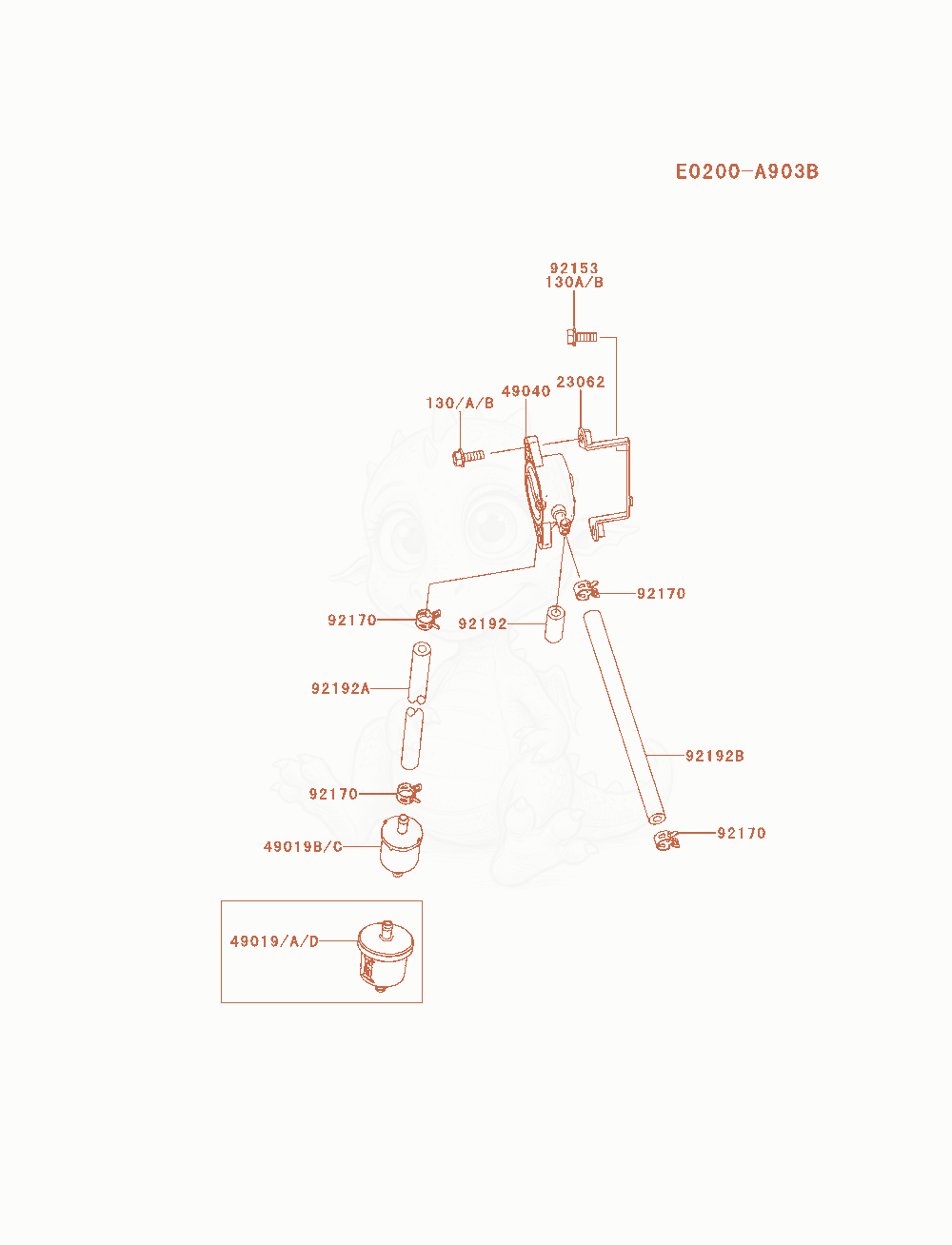

Exploded parts diagram of the Fuel-Tank / Fuel-Valve of a Kawasaki FX850V-AS14 engine, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 2306223062-7018Not stocked
    BRACKET-COMP×1
  • 4901949019-0027
    $8.39
    FILTER-FUELReplaced by 49019-0031×0
  • 49019A49019-0707
    $5.00
    FILTER-FUELReplaced by 49019-0031×0
  • 49019C49019-0027
    $8.39
    FILTER-FUELReplaced by 49019-0031×1
  • 49019D49019-7005
    $5.29
    FILTER-FUELReplaced by 49019-0031×0
  • 4904049040-7001
    $25.30
    PUMP-FUELReplaced by 49040-0801×1
  • 9215392153-7043Not stocked
    BOLT,6X12×0
  • 9217092170-2009
    $2.03
    CLAMPReplaced by 92173-1582×4
  • 9219292192-7088
    $0.92
    TUBE,6.4X12.7X28.5×1
  • 92192A92192-1547Not stocked
    TUBE,6.35X12.7X140×1
  • 92192B92192-2389
    $4.24
    TUBE,6.35X12.7X195×1
  • 130130AA0620
    $3.09
    BOLT-FLANGED,6X20×0
  • 130B130BA0616Not stocked
    BOLT-FLANGED,6X16×3
