FX850V-AS14 4 Stroke Engine FX850V

FX850V-AS14 Cylinder / Crankcase Diagram

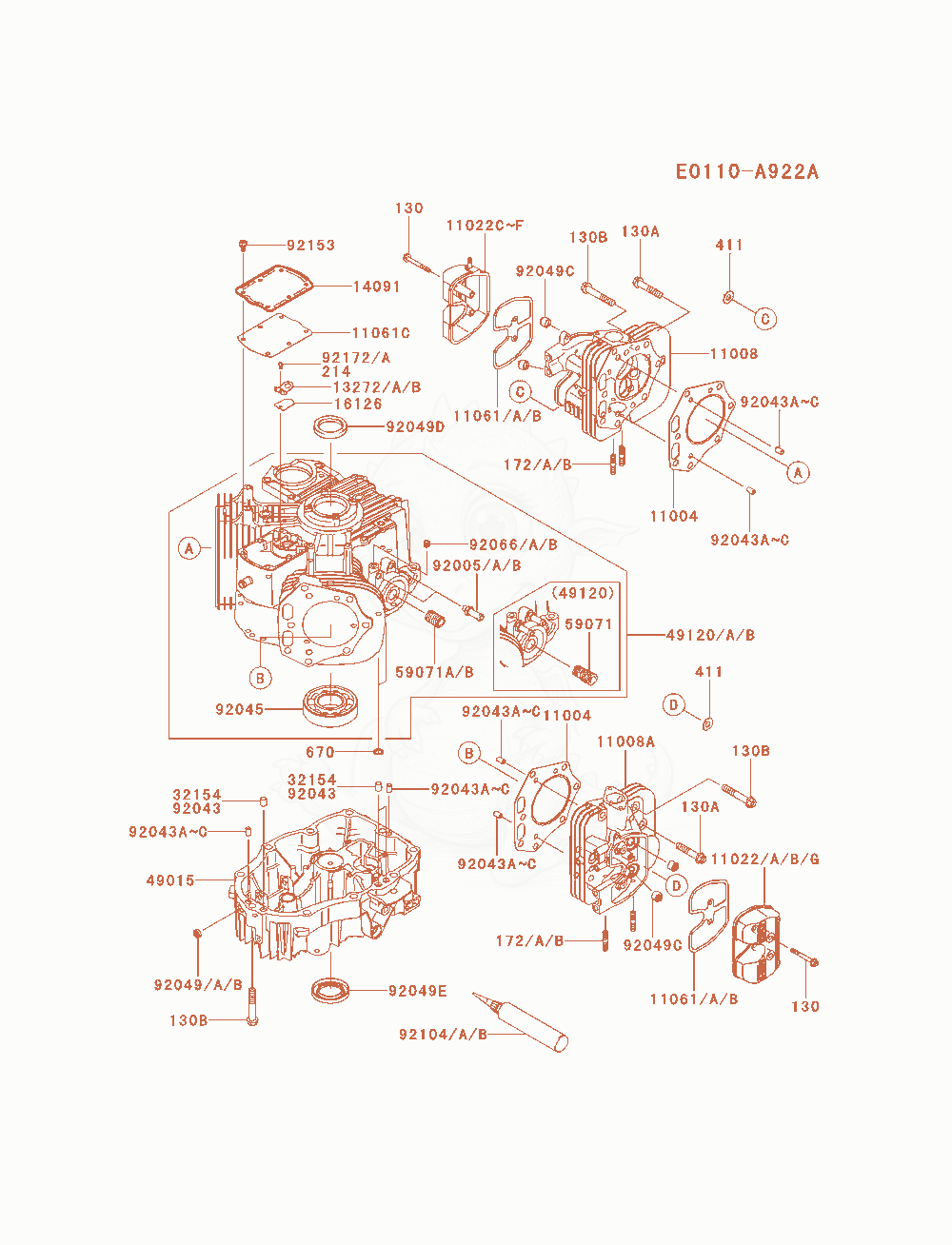

Exploded parts diagram of the Cylinder / Crankcase of a Kawasaki FX850V-AS14 engine, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 92049D92049-7024
    $5.76
    SEAL-OIL,SD 40X54X9 R HS×1
  • 92049E92049-7026
    $8.47
    SEAL-OIL,SD 40X62X8 L VS×1
  • 92066A92066-0762Not stocked
    PLUG×1
  • 92066B92066-7026Not stocked
    PLUG×0
  • 92104A92104-0007
    $45.07
    GASKET-LIQUID,TB1217H×AR
  • 92104B92104-7001
    $45.03
    GASKET-LIQUID,TB1217HReplaced by 92104-0007×0
  • 9215392153-7043Not stocked
    BOLT,6X12×6
  • 92172A92172-0870
    $0.26
    SCREW,4X8Replaced by 92172-1731×1
  • 130130BA0650
    $1.01
    BOLT-FLANGED,6X50×4
  • 130A130CA1050
    $3.85
    BOLT-FLANGED,10X50×2
  • 130B130CA1060
    $3.80
    BOLT-FLANGED,10X60×20
  • 172172BA0818
    $1.74
    BOLT-STUD,8X18×0
  • 172B172BA0822
    $2.12
    BOLT-STUD,8X22Replaced by 92004-0837×4
  • 214214AA0408
    $4.13
    SCREW-PAN+-,4X8×0
  • 411411AA1000
    $0.82
    WASHER-PLAIN,10MM×2
  • 670670B2011
    $5.21
    O RING,11MM×2
