FX850V-AR38 4 Stroke Engine FX850V

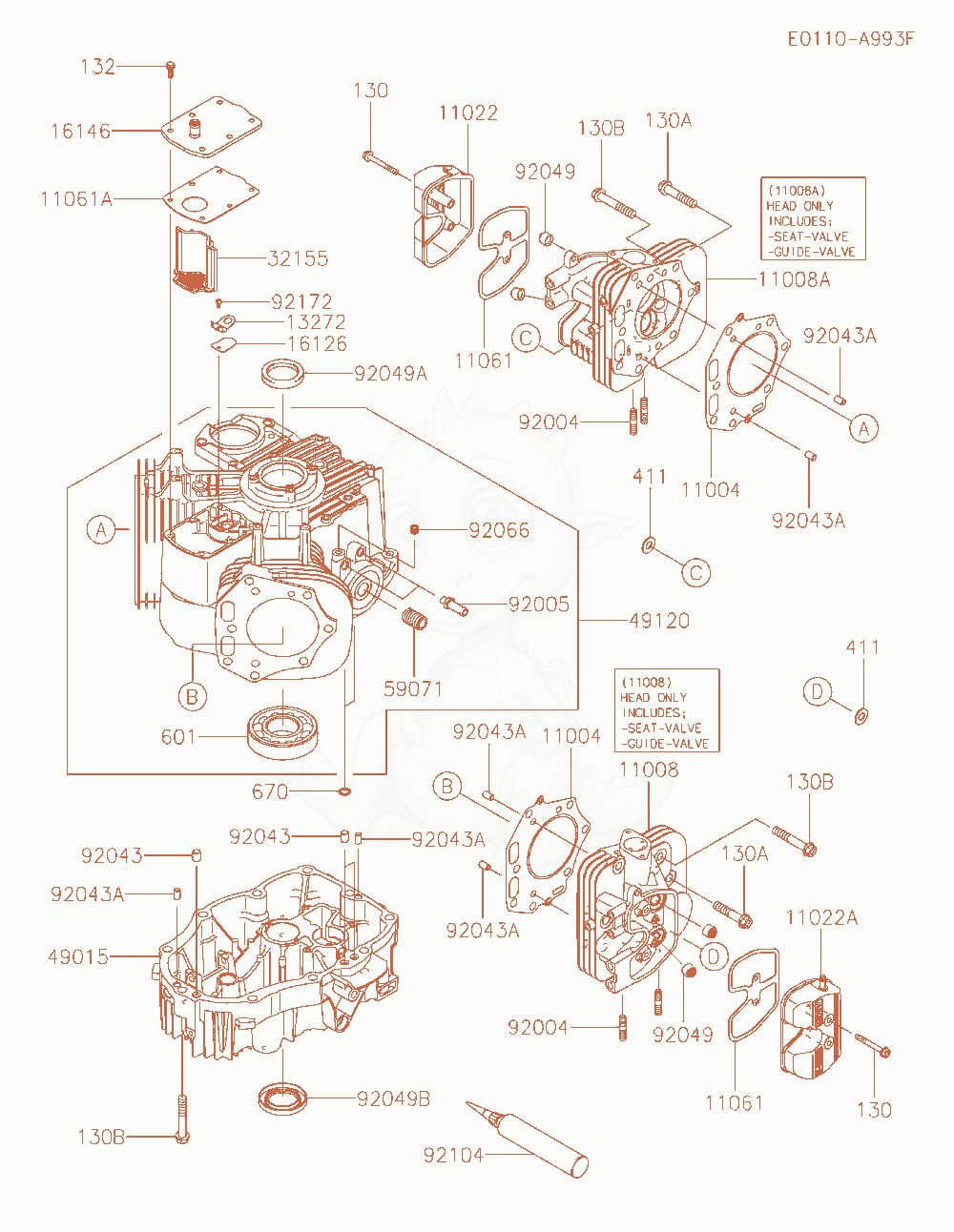

FX850V-AR38 Cylinder / Crankcase Diagram
- GASKET-HEAD×2
- HEAD-COMP-CYLINDER,#2×1
- HEAD-COMP-CYLINDER,#1×1
- CASE-ROCKER×1
- CASE-ROCKER×1
- GASKET,CASE-ROCKER×2
- GASKET,BREATHER×1
- PLATE×1
- VALVE,BREATHER×1
- COVER-ASSY,BREATHER×1
- 3215532155-2587Not stockedPIPE,BREATHER×1
- COVER-CRANKCASE×1
- CRANKCASE-COMP×1
- JOINT,OIL FILTER×1
- 9200492004-0823Not stockedSTUD,8X22×4
- FITTING×2
- PIN×3
- PIN,6.2X8X14×6
- SEAL-OIL,7X15X13×4
- SEAL-OIL,SD 40X54X9 R HS×1
- SEAL-OIL,SD 40X62X8 L VS×1
- PLUG×1
- GASKET-LIQUID,TB1217H×AR
- SCREW,4X8Replaced by 92172-1731×1
- BOLT-FLANGED,6X50×4
- BOLT-FLANGED,10X50×2
- BOLT-FLANGED,10X60×20
- 132132BA0616Not stockedBOLT-FLANGED-SMALL,6X16×6
- WASHER-PLAIN,10MM×2
- BEARING-BALL,6308Replaced by 601A6308×1
- O RING,11MM×2
