FX850V-AR36 4 Stroke Engine FX850V

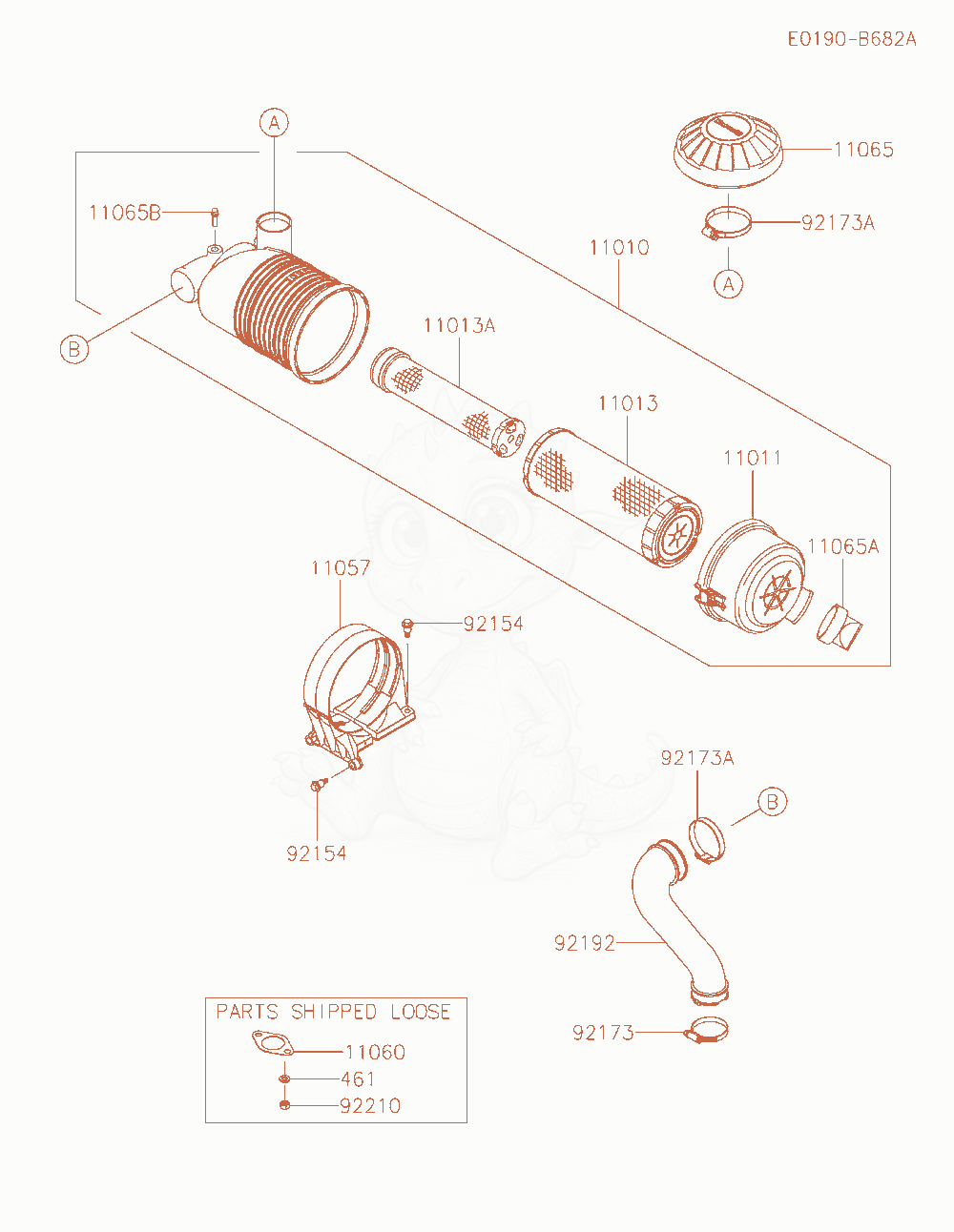

FX850V-AR36 Air-Filter / Muffler Diagram
- FILTER-ASSY-AIR×1
- CASE-AIR FILTER×1
- ELEMENT-AIR FILTER×1
- ELEMENT-AIR FILTER×1
- BRACKET,A/C BAND×1
- GASKET,MUFFLER×2
- CAP,RAIN×1
- CAP×1
- CAP×1
- BOLT×4
- CLAMP×1
- CLAMP×2
- TUBE,A/C×1
- NUT,M8×4
- WASHER-SPRING,8MM×4
