FX850V-AR36 4 Stroke Engine FX850V

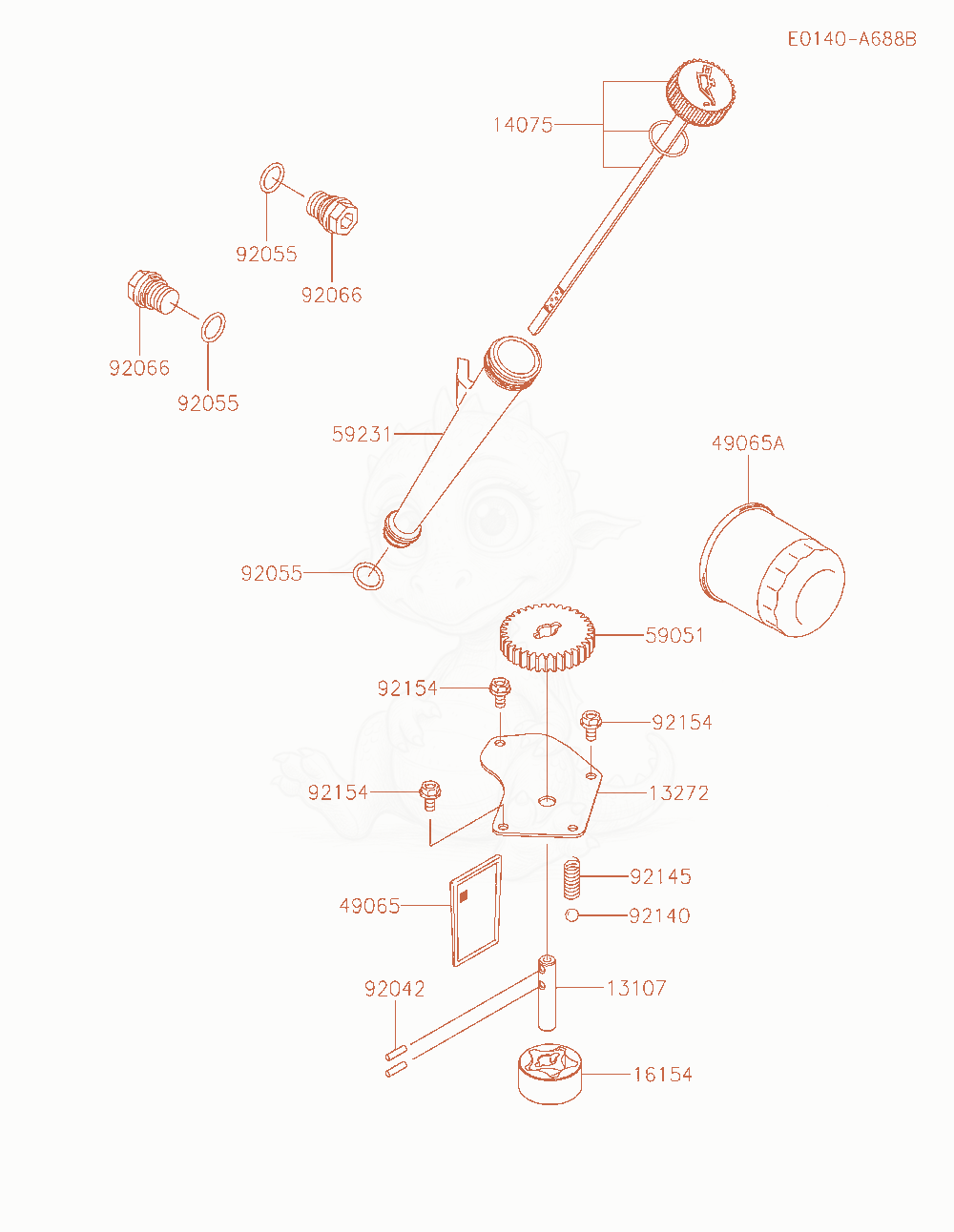

FX850V-AR36 Lubrication-Equipment Diagram
- SHAFT,OIL PUMPReplaced by 13107-1553×1
- PLATE,OIL PUMP×1
- 1407514075-0049Not stockedCAP-ASSY×1
- ROTOR-PUMP×1
- FILTER-OIL×1
- 49065A49065-0724Not stockedFILTER-OIL×1
- GEAR-SPUR×1
- FILLERReplaced by 59231-0791×1
- PIN,DOWEL,4X15.8×2
- RING-O,15.8X2.4×3
- PLUG×2
- BALL,STEEL,13/32Replaced by 92140-0029×1
- SPRING,OIL RELIEF×1
- BOLT,6X12×3
