FX481V-AS04 4 Stroke Engine FX481V

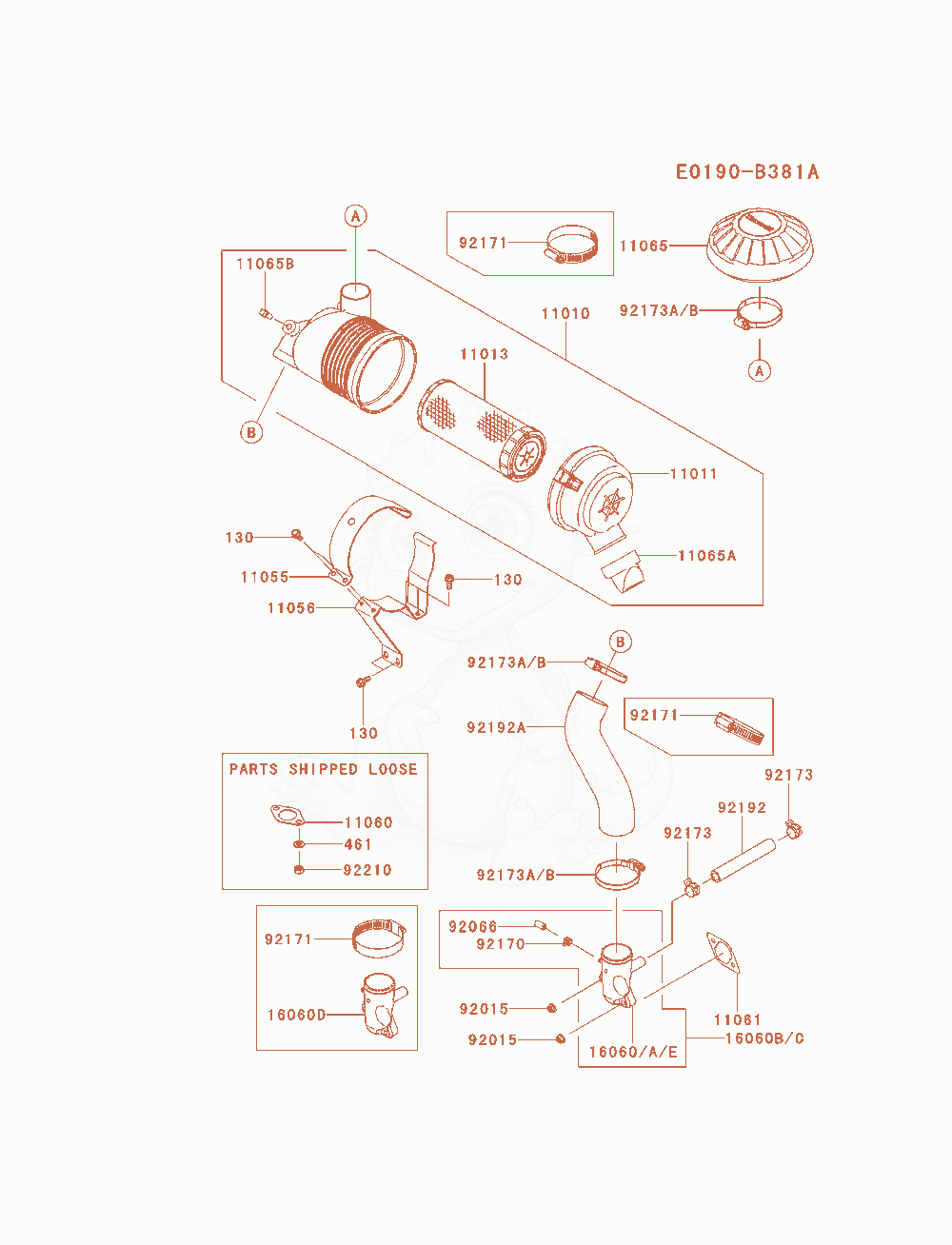

FX481V-AS04 Air-Filter / Muffler Diagram
- FILTER-ASSY-AIR×1
- CASE-AIR FILTER×1
- ELEMENT-AIR FILTER×1
- 1105511055-7024-9HNot stockedBRACKET×1
- BRACKETReplaced by 11058-2136×1
- GASKET,MUFFLER×2
- GASKET-AIR FILTER×1
- CAPReplaced by 11065-1392×1
- CAP×1
- CAP×1
- 16060D16060-7036Not stockedPIPE-INTAKE×1
- NUT,FLANGED,6MM×2
- 9217192171-7010Not stockedCLAMP×0
- CLAMP×2
- CLAMP×3
- TUBE,12.6X18.6X118×1
- TUBE,A/CReplaced by 92192-2624×1
- NUT,M8×4
- BOLT-FLANGED,6X16×6
- WASHER-SPRING,8MM×4
