FX481V-AS04 4 Stroke Engine FX481V

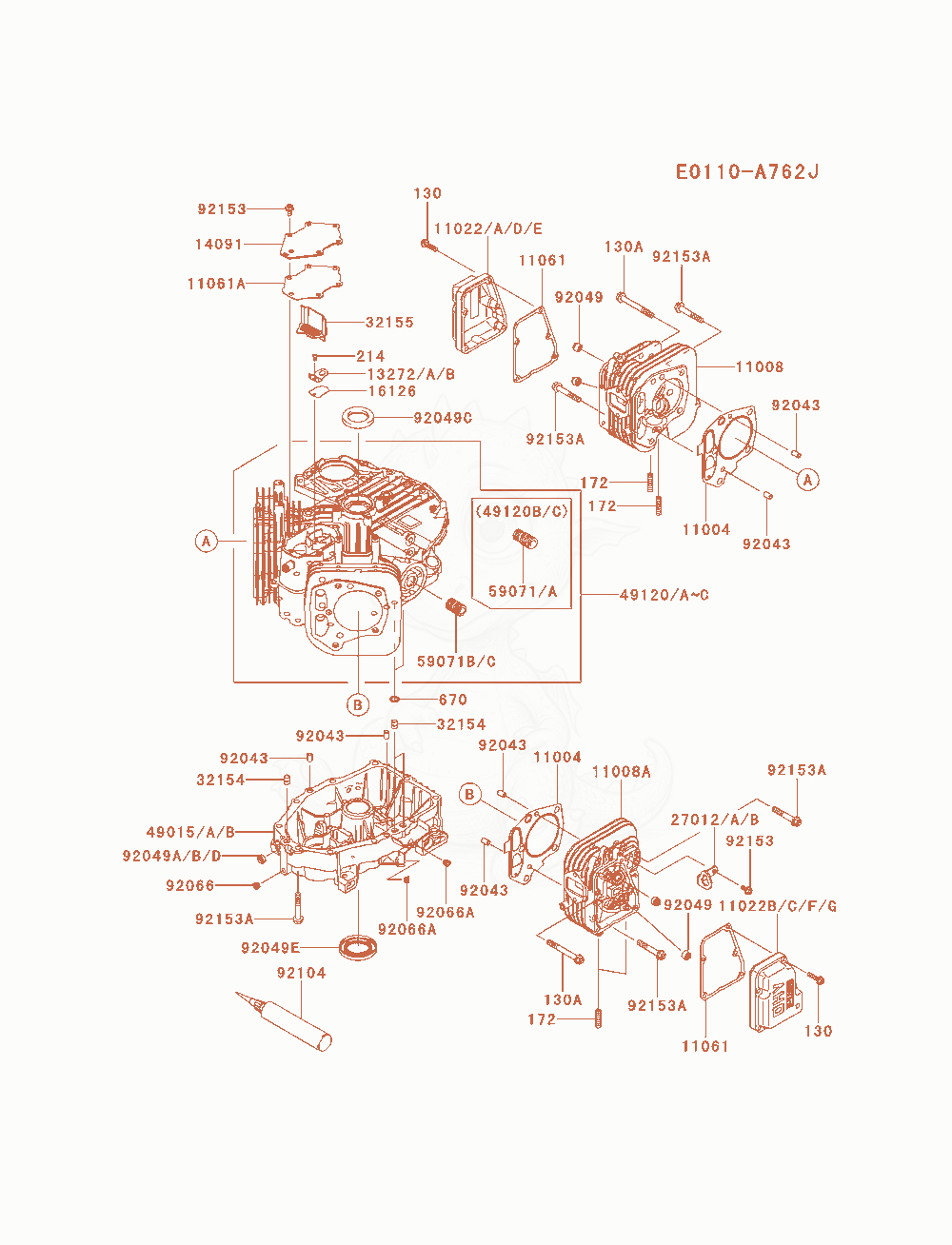

FX481V-AS04 Cylinder / Crankcase Diagram
- GASKET-HEAD×2
- HEAD-COMP-CYLINDER,#1Replaced by 11008-1579×1
- HEAD-COMP-CYLINDER,#2Replaced by 11008-1580×1
- CASE-ROCKER,#1×1
- CASE-ROCKER,#2×1
- GASKET,CASE-ROCKERReplaced by 11061-1285×2
- GASKET,BREATHER×1
- PLATE,BREATHERReplaced by 13272-3997×1
- COVER,BREATHER×1
- VALVE,BREATHER×1
- HOOK,LIFT×1
- HOOK,LIFTReplaced by 27012-0721×0
- PIPEReplaced by 92043-0858×3
- 3215532155-7003Not stockedPIPE,BREATHER×1
- 4901549015-7083Not stockedCOVER-CRANKCASE×0
- 49015B49015-7104Not stockedCOVER-CRANKCASE×1
- 49120B49120-7135Not stockedCRANKCASE-COMP×1
- JOINT×1
- PIN,6.2X8X14×6
- SEAL-OIL,RVC2 6X11X10.2Replaced by 92049-0862×4
