FX481V-AS04 4 Stroke Engine FX481V

FX481V-AS04 Lubrication-Equipment Diagram

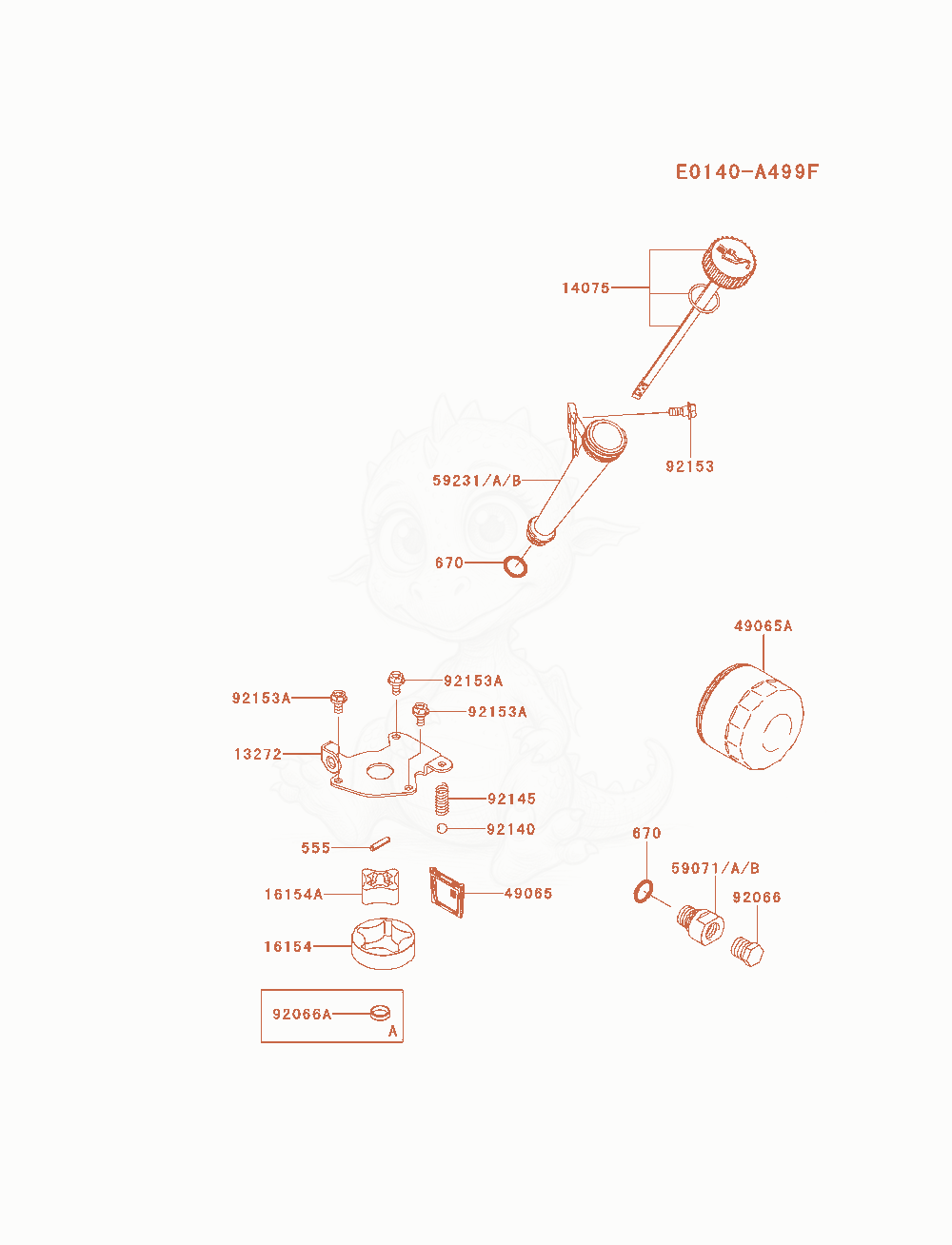

Exploded parts diagram of the Lubrication-Equipment of a Kawasaki FX481V-AS04 engine, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 1327213272-7011Price
    PLATE,ROTORReplaced by 13272-4000×1
  • 1407514075-7013Not stocked
    CAP-ASSY,OIL GAUGE×1
  • 1615416154-7010Price
    ROTOR-PUMP,OUTER×1
  • 16154A16154-7011Price
    ROTOR-PUMP,INNER×1
  • 4906549065-7006Price
    FILTER-OILReplaced by 49065-0720×1
  • 49065A490650721BKNot stocked
    FILTER-OIL×1
  • 5907159071-7023Price
    JOINT×0
  • 59071B59071-7023Price
    JOINT×1
  • 59231A59231-7016Not stocked
    FILLER×1
  • 9206692066-0827Not stocked
    PLUG×1
  • 92066A92066-7028Price
    PLUG×1
  • 9214092140-7003Price
    BALL,STEEL,13/32Replaced by 92140-0029×1
  • 9214592145-7002Not stocked
    SPRING×1
  • 9215392153-7007Price
    BOLT,FLANGED,6X16×1
  • 92153A92153-7043Not stocked
    BOLT,6X12×3
  • 555555A0420Price
    PIN-SPRING,4X20×1
  • 670670D2016Price
    O RING,16MM×2
