FR730V-GS14 4 Stroke Engine FR730V

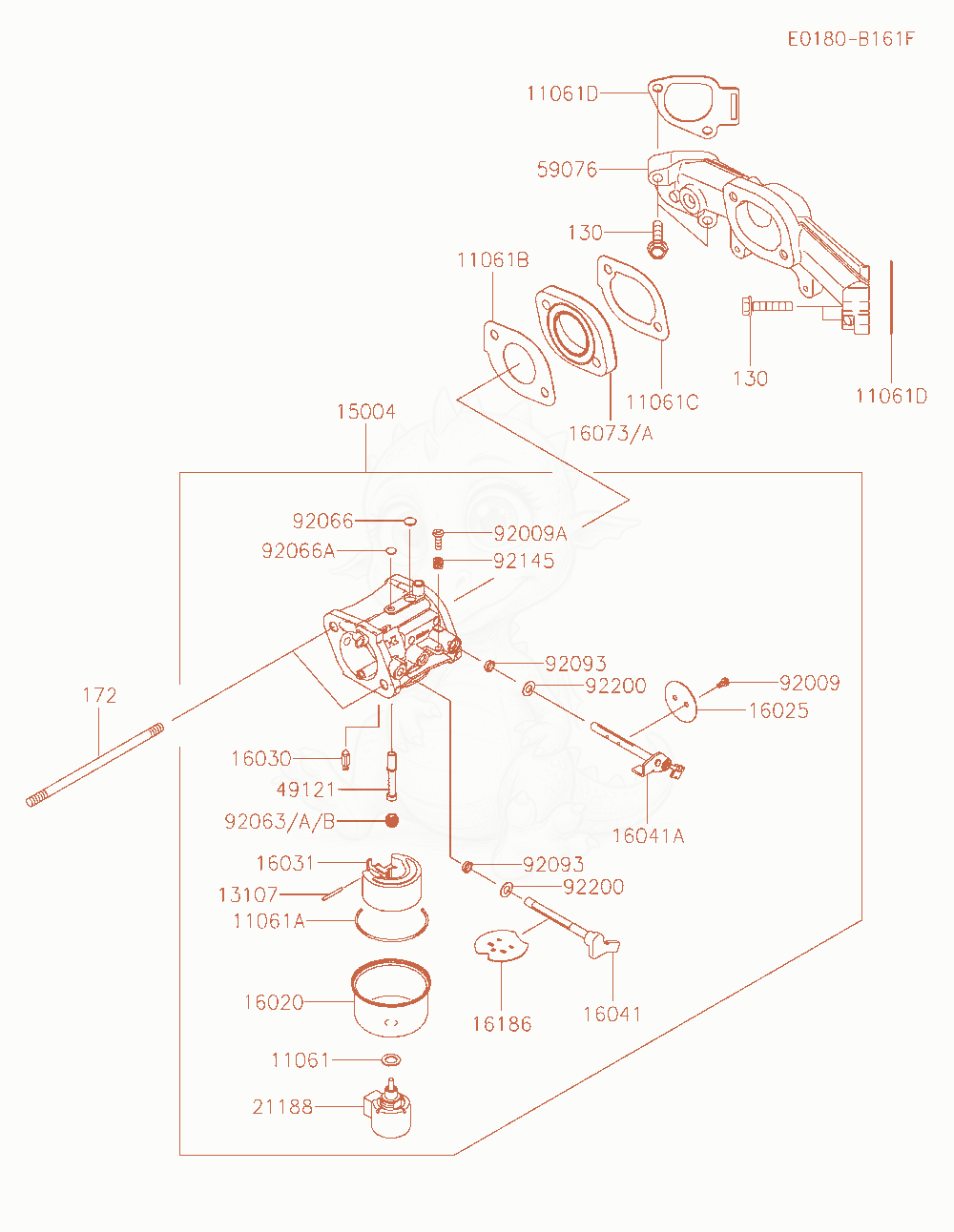

FR730V-GS14 Carburetor Diagram
- GASKET,SCREW×1
- GASKET,CHAMBER×1
- GASKET,INSULATOR×1
- GASKET,INSULATOR/MANIFOLD×1
- GASKET,MANIFOLD×2
- SHAFT×1
- CARBURETOR-ASSY×1
- CHAMBER-FLOAT×1
- VALVE-THROTTLE×1
- VALVE-FLOAT×1
- FLOAT×1
- SHAFT-CARBURETOR,CHOKE×1
- SHAFT-CARBURETOR,THROTTLE×1
- INSULATOR×1
- VALVE-ASSY-CHOKE×1
- SOLENOID×1
- NOZZLE-MAIN×1
- MANIFOLD-INTAKE×1
- SCREW×2
- SCREW×1
- JET-MAIN,#122, 3,281 to 6,560FT ELEVATION×1
- JET-MAIN,#124, SEA-LEVEL TO 3,280FT ELEVATION×1
- JET-MAIN,#120, ABOVE 6,560FT ELEVATION×1
- PLUG×1
- PLUG×1
- SEAL×2
- SPRING×1
- WASHER×2
- BOLT-FLANGED,6X30×4
- BOLT-STUD,6X120×2
