FR730V-GS14 4 Stroke Engine FR730V

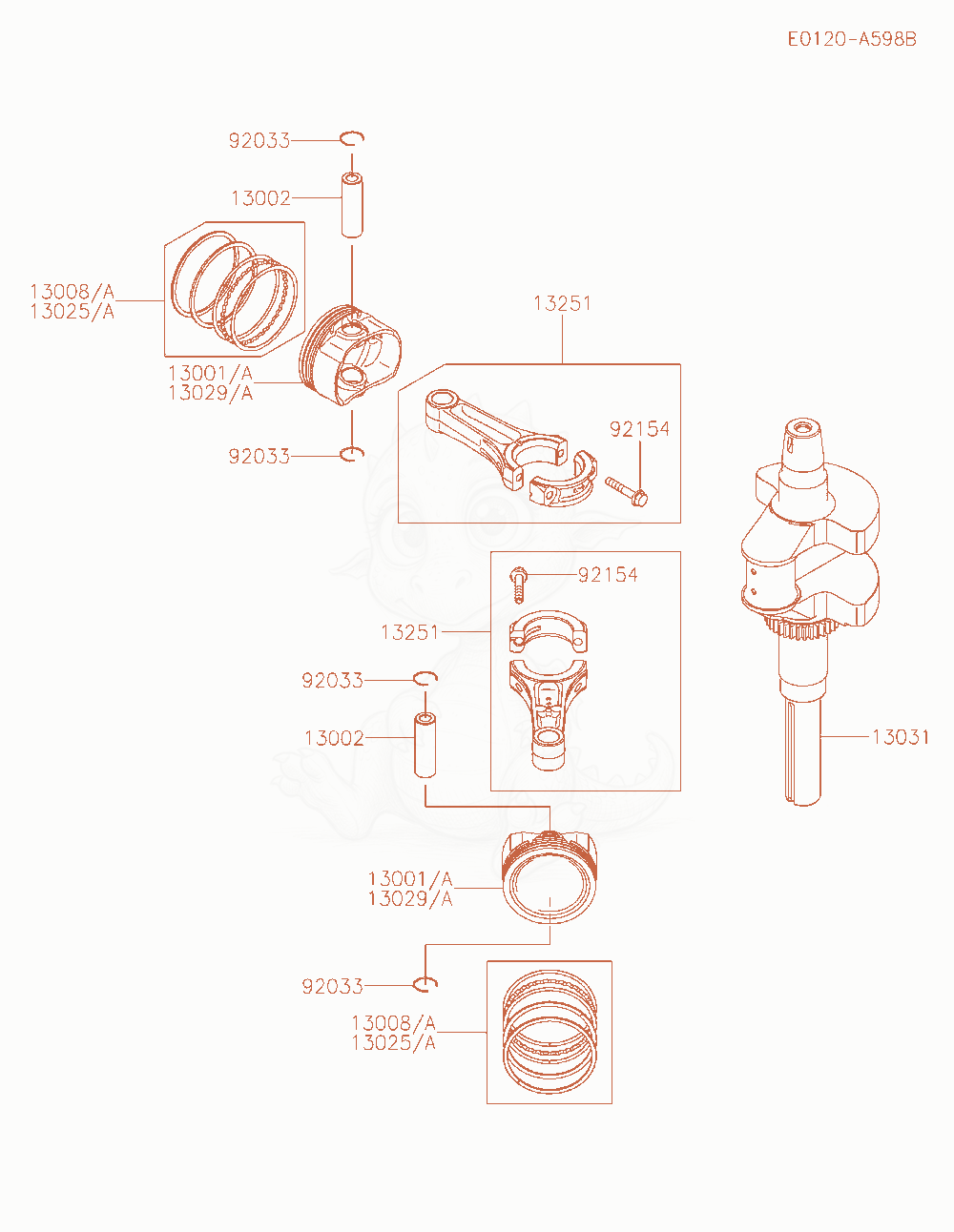

FR730V-GS14 Piston / Crankshaft Diagram

Exploded parts diagram of the Piston / Crankshaft of a Kawasaki FR730V-GS14 engine, with numbered balloons — Hover a box for the part, its price and its row below. Click it to select.

1300113001-0835
$60.69
PISTON-ENGINE×2
1300213002-0704
$13.41
PIN-PISTON×2
13008A13008-0600
$31.90
RING-SET-PISTON×2
1302513025-0020
$41.03
RING-SET-PISTON L,0.5 A×AR
1302913029-0045
$71.69
PISTON-ENGINE L,0.5 A×AR
1303113031-0823
$254.49
CRANKSHAFT-COMP×1
1325113251-0719
$48.97
ROD-ASSY-CONNECTING×2
9203392033-0790
$0.68
RING-SNAP×4
9215492154-2842
$1.27
BOLT,6X35×4
