FR730V-GS14 4 Stroke Engine FR730V

FR730V-GS14 Electric-Equipment Diagram

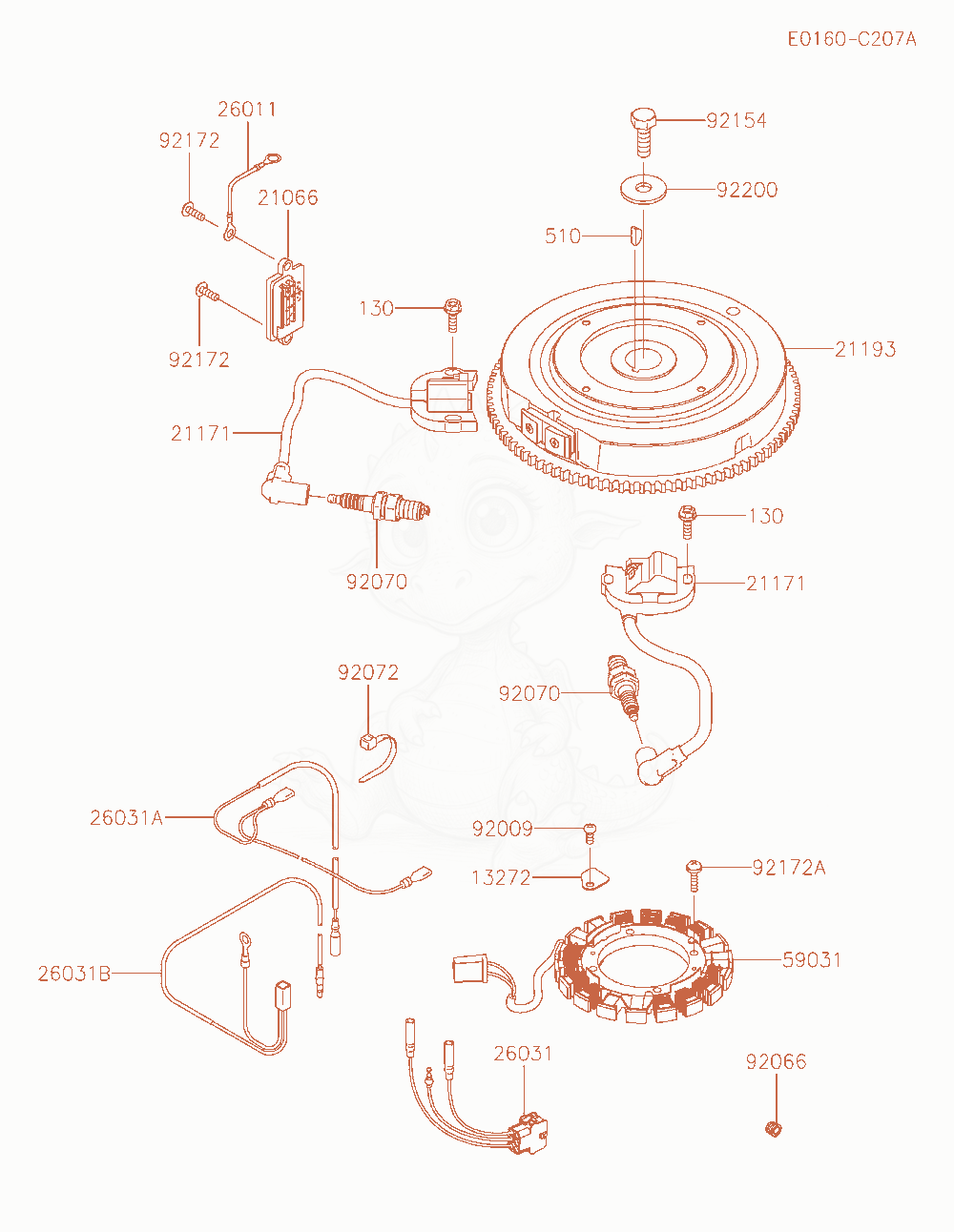

Exploded parts diagram of the Electric-Equipment of a Kawasaki FR730V-GS14 engine, with numbered balloons — Hover a box for the part, its price and its row below. Click it to select.

1327213272-7012
$1.31
PLATE×1
2106621066-7017
$45.85
REGULATOR-VOLTAGE×1
2117121171-0740
$72.03
COIL-ASSY-IGNITION×2
2119321193-0719
$241.17
FLYWHEEL-ASSY×1
2601126011-2234
$2.31
WIRE-LEAD×1
2603126031-1624
$19.69
HARNESS×1
26031A26031-7040
$5.20
HARNESS×1
26031B26031-7041
$7.49
HARNESS×1
5903159031-7017
$112.81
COIL-CHARGING×1
9200992009-2308
$0.32
SCREW×1
9206692066-0881
$3.71
PLUG×1
92070BPR4ES
$4.98
PLUG-SPARK,BPR4ES(NGK×2
9207292072-0911
$1.07
BAND×4
9215492154-7003
$4.36
BOLT,12X30×1
9217292172-1608
$2.23
SCREW,5X16×2
92172A92172-7018
$0.30
SCREW,5X20×4
9220092200-2535
$2.33
WASHER×1
130130BA0620
$1.59
BOLT-FLANGED,6X20×4
510510A5100
$2.96
KEY-WOODRUFF×1
