FH770D-DS05 4 Stroke Engine FH770D

FH770D-DS05 Cylinder / Crankcase Diagram

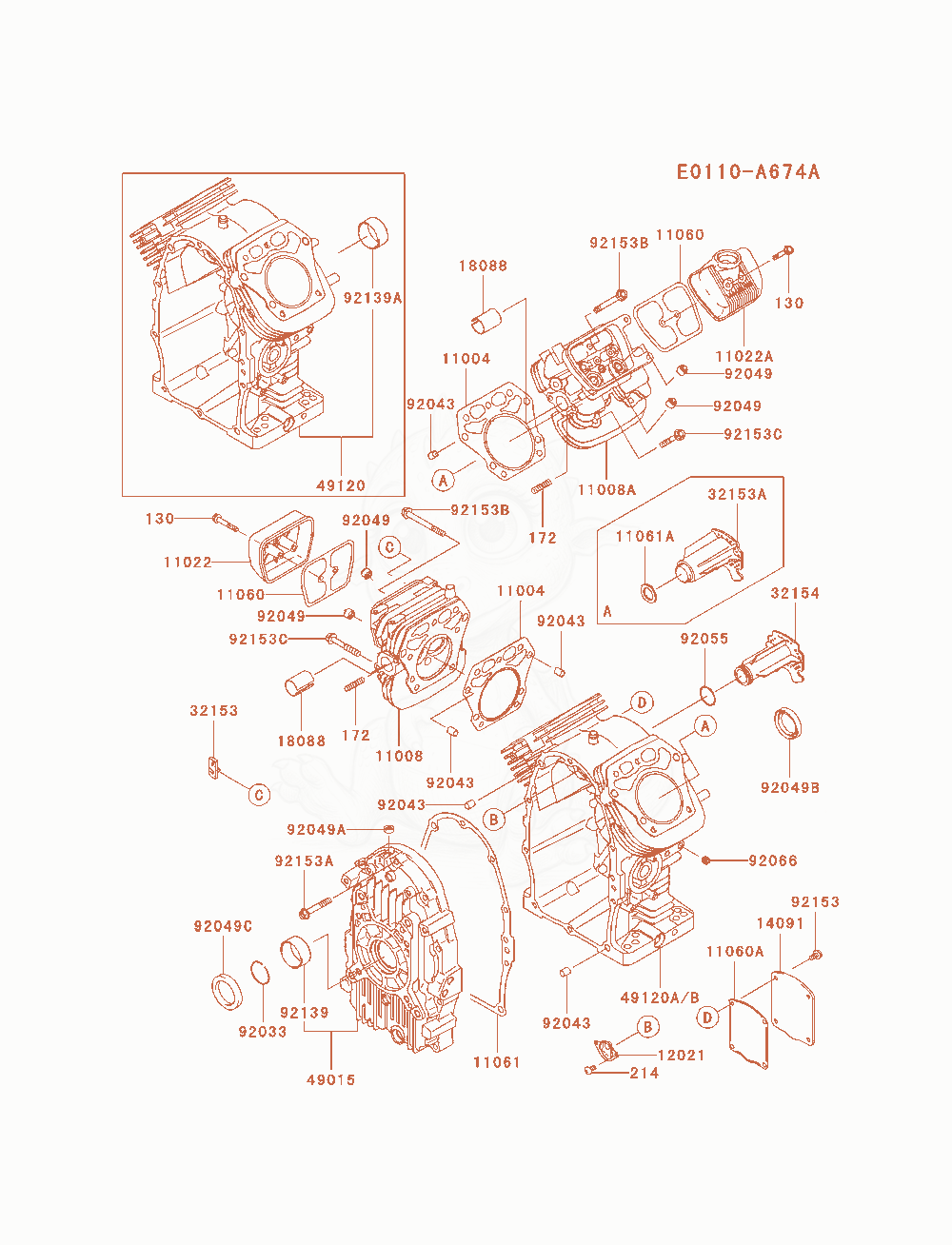

Exploded parts diagram of the Cylinder / Crankcase of a Kawasaki FH770D-DS05 engine, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 1100411004-7021
    $9.84
    GASKET-HEAD×2
  • 1100811008-7030
    $256.76
    HEAD-COMP-CYLINDER,#1×1
  • 11008A11008-7031
    $257.20
    HEAD-COMP-CYLINDER,#2×1
  • 1102211022-0728
    $13.42
    CASE-ROCKER×1
  • 11022A11022-7004Not stocked
    CASE-ROCKER×1
  • 1106011060-7013
    $10.26
    GASKET,ROCKER CASE×2
  • 11060A11060-7014
    $5.50
    GASKET,BREATHER×1
  • 1106111061-7047Not stocked
    GASKET,CRANKCASE×1
  • 1202112021-7002
    $4.28
    VALVE-ASSY-REED×1
  • 1409114091-7004
    $3.21
    COVER×1
  • 1808818088-7003
    $5.60
    PIPE-EXHAUST×2
  • 3215332153-7003
    $1.79
    PIPE×1
  • 3215432154-7021
    $14.72
    PIPEReplaced by 32155-4082×1
  • 4901549015-7086
    $161.89
    COVER-CRANKCASEReplaced by 49015-0733×1
  • 49120A49120-7103
    $563.15
    CRANKCASE-COMP×1
  • 9203392033-7004
    $0.85
    RING-SNAP×1
  • 9204392043-7001
    $0.51
    PIN×6
  • 9204992049-7001
    $7.19
    SEAL-OIL,RVC2 6X11X10.2Replaced by 92049-0862×4
  • 92049A92049-7005Not stocked
    SEAL-OIL,SO 8X14X5 HS×1
  • 92049B92049-7010
    $5.54
    SEAL-OIL,SD 35X48X8 R HS×1
  • 92049C92049-7022
    $4.65
    SEAL-OIL,SD-40-55-8-L-HS×1
  • 9205592055-7022
    $0.92
    RING-O,25X30.2X2.62×1
  • 9206692066-7026Not stocked
    PLUG×1
  • 9213992139-7009Not stocked
    BUSHING×1
  • 9215392153-7043Not stocked
    BOLT,6X12×4
  • 92153A92153-7073
    $2.30
    BOLT,8X50×10
  • 92153B92153-7074
    $2.21
    BOLT,8X75×2
  • 92153C92153-7083
    $2.24
    BOLT,8X55×8
  • 130130AA0640
    $0.69
    BOLT-FLANGED,6X40×4
  • 172172BA0818
    $1.74
    BOLT-STUD,8X18×4
  • 214214AA0408
    $4.13
    SCREW-PAN+-,4X8×2
