FH770D-DS05 4 Stroke Engine FH770D

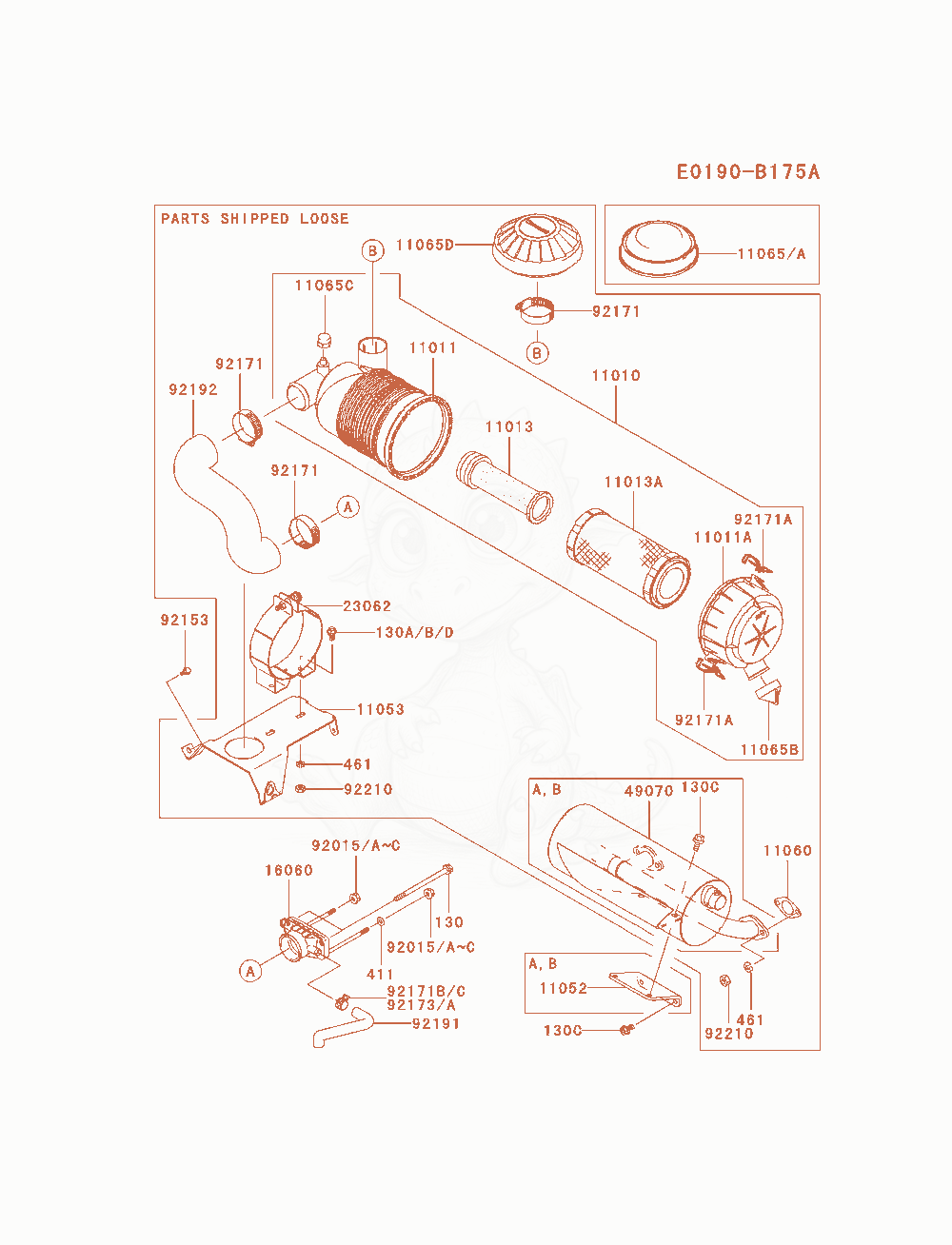

FH770D-DS05 Air-Filter / Muffler Diagram
- 1101011010-7032Not stockedFILTER-ASSY-AIR×1
- CASE-AIR FILTER×1
- CASE-AIR FILTER×1
- ELEMENT-AIR FILTER×1
- ELEMENT-AIR FILTER×1
- 1105311057-0415Not stockedBRACKET,A/C CASE×1
- GASKET,MUFFLER×2
- CAPReplaced by 11065-1384×0
- CAP×1
- CAP×1
- CAPReplaced by 11065-1384×1
- PIPE-INTAKEReplaced by 16060-0766×1
- BRACKET-COMP×1
- NUT,FLANGED,6MM×2
- 9215392153-7043Not stockedBOLT,6X12×2
- CLAMP×3
- CLAMP×2
- CLAMP×1
- TUBE,BREATHER×1
- TUBE×1
- NUT,M8×6
- BOLT-FLANGED,6X105×2
- 130A130AA0814Not stockedBOLT-FLANGED,8X14×2
- BOLT-FLANGED,8X16×2
- WASHER-PLAIN,6MM×1
- WASHER-SPRING,8MM×6
