FH770D-DS05 4 Stroke Engine FH770D

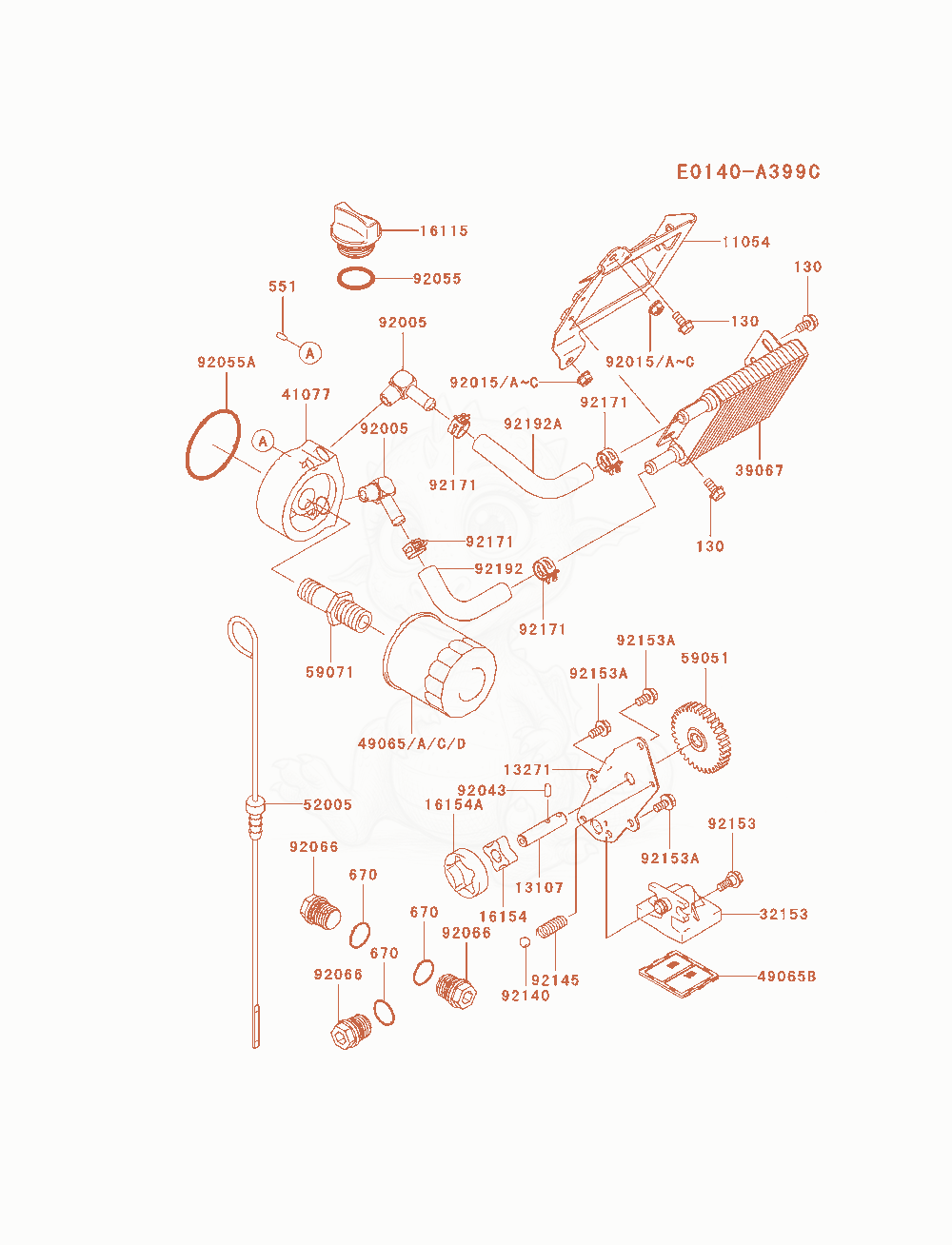

FH770D-DS05 Lubrication-Equipment Diagram
- 1105411054-7001Not stockedBRACKET×1
- 1310713107-0749Not stockedSHAFT×1
- PLATE×1
- CAP-OIL FILLERReplaced by 16115-0045×1
- ROTOR-PUMP,IN×1
- ROTOR-PUMP,OUT×1
- PIPEReplaced by 32156-0518×1
- COOLER-OIL×1
- ADAPTERReplaced by 41077-0760×1
- FILTER-OIL×1
- FILTER-OILReplaced by 49065-0734×1
- GAUGE×1
- GEAR-SPUR×1
- JOINTReplaced by 59071-0811×1
- FITTING×2
- NUT,FLANGED,6MM×2
- 9204392043-7003Not stockedPIN×2
- RING-O×1
- RING-O×1
- 9206692066-7003Not stockedPLUG×3
- BALL,STEEL,13/32Replaced by 92140-0029×1
- SPRING×1
- BOLT,FLANGED,6X16×2
- 92153A92153-7043Not stockedBOLT,6X12×3
- 9217192171-7020Not stockedCLAMP×4
- 9219292192-7026Not stockedTUBE×1
- TUBE×1
- BOLT-FLANGED,6X12Replaced by 130AA0612×5
- PIN-DOWEL,4X8×1
- O RING,16MM×3
