FX921V-BS09 4 Stroke Engine FX921V

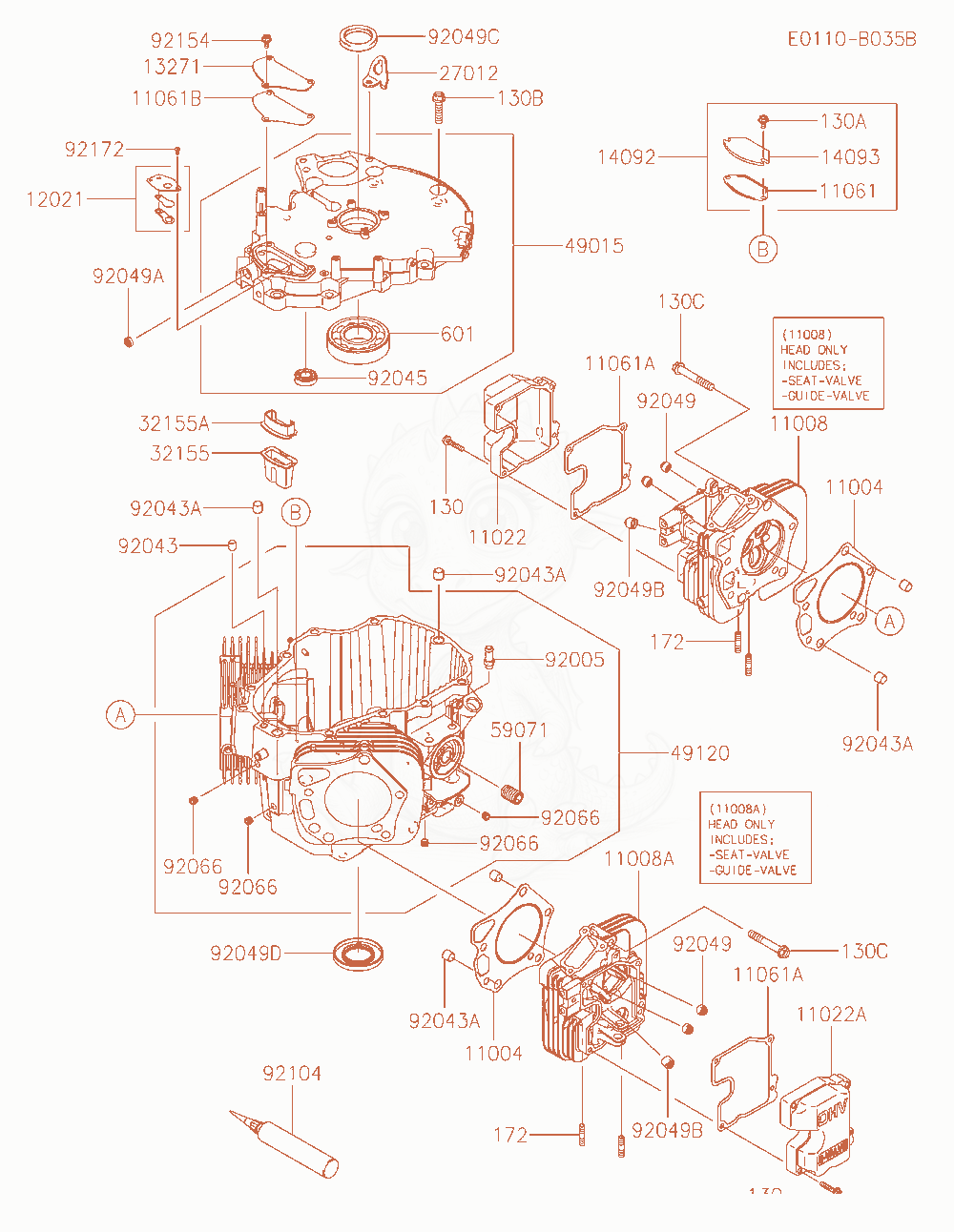

Despiece de Cylinder / Crankcase · FX921V-BS09
- GASKET-HEAD×2
- 1100811008-0738No la vendemosHEAD-COMP-CYLINDER,#1×1
- 11008A11008-0739No la vendemosHEAD-COMP-CYLINDER,#2×1
- CASE-ROCKER,#1×1
- CASE-ROCKER,#2×1
- GASKET,BREATHER×1
- GASKET,CASE-ROCKER×2
- GASKET,BREATHER-COVER×1
- VALVE-ASSY-REED,BREATHER×1
- PLATE,BREATHER-COVER×1
- COVERSustituida por 99999-0380×1
- COVER,BREATHER×1
- HOOK×1
- PIPE,BREATHER×1
- PIPE,BREATHERSustituida por 32156-0519×1
- COVER-CRANKCASE×1
- CRANKCASE-COMP×1
- JOINT,OIL FILTER×1
- FITTINGSustituida por 92005-0991×2
- PIN×1
- PIN,11X14X12.3×6
- BEARING-BALL,A 15X32X9 6002×1
- SEAL-OIL,RVC2 6X11X10.2Sustituida por 92049-0862×4
- SEAL-OIL,SO 8X14X5 HS×1
- SEAL-OIL,7X15X13×2
- SEAL-OIL,SD 40X54X9 R HS×1
- SEAL-OIL,SD 40X72X8 L VS×1
- PLUG×4
- GASKET-LIQUID,TB1217H×AR
- BOLT,6X12×3
- SCREW,4X8Sustituida por 92172-1731×2
- BOLT-FLANGED,6X30×8
- 130A130BA0616No la vendemosBOLT-FLANGED,6X16×2
- BOLT-FLANGED,10X40×11
- BOLT-FLANGED,10X65×10
- BOLT-STUD,8X22Sustituida por 92004-0837×4
- BEARING-BALL,6308Sustituida por 601A6308×1
