FX921V-AS27 4 Stroke Engine FX921V

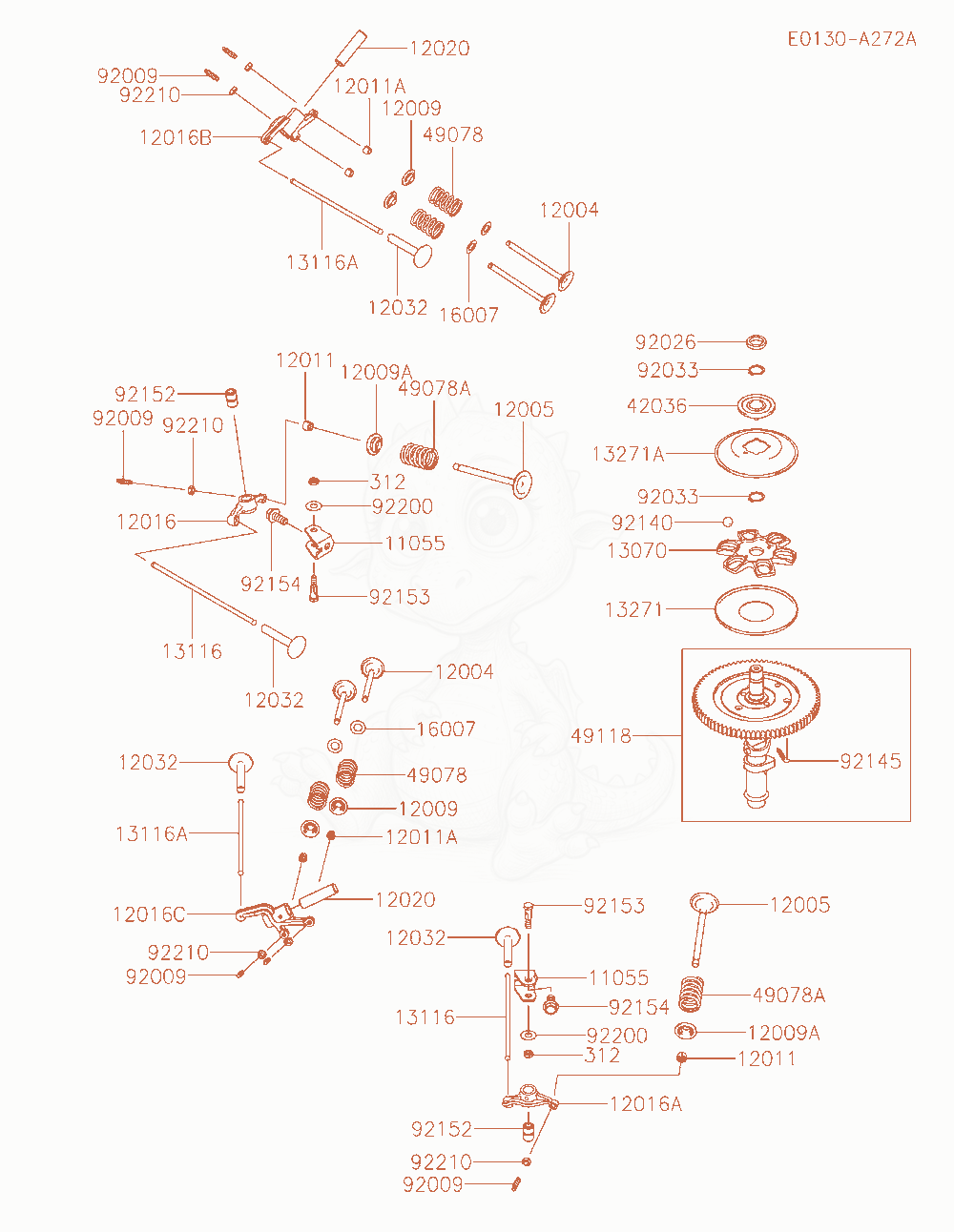

Despiece de Valve / Camshaft · FX921V-AS27
- 1105511055-7009No la vendemosBRACKET×2
- VALVE-INTAKE×4
- VALVE-EXHAUST×2
- RETAINER-VALVE SPRING×4
- RETAINER-VALVE SPRING×2
- COLLET×4
- COLLET×8
- ARM-ROCKER,#1,EX×1
- ARM-ROCKER,#2,EX×1
- ARM-ROCKER,#1,IN×1
- ARM-ROCKER,#2,IN×1
- SHAFT-ROCKER,IN×2
- TAPPET×4
- GUIDESustituida por 13070-1577×1
- ROD-PUSH×2
- ROD-PUSH×2
- 1327113271-7007No la vendemosPLATE×1
- 13271A13271-7021No la vendemosPLATE,GOVERNOR×1
- SEAT-SPRING×4
- SLEEVESustituida por 42036-0907×1
- SPRING-ENGINE VALVE,INSustituida por 49078-0838×4
- SPRING-ENGINE VALVE,EX×2
- CAMSHAFT-COMP×1
- SCREW,VALVE ADJUST×6
- SPACER×1
- RING-SNAP×2
- BALLSustituida por 92140-0035×6
- SPRING×1
- COLLAR×2
- BOLT,6X29.5×2
- BOLT,8X18.2×2
- WASHER,8.1X18X0.5Sustituida por 92200-2707×2
- NUT,VALVE ADJUST LOCK×6
- NUT-HEX,6MM×2
