FX801V-NS08 4 Stroke Engine FX801V

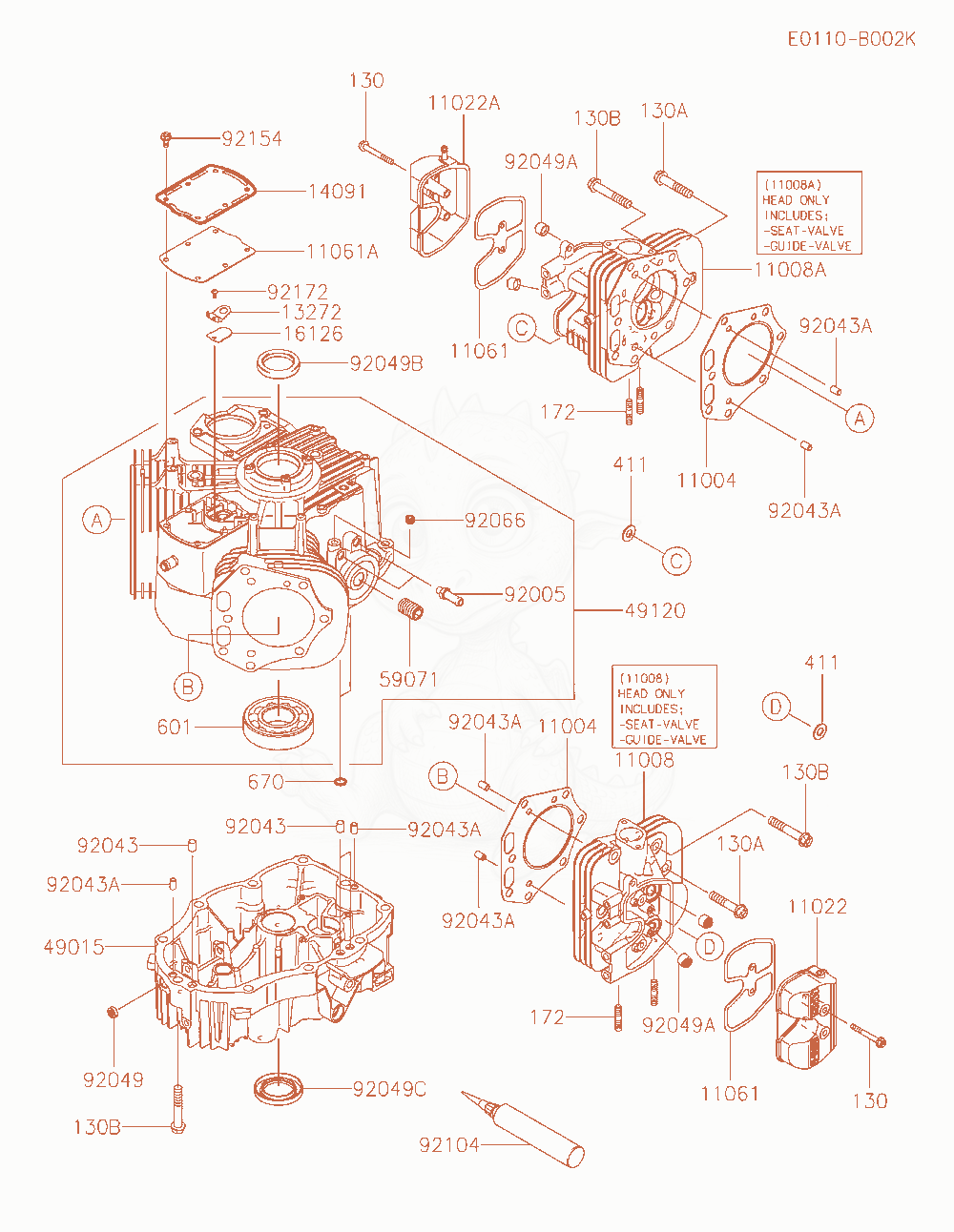

Despiece de Cylinder / Crankcase · FX801V-NS08
- GASKET-HEAD×2
- HEAD-COMP-CYLINDER,#2×1
- HEAD-COMP-CYLINDER,#1×1
- CASE-ROCKER×1
- CASE-ROCKER,#1×1
- GASKET,CASE-ROCKER×2
- GASKET,BREATHER×1
- 1327213272-1374No la vendemosPLATE×1
- COVER,BREATHER×1
- VALVE,BREATHER×1
- COVER-CRANKCASESustituida por 49015-0747×1
- CRANKCASE-COMP×1
- JOINT,OIL FILTER×1
- FITTING×2
- PIN×3
- PIN,6.2X8X14×6
- SEAL-OIL,SO 8X14X5 HS×1
- SEAL-OIL,7X15X13×4
- SEAL-OIL,SD 40X54X9 R HS×1
- SEAL-OIL,SD 40X62X8 L VS×1
- PLUG×1
- GASKET-LIQUID,TB1217H×AR
- BOLT,6X12×6
- SCREW,4X8Sustituida por 92172-1731×1
- BOLT-FLANGED,6X50×4
- BOLT-FLANGED,10X50×2
- BOLT-FLANGED,10X60×20
- BOLT-STUD,8X22Sustituida por 92004-0837×4
- WASHER-PLAIN,10MM×2
- BEARING-BALL,6308Sustituida por 601A6308×1
- O RING,11MM×2
