FX801V-AS19 4 Stroke Engine FX801V

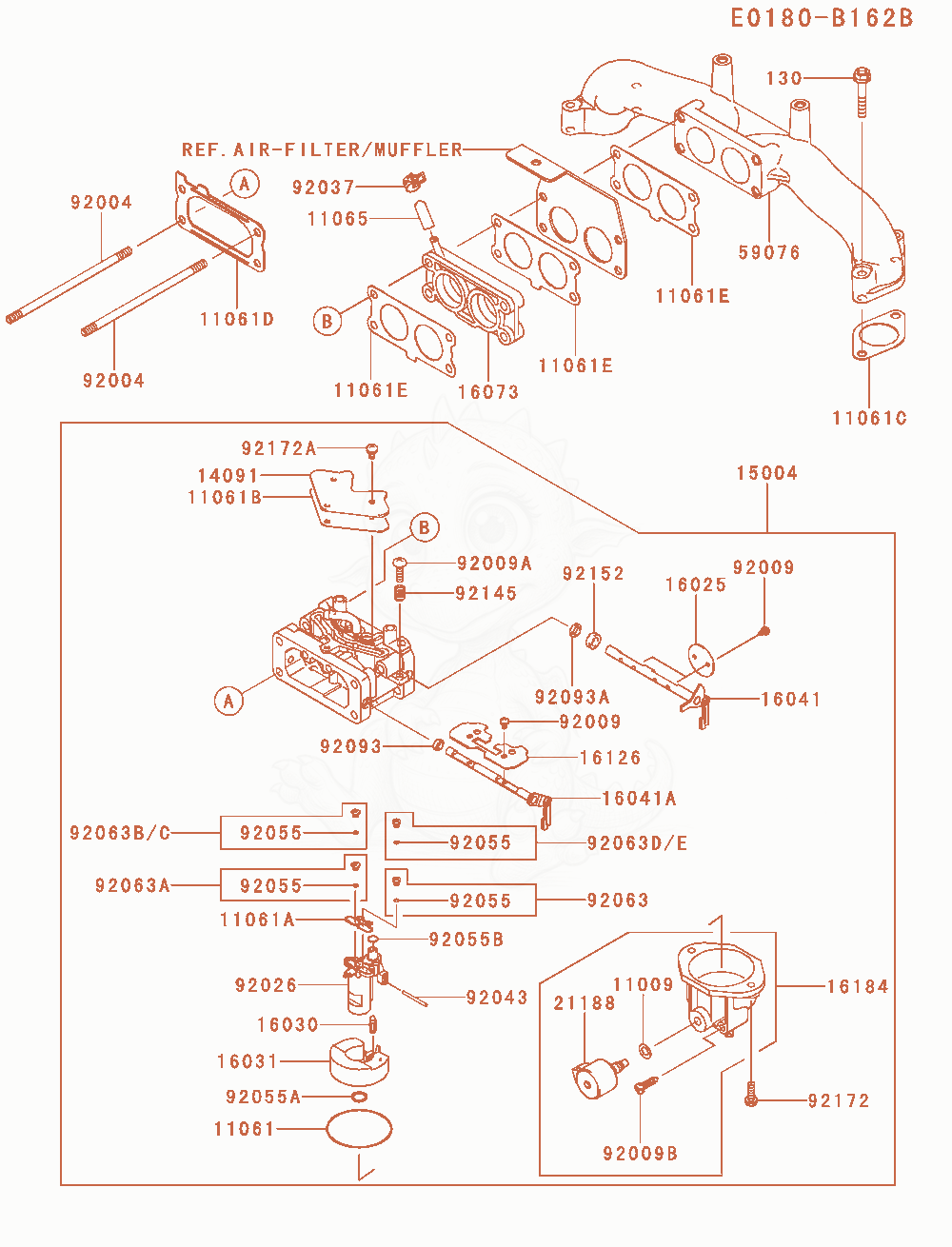

Despiece de Carburetor · FX801V-AS19
- GASKET,SCREW-CARBURETOR×1
- GASKET,FLOAT CHAMBER×1
- GASKET,CARB SPACER×1
- GASKET×1
- GASKET,HEAD/MANIFOLD×2
- GASKET,CARBURETOR/PIPE×1
- GASKET,CARBURETOR/MANIFOLD×3
- CAPSustituida por 11065-1437×1
- COVER×1
- CARBURETOR-ASSY×1
- VALVE-THROTTLE×2
- VALVE-FLOAT×1
- 1603116031-7003No la vendemosFLOAT×1
- SHAFT-CARBURETOR,THROTTLE×1
- SHAFT-CARBURETOR,CHOKE×1
- INSULATOR×1
- VALVE×1
- CHAMBER-ASSY-FLOAT×1
- SOLENOID×1
- 5907659076-7013No la vendemosMANIFOLD-INTAKE×1
- 9200492004-7028No la vendemosSTUD,6X120×2
- SCREW×6
- SCREW×1
- SCREW,DRAIN×1
- SPACER×1
- CLAMP,TUBE×1
- PIN,FLOAT×1
- RING-O×6
- RING-O×1
- RING-O×1
- JET-MAIN,#124×1
- JET-MAIN,#118×1
- JET-MAIN,#115×1
- JET-MAIN,#112,6560FT×1
- JET-MAIN,#117,3280FT×1
- JET-MAIN,#114,6560FT×1
- SEAL,D=5.9×1
- SEAL,D=6.9×1
- SPRING×1
- COLLAR×1
- SCREW,M5×2
- SCREW,M4×3
- BOLT-FLANGED,6X35×4
