FX801V-AS14 4 Stroke Engine FX801V

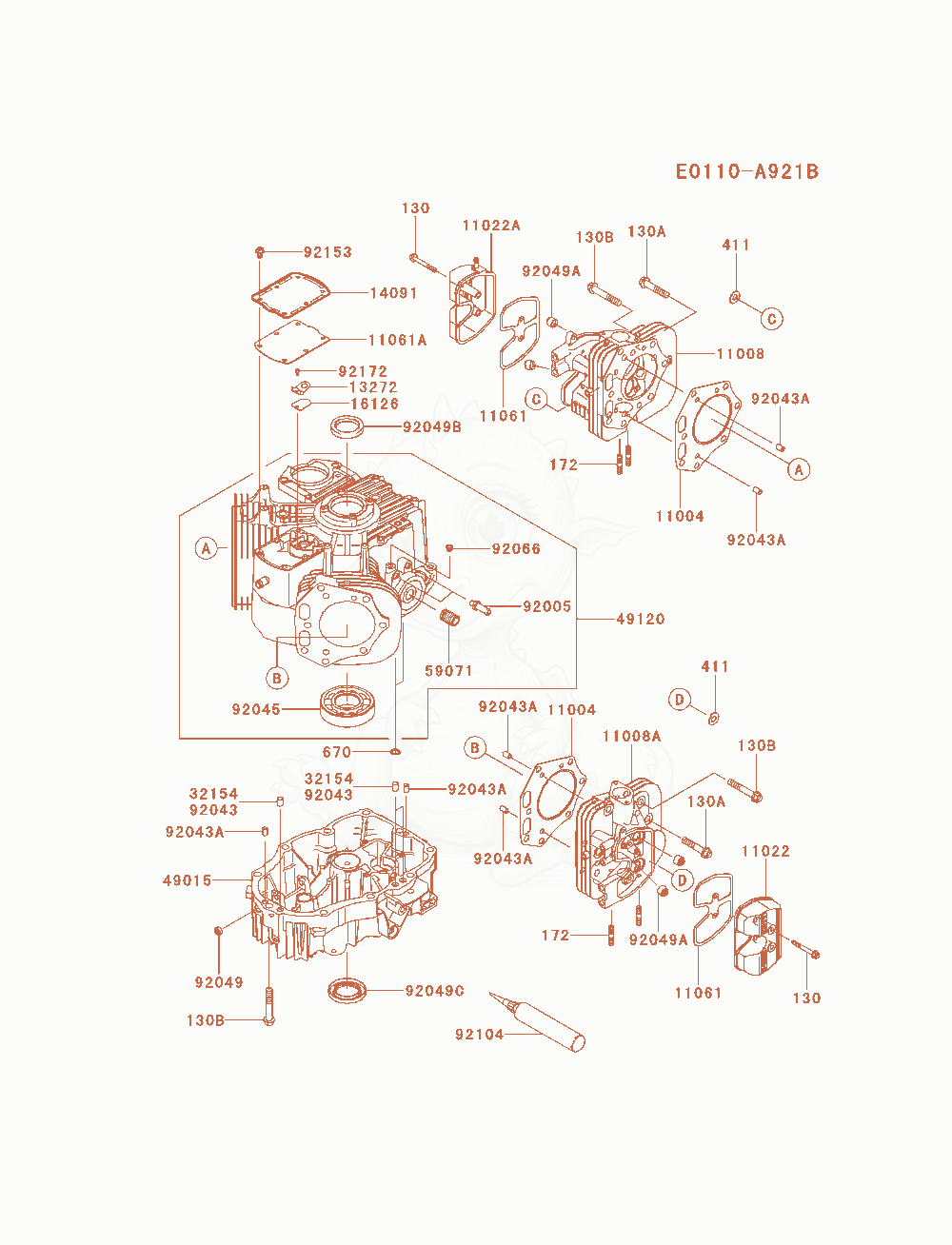

Despiece de Cylinder / Crankcase · FX801V-AS14
- GASKET-HEAD×2
- 1100811008-0893No la vendemosHEAD-COMP-CYLINDER,#1×1
- 11008A11008-0899No la vendemosHEAD-COMP-CYLINDER,#2×1
- CASE-ROCKER,#2Sustituida por 99996-6122×1
- CASE-ROCKER,#1Sustituida por 11022-6013×1
- GASKET,CASE-ROCKER×2
- GASKET,BREATHER×1
- PLATE×1
- COVER,BREATHER×1
- VALVE,BREATHER×1
- PIPESustituida por 92043-0858×0
- 4901549015-0730No la vendemosCOVER-CRANKCASE×1
- CRANKCASE-COMP×1
- 5907159071-0733No la vendemosJOINT×1
- 9200592005-0771No la vendemosFITTING×2
- PIN×3
- PIN,6.2X8X14×6
- BEARING-BALL,6308Sustituida por 601A6308×1
- SEAL-OIL,SO 8X14X5 HS×1
- SEAL-OIL,7X15X13×4
- SEAL-OIL,SD 40X54X9 R HS×1
- SEAL-OIL,SD 40X62X8 L VS×1
- 9206692066-0762No la vendemosPLUG×1
- GASKET-LIQUID,TB1217H×AR
- 9215392153-7043No la vendemosBOLT,6X12×6
- 9217292172-0870No la vendemosSCREW,4X8×1
- BOLT-FLANGED,6X50×4
- BOLT-FLANGED,10X50×2
- BOLT-FLANGED,10X60×20
- BOLT-STUD,8X22Sustituida por 92004-0837×4
- WASHER-PLAIN,10MM×2
- O RING,11MM×2
