FS600V-AS04 4 Stroke Engine FS600V

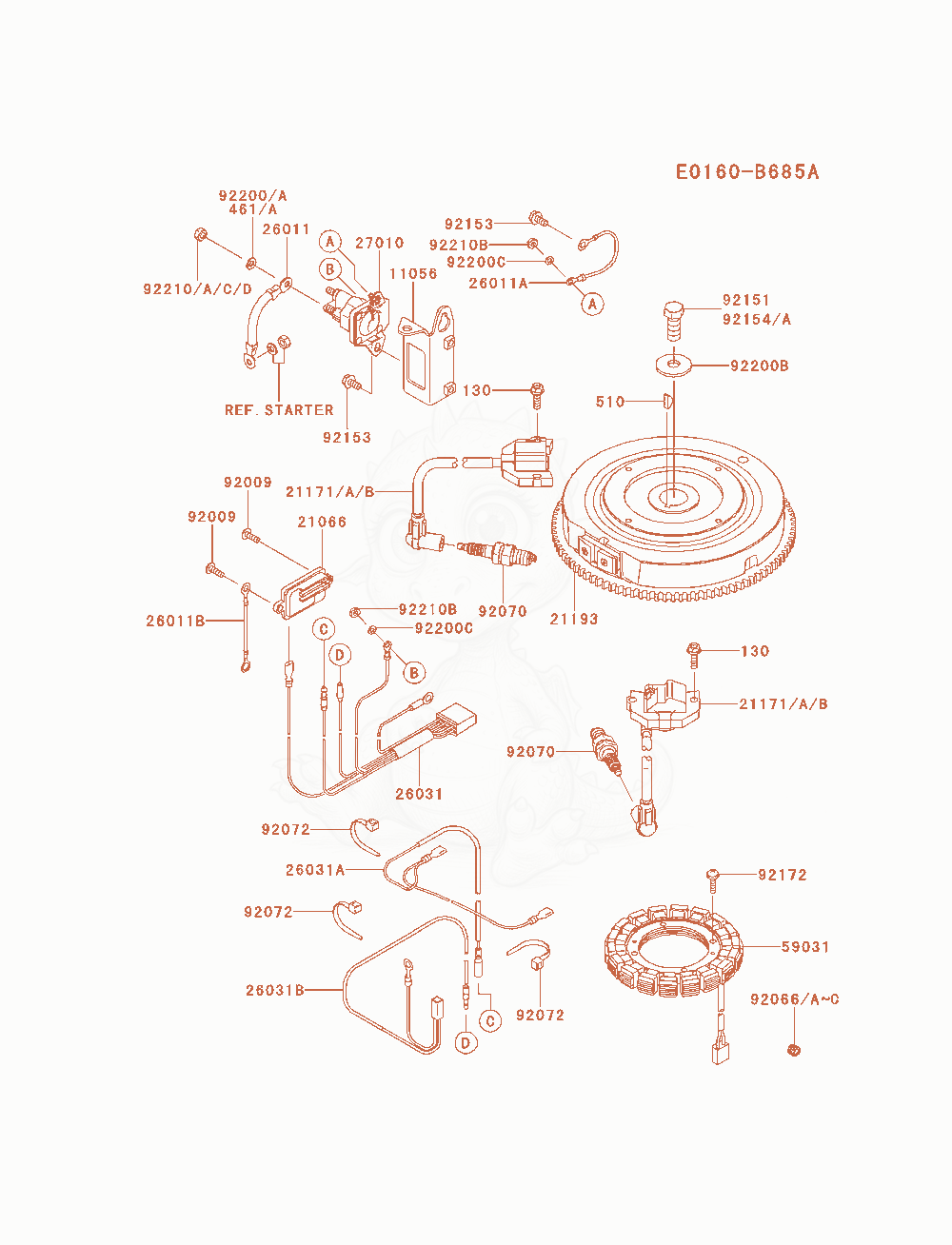

Despiece de Electric-Equipment · FS600V-AS04
- BRACKET×1
- REGULATOR-VOLTAGE×1
- COIL-ASSY-IGNITIONSustituida por 21171-0743×2
- COIL-ASSY-IGNITIONSustituida por 21171-0743×0
- 2119321193-0035No la vendemosFLYWHEEL-ASSY×1
- WIRE-LEAD×1
- WIRE-LEAD,L=95×1
- WIRE-LEAD,L=95×1
- HARNESS×1
- HARNESS×1
- HARNESS×1
- SWITCHSustituida por 27010-1545×1
- COIL-CHARGING×1
- SCREWSustituida por 92172-1608×2
- 92066B92066-7026No la vendemosPLUG×1
- PLUG-SPARK,BPR4ES(NGK×2
- BAND×3
- 9215192151-2097No la vendemosBOLT,12X30×0
- 9215392153-7043No la vendemosBOLT,6X12×2
- BOLT,12X30×1
- SCREW,5X20×4
- WASHERSustituida por 92200-2535×1
- WASHER×2
- NUT×2
- NUT×1
- BOLT-FLANGED,6X20×4
- WASHER-SPRING,6MM×1
- KEY-WOODRUFF×1
