FH721V-AS19 4 Stroke Engine FH721V

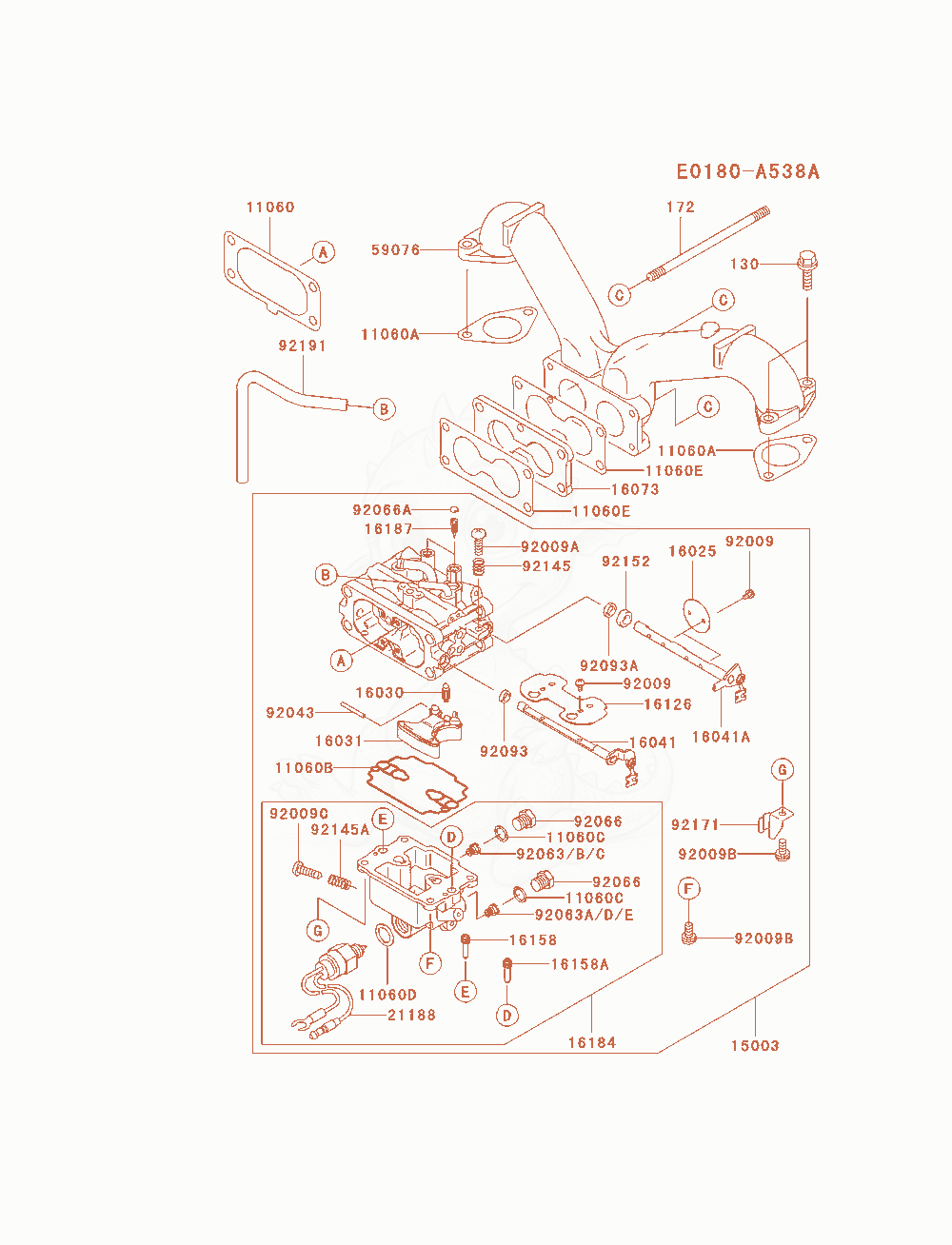

Despiece de Carburetor · FH721V-AS19
- GASKET,AIR FILTER×1
- GASKET,MANIFOLD×2
- GASKET,FLOAT CHAMBER×1
- GASKET,MAIN PLUG×2
- GASKET,SOLENOID×1
- GASKET×2
- CARBURETOR-ASSY×1
- VALVE-THROTTLE×2
- VALVE-FLOAT×1
- FLOAT×1
- SHAFT-CARBURETOR,CHOK×1
- 16041A16041-7014No la vendemosSHAFT-CARBURETOR×1
- INSULATOR×1
- 1612616126-7002No la vendemosVALVE,CHOKE×1
- 1615816158-7006No la vendemosJET-SLOW,#46×1
- 16158A16158-7007No la vendemosJET-SLOW,#44×1
- 1618416184-7006No la vendemosCHAMBER-ASSY-FLOAT×1
- NEEDLE-JET×2
- SOLENOID×1
- MANIFOLD-INTAKESustituida por 59076-0048×1
- SCREW×6
- SCREW×1
- SCREW×4
- SCREW,DRAIN×1
- PIN,FLOAT×1
- 9206392063-7010No la vendemosJET-MAIN,#136×1
- 92063A92063-7011No la vendemosJET-MAIN,#140×1
- JET-MAIN,#133×AR
- 92063C92063-7018No la vendemosJET-MAIN,#130×AR
- JET-MAIN,#137×AR
- 92063E92063-7020No la vendemosJET-MAIN,#134×AR
- PLUG,MAIN JET×2
- PLUG,EXPANSION×2
- SEAL,D=5.9×1
- SEAL,D=6.9×1
- SPRING×1
- SPRING×1
- COLLAR×1
- 9217192171-7001No la vendemosCLAMP×1
- 9219192191-7023No la vendemosTUBE,4.76X7.94X215×1
- BOLT-FLANGED,6X20Sustituida por 130AA0620×4
- BOLT-STUD,6X105Sustituida por 172BA06105×2
