FH680D-AS05 4 Stroke Engine FH680D

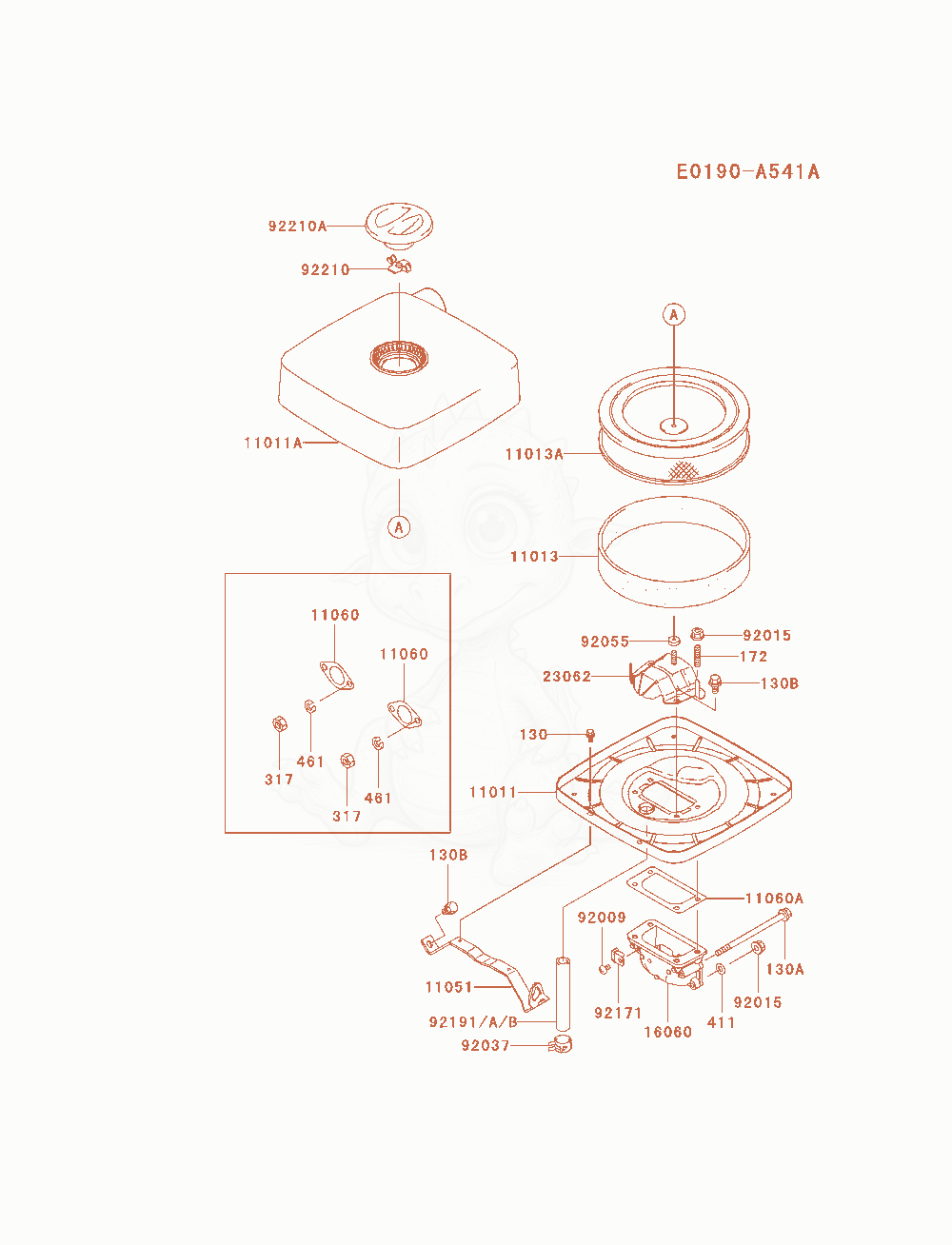

Despiece de Air-Filter / Muffler · FH680D-AS05
- CASE-AIR FILTER×1
- CASE-AIR FILTER×1
- ELEMENT-AIR FILTER×1
- ELEMENT-AIR FILTER×1
- BRACKET×1
- GASKET,MUFFLER×2
- GASKET×1
- 1606016060-7002No la vendemosPIPE-INTAKE×1
- BRACKET-COMP×1
- SCREW,5X8×1
- NUT,FLANGED,6MM×4
- CLAMP×1
- RING-O×1
- CLAMP×1
- TUBE,12X18X115×0
- TUBE,12X18X115×1
- NUT×1
- 92210A92210-7010No la vendemosNUT×1
- BOLT-FLANGED,5X10Sustituida por 130AA0510×2
- BOLT-FLANGED,6X105Sustituida por 130AA06105×2
- BOLT-FLANGED,6X12Sustituida por 130AA0612×4
- BOLT-STUD,6X12×2
- NUT-HEX-SMALL,8MM×4
- WASHER-PLAIN,6MMSustituida por 411AA0600×1
- WASHER-SPRING,8MM×4
