FH580V-AS38 4 Stroke Engine FH580V

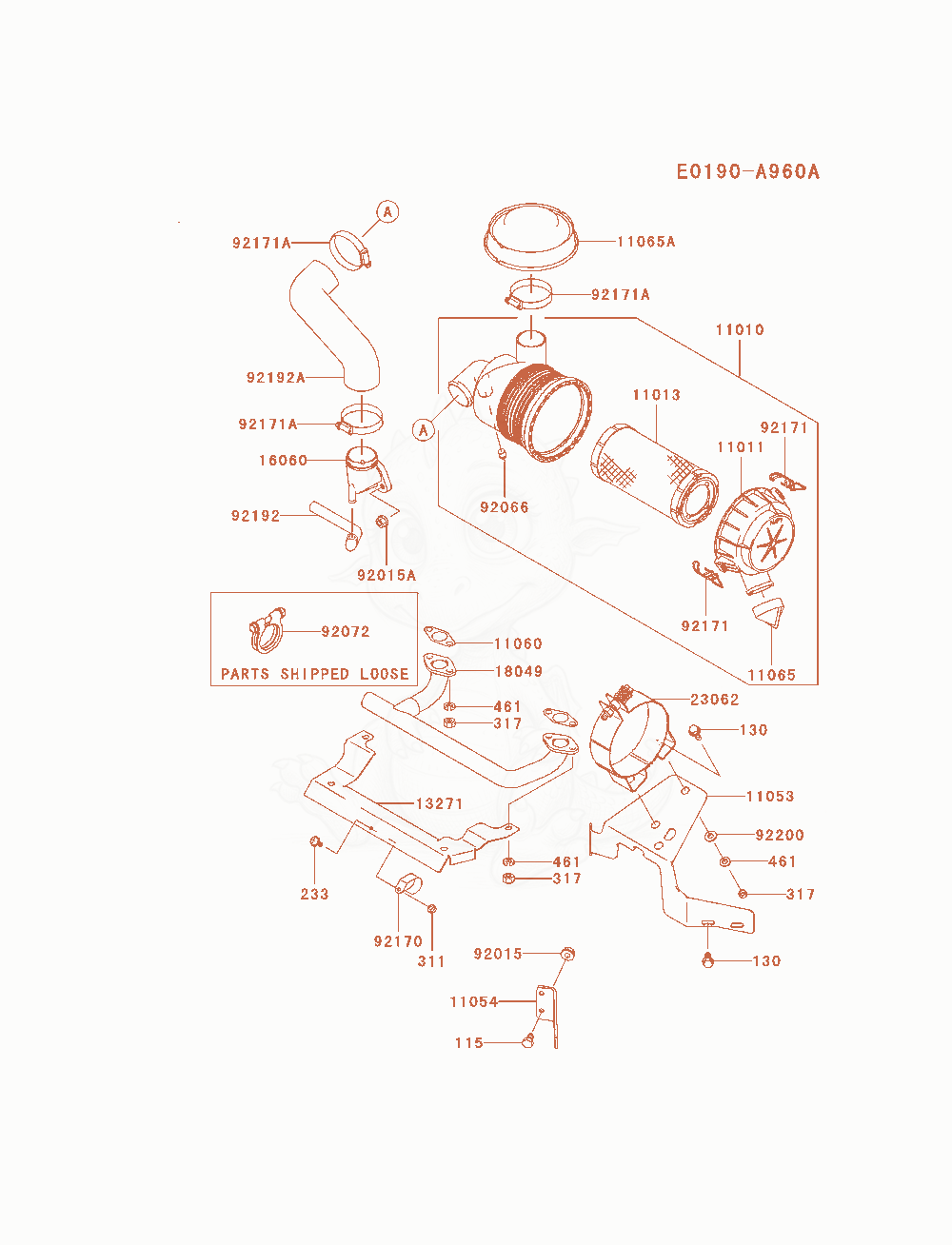

Despiece de Air-Filter / Muffler · FH580V-AS38
- 1101011010-7034No la vendemosFILTER-ASSY-AIR×1
- CASE-AIR FILTER×1
- ELEMENT-AIR FILTER×1
- BRACKET×1
- BRACKET×1
- GASKET,MUFFLER×2
- CAP×1
- CAPSustituida por 11065-1392×1
- PLATE×1
- PIPE-INTAKE×1
- PIPE-EXHAUST×1
- BRACKET-COMP×1
- NUT,8MM×1
- NUT,FLANGED,6MM×2
- 9206692066-7018No la vendemosPLUG×1
- BAND×1
- CLAMP×1
- CLAMP×2
- 92171A92171-7010No la vendemosCLAMP×3
- TUBE×1
- TUBE×1
- WASHER×2
- BOLT-SMALL-UPSET,8X14×1
- BOLT-FLANGED,8X16Sustituida por 130AA0816×3
- SCREW-PAN-WP,4X16Sustituida por 233AA0416×1
- NUT-HEX,4MM×1
- NUT-HEX-SMALL,8MM×6
- WASHER-SPRING,8MM×6
