FH580V-AS34 4 Stroke Engine FH580V

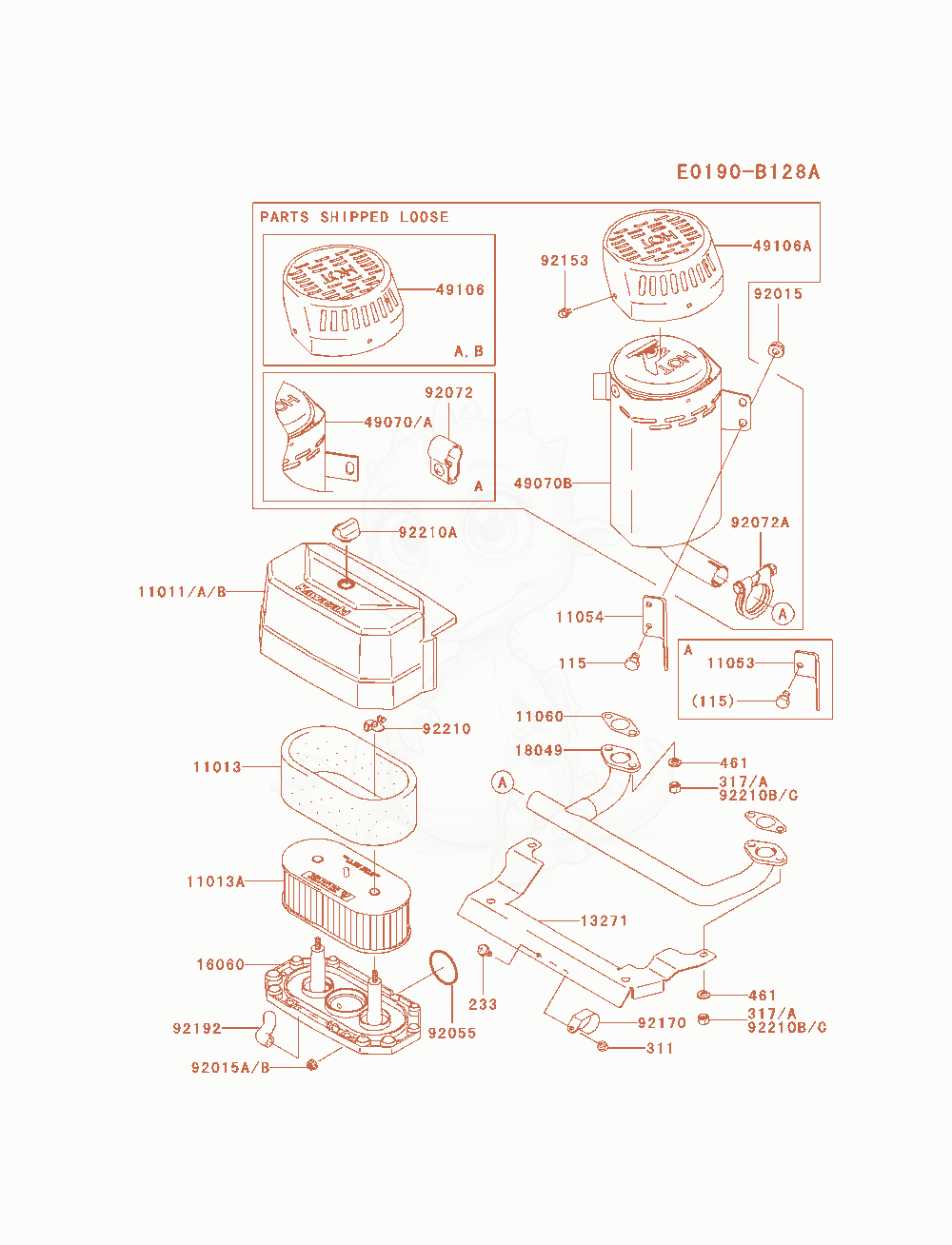

Despiece de Air-Filter / Muffler · FH580V-AS34
- CASE-AIR FILTERSustituida por 11011-1690×0
- 11011B11011-7046No la vendemosCASE-AIR FILTER×1
- ELEMENT-AIR FILTER×1
- ELEMENT-AIR FILTER×1
- 1105311053-7023No la vendemosBRACKET×1
- GASKET,MUFFLER×2
- PLATE×1
- PIPE-INTAKE×1
- PIPE-EXHAUST×1
- 4907049070-6002No la vendemosMUFFLER-COMP,BRACKET-×0
- 49070A49070-6002No la vendemosMUFFLER-COMP,BRACKET-×1
- COVER-MUFFLER×1
- NUT,8MM×1
- NUT,FLANGED,6MM×2
- RING-O×1
- BAND×1
- BOLT×3
- CLAMP×1
- TUBE×1
- NUT×2
- NUT×1
- BOLT-SMALL-UPSET,8X14×1
- SCREW-PAN-WP,4X16Sustituida por 233AA0416×1
- NUT-HEX,4MM×1
- NUT-HEX-SMALL,8MM×4
- WASHER-SPRING,8MM×4
