FH580V-AS16 4 Stroke Engine FH580V

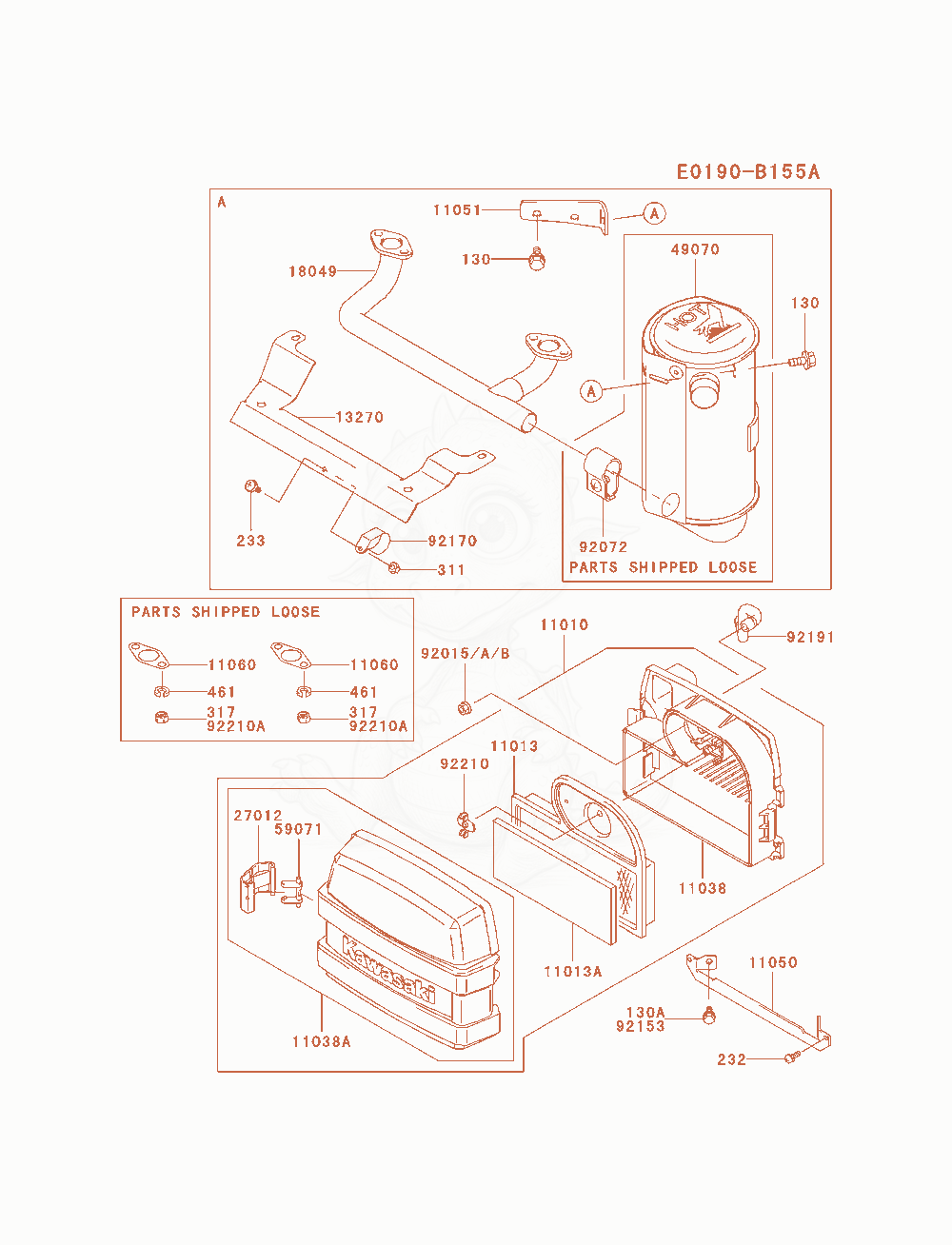

Despiece de Air-Filter / Muffler · FH580V-AS16
- FILTER-ASSY-AIR×1
- ELEMENT-AIR FILTER×1
- ELEMENT-AIR FILTER×1
- CASE-ASSY-AIR FILTER×1
- CASE-ASSY-AIR FILTER×1
- BRACKET×1
- MUFFLER-COMP,BRACKET-×1
- GASKET,MUFFLER×2
- 1327013270-7008No la vendemosPLATE×1
- 1804918049-7001No la vendemosPIPE-EXHAUST×1
- HOOK×2
- MUFFLER-COMP,BRACKET-×1
- JOINT×2
- NUT,FLANGED,6MM×2
- BAND×1
- CLAMP×1
- TUBESustituida por 92192-2331×1
- NUT×1
- BOLT-FLANGED,8X16×3
- BOLT-FLANGED,6X12Sustituida por 130AA0612×2
- SCREW-PAN-WS+-,5X14Sustituida por 232AA0514×2
- SCREW-PAN-WP,4X16Sustituida por 233AA0416×1
- NUT-HEX,4MM×1
- NUT-HEX-SMALL,8MM×4
- WASHER-SPRING,8MM×4
