FD851D-MS01 4 Stroke Engine FD851D

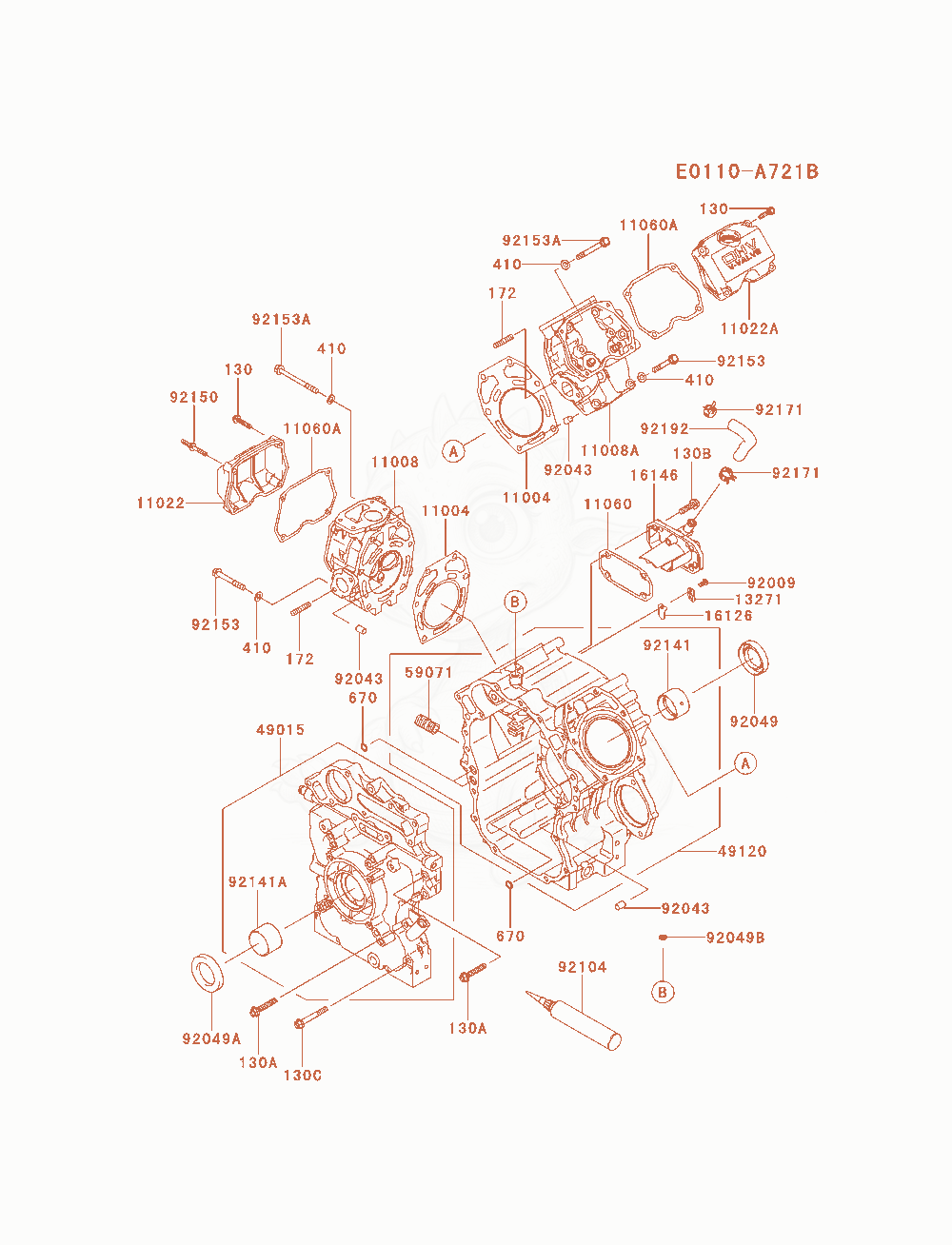

Despiece de Cylinder / Crankcase · FD851D-MS01
- GASKET-HEAD×2
- HEAD-COMP-CYLINDERSustituida por 11008-1537×1
- HEAD-COMP-CYLINDERSustituida por 11008-1538×1
- CASE-ROCKER×1
- CASE-ROCKER×1
- GASKET,BREATH×1
- GASKET,ROCKER CASE×2
- PLATE×2
- VALVE,BREATH×2
- COVER-ASSY×1
- COVER-CRANKCASE×1
- 4912049120-6190No la vendemosCRANKCASE-COMP×1
- JOINT×1
- SCREW×2
- PIN,DOWEL,10X14×6
- SEAL-OIL,ISD 38X58X11 AE×1
- SEAL-OIL,ISD 42X65X9 AE×1
- SEAL-OIL,VC 8X12X2.5×1
- GASKET-LIQUID,TB1207B,BLACK×1
- BEARING-PLANE×1
- BEARING-PLANE×1
- BOLT×1
- BOLT,8X60×4
- BOLT,8X85×8
- CLAMP×2
- TUBE×1
- BOLT-FLANGED,6X30×7
- BOLT-FLANGED,8X45×6
- BOLT-FLANGED,8X30×4
- BOLT-FLANGED,8X60×4
- BOLT-STUD,8X22Sustituida por 92004-0837×4
- WASHER-PLAIN-SMALL,8MM×12
- O RING,11MM×3
