FD791D-AS03 4 Stroke Engine FD791D

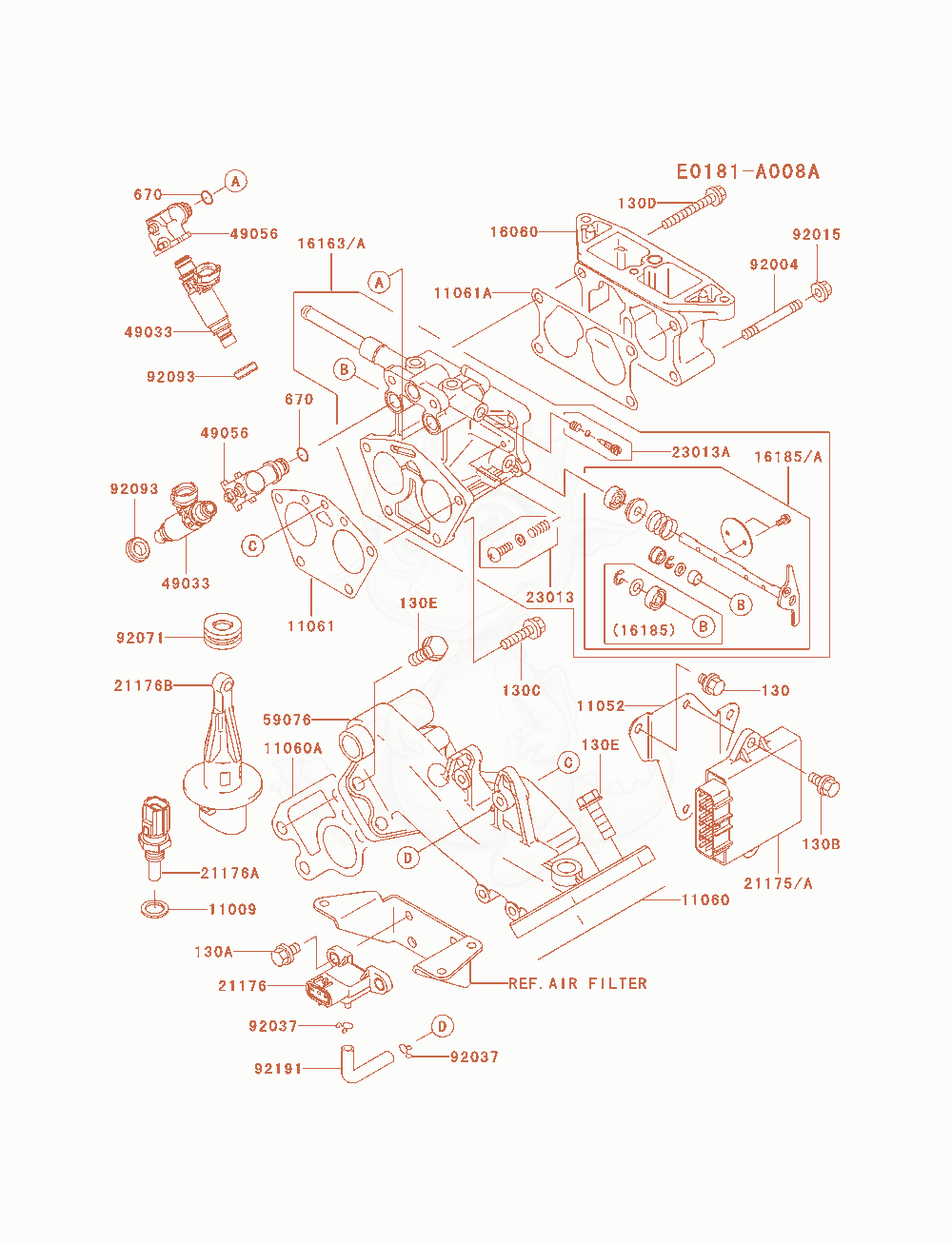

Despiece de Throttle-Equipment · FD791D-AS03
- GASKET,INTAKE MANIFOLD×1
- GASKET×1
- GASKET,PIPE-INTAKE×1
- PIPE-INTAKE×1
- THROTTLE-ASSY×1
- THROTTLE-ASSY×1
- 1618516185-2043No la vendemosVALVE-ASSY-THROTTLE×1
- 16185A16185-2046No la vendemosVALVE-ASSY-THROTTLE×1
- CONTROL UNIT-ELECTRON×0
- CONTROL UNIT-ELECTRON×1
- SENSOR,PRESSURE×1
- SENSOR×1
- SENSOR×1
- SCREW-ASSY×1
- SCREW-ASSY×1
- NOZZLE-INJECTION×2
- PIPE-INJECTION×2
- MANIFOLD-INTAKE×1
- STUD,6X100×2
- NUT,FLANGED,6MM×2
- CLIP×2
- 9207192071-2140No la vendemosGROMMET×1
- SEALSustituida por 92093-0718×2
- TUBE,4X7X65Sustituida por 92192-1892×1
- BOLT-FLANGED,6X8Sustituida por 130AB0608×2
- BOLT-FLANGED,6X10Sustituida por 130BA0610×2
- BOLT-FLANGED,6X12×2
- BOLT-FLANGED,6X25×2
- BOLT-FLANGED,6X45Sustituida por 130BA0645×2
- BOLT-FLANGED,8X25Sustituida por 130BA0825×8
- 670670B1508No la vendemosO RING,8MM×2
- GASKET,12.4X17X1.5×1
- 1105211052-2063-9HNo la vendemosBRACKET×1
- GASKET,INTAKE MANIFOLD×1
