FD750D-BS05 4 Stroke Engine FD750D

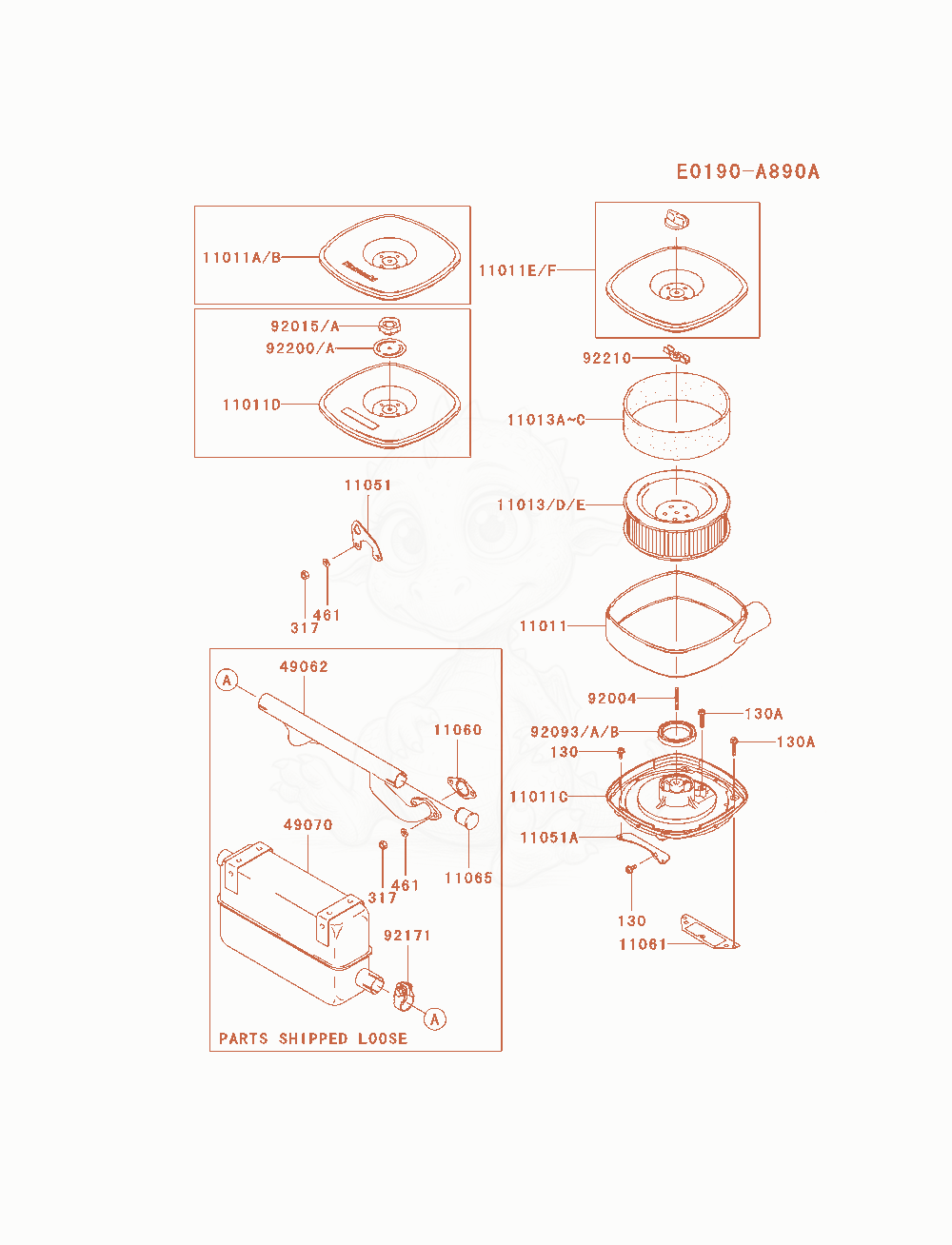

Despiece de Air-Filter / Muffler · FD750D-BS05
- CASE-AIR FILTER,BODY×1
- CASE-AIR FILTER,UPPER×0
- CASE-AIR FILTER,LOWER×1
- CASE-AIR FILTER,UPPER×0
- CASE-AIR FILTER,UPPER×1
- ELEMENT-AIR FILTERSustituida por 11013-0798×1
- ELEMENT-AIR FILTER×1
- BRACKET×1
- BRACKET,AIR FILTER×1
- GASKET,MUFFLER×2
- GASKET×1
- CAP×1
- PIPE-COMP-EXHAUST×1
- MUFFLER-COMP×1
- STUD,6X30×1
- 92015A92015-2138No la vendemosNUT×1
- SEAL×1
- CLAMP×3
- 92200A92200-2136No la vendemosWASHER×1
- NUT,M6×1
- BOLT-FLANGED,6X14×3
- BOLT-FLANGED,6X30×3
- NUT-HEX-SMALL,8MM×5
- WASHER-SPRING,8MM×5
