FXT00V-AS13 4 Stroke Engine FXT00V

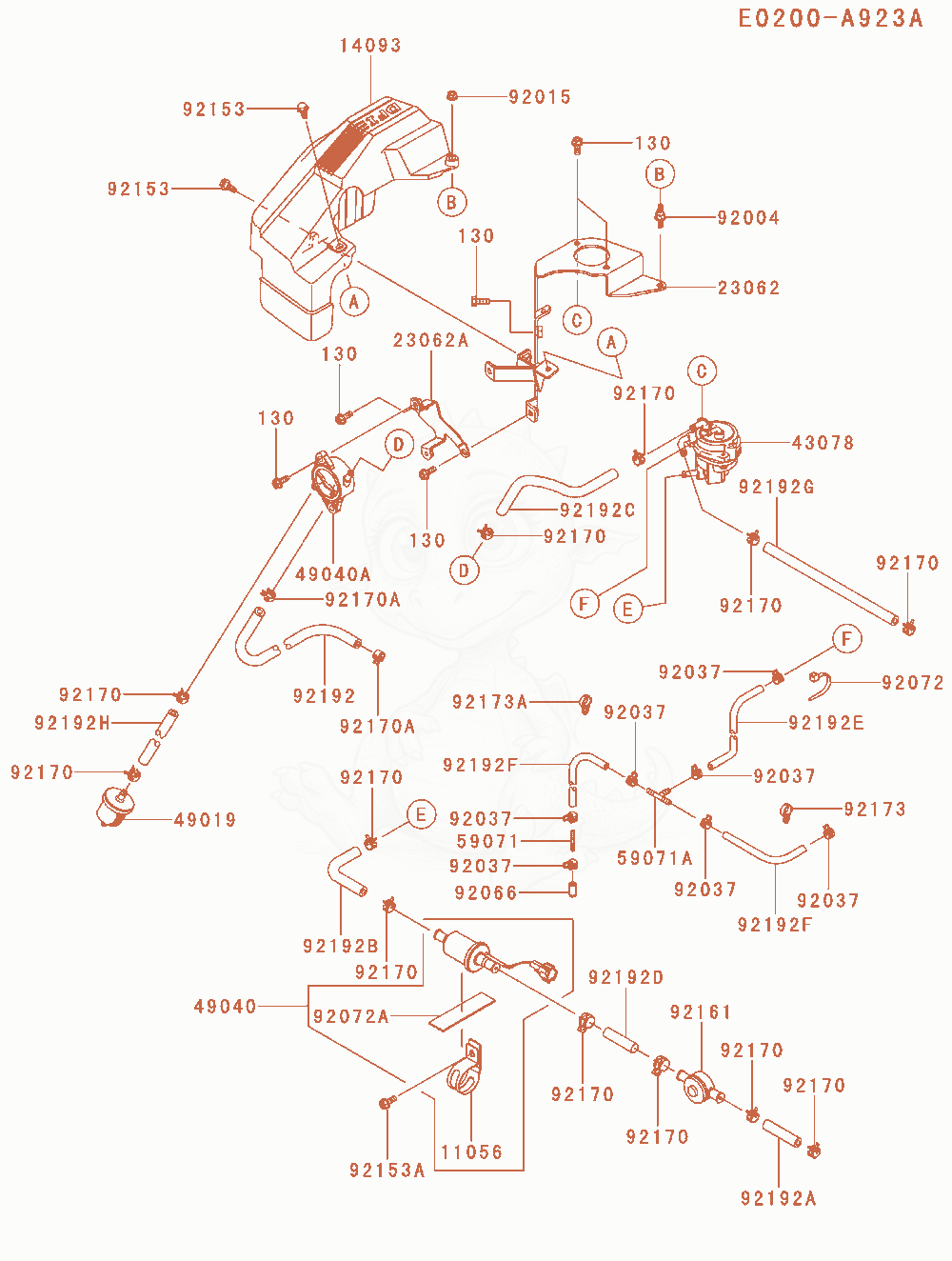

FXT00V-AS13 Fuel-Tank / Fuel-Valve Diagram
- BRACKET×1
- COVER×1
- BRACKET-COMP×1
- BRACKET-COMP×1
- 4307843078-0565Not stockedRESERVOIR×1
- FILTER-FUELReplaced by 49019-0031×1
- PUMP-FUEL×1
- PUMP-FUELReplaced by 49040-0803×1
- JOINT×1
- JOINT×1
- STUD×1
- NUT,FLANGED,6MM×1
- CLAMP,TUBE×7
- PLUG×1
- BAND,3.5X205×3
- BAND×1
- BOLT,FLANGED,6X16×2
- 92153A92153-7043Not stockedBOLT,6X12×1
- DAMPER×1
- CLAMPReplaced by 92173-1582×12
- CLAMPReplaced by 92173-1582×2
- CLAMP×2
- CLAMP×1
- TUBE,6.4X12.7X395×1
- TUBE,6.35X12.7X42×1
- TUBE,6.35X12.7X112×1
- TUBE,6.35X12.7X223×1
- TUBE×1
- TUBE,4.76X8.74X380×1
- TUBE,4.76X8.74X120×2
- 92192G92192-1537Not stockedTUBE,6.35X12.7X230×1
- 92192H92192-7179Not stockedTUBE,6.35X12.7X285×1
- 130130BA0616Not stockedBOLT-FLANGED,6X16×8
