FXT00V-AS09 4 Stroke Engine FXT00V

FXT00V-AS09 Lubrication-Equipment Diagram

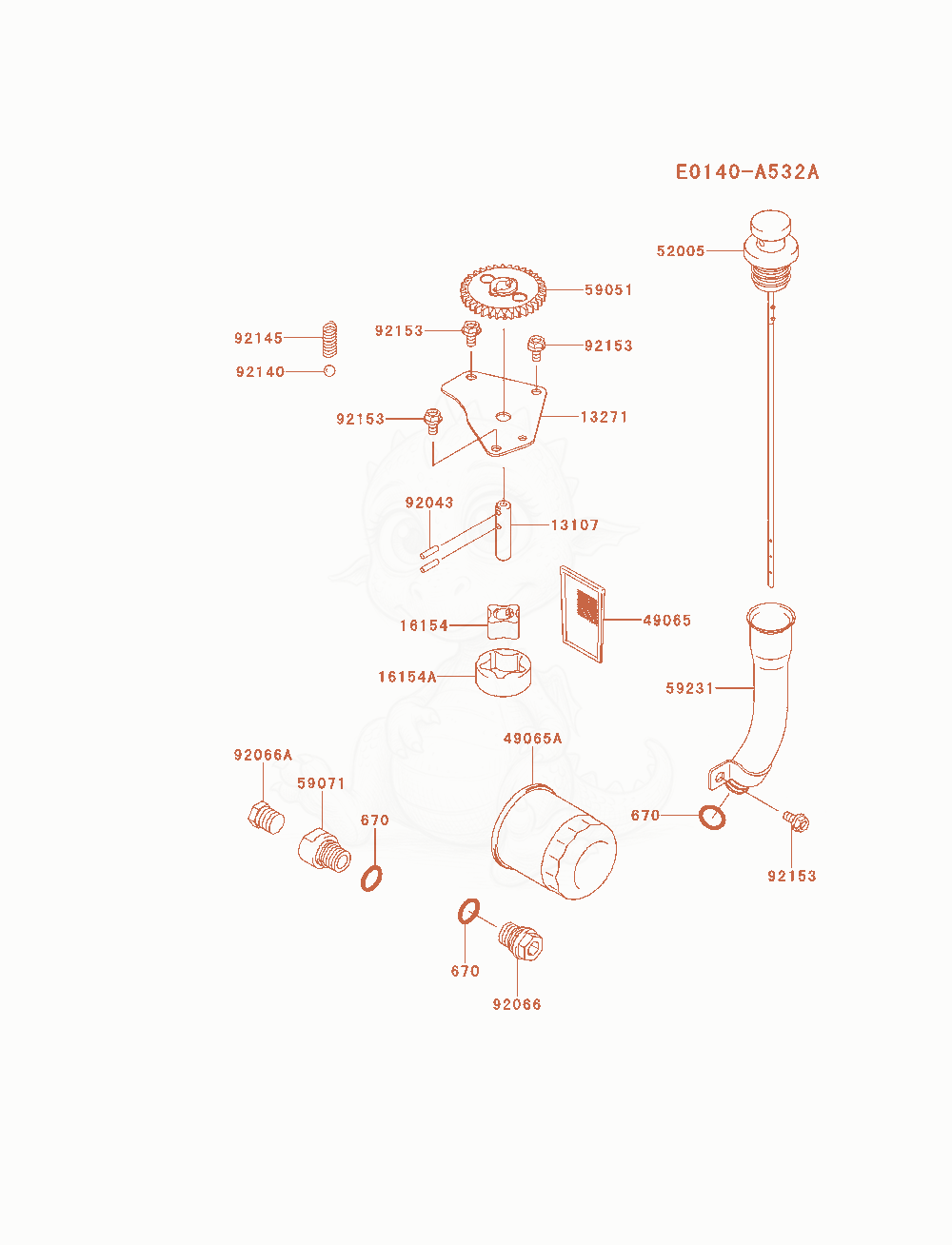

Exploded parts diagram of the Lubrication-Equipment of a Kawasaki FXT00V-AS09 engine, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 1310713107-0749
    $1.50
    SHAFTReplaced by 13107-1554×1
  • 1327113271-7034
    $3.37
    PLATE,ROTOR-PUMP×1
  • 1615416154-7007
    $8.11
    ROTOR-PUMP,IN×1
  • 16154A16154-7008
    $18.53
    ROTOR-PUMP,OUT×1
  • 4906549065-7004Not stocked
    FILTER-OIL×1
  • 49065A49065-0724Not stocked
    FILTER-OIL×1
  • 5200552005-7023
    $40.77
    GAUGE×1
  • 5905159051-7026
    $53.07
    GEAR-SPUR,OIL-PUMP×1
  • 5907159071-7023
    $7.89
    JOINT×1
  • 5923159231-7012
    $52.25
    FILLER×1
  • 9204392043-7003Not stocked
    PIN×2
  • 9206692066-7003Not stocked
    PLUG×1
  • 92066A92066-0827Not stocked
    PLUG×1
  • 9214092140-7003
    $1.10
    BALL,STEEL,13/32Replaced by 92140-0029×1
  • 9214592145-7046
    $0.86
    SPRING×1
  • 9215392153-7043Not stocked
    BOLT,6X12×4
  • 670670D2016
    $5.83
    O RING,16MM×3
