FX921V-AS07 4 Stroke Engine FX921V

FX921V-AS07 Cylinder / Crankcase Diagram

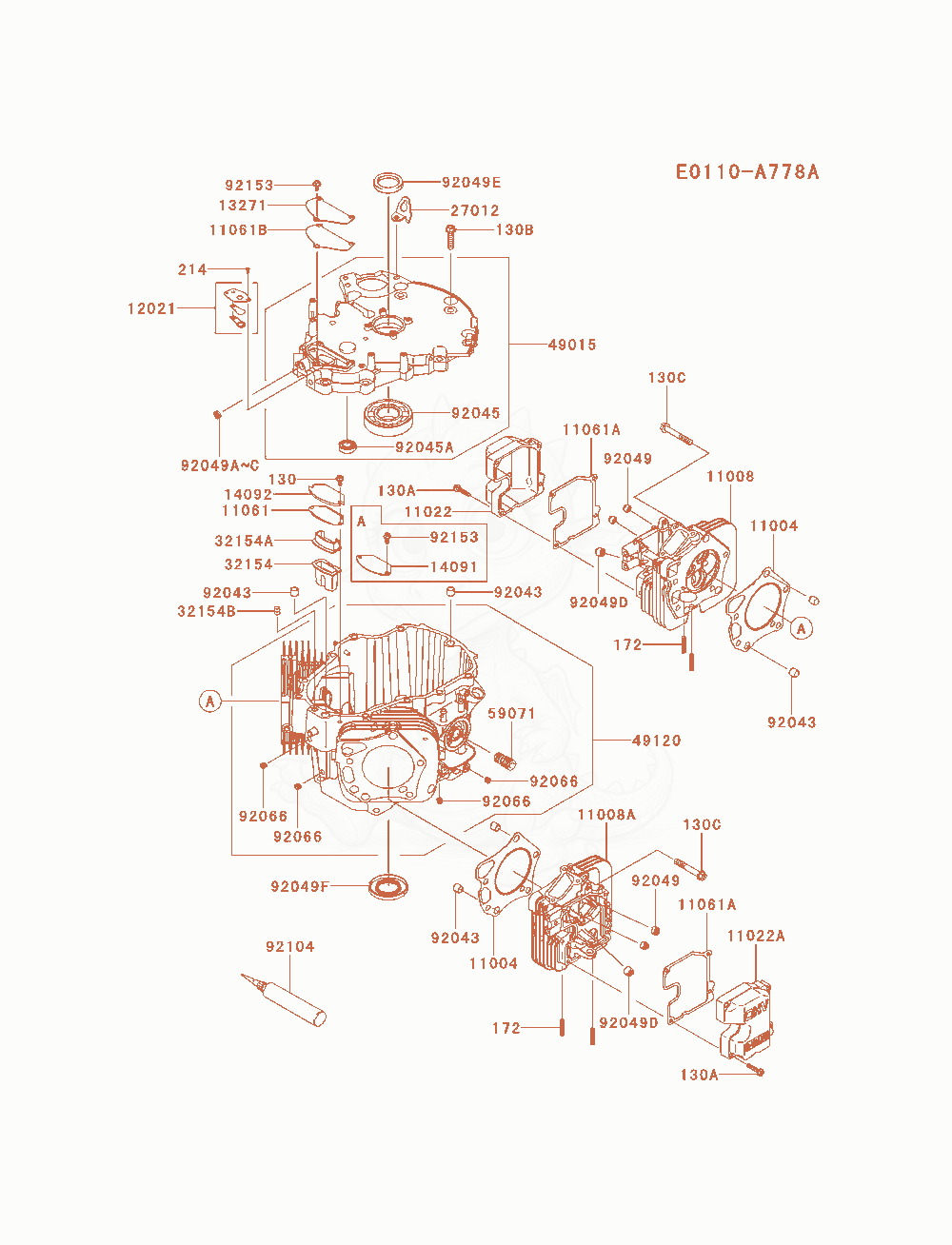

Exploded parts diagram of the Cylinder / Crankcase of a Kawasaki FX921V-AS07 engine, with numbered balloons — Hover a box for the part, its price and its row below. Click it to select.

130A130AA0630
$1.45
BOLT-FLANGED,6X30×8
130B130CA1040
$2.94
BOLT-FLANGED,10X40×11
130C130CA1065
$2.65
BOLT-FLANGED,10X65×10
172172BA0818
$1.74
BOLT-STUD,8X18×4
214214AA0408
$4.13
SCREW-PAN+-,4X8×2
