FX921V-AS07 4 Stroke Engine FX921V

FX921V-AS07 Cooling-Equipment Diagram

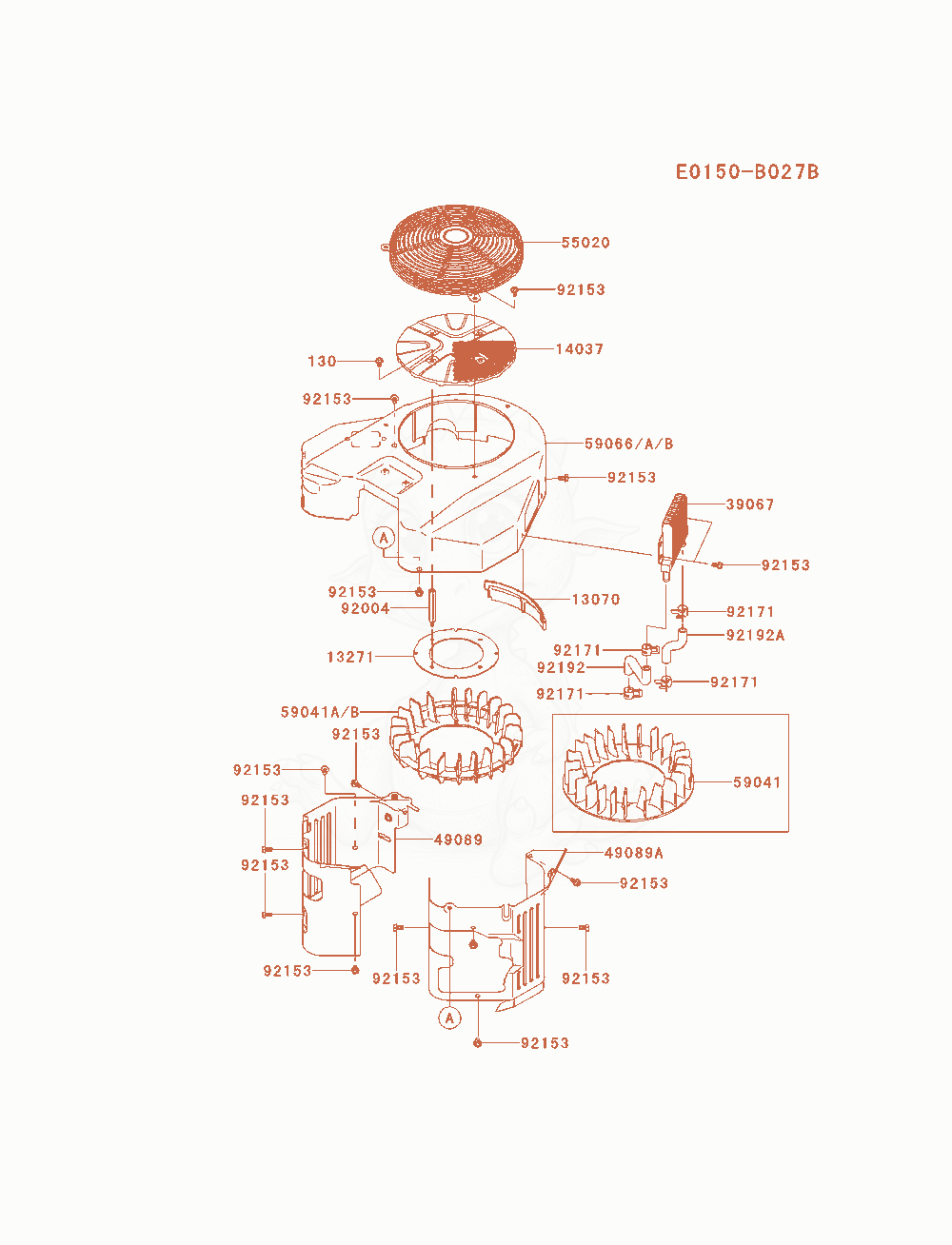

Exploded parts diagram of the Cooling-Equipment of a Kawasaki FX921V-AS07 engine, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 1307013070-7013Not stocked
    GUIDE×1
  • 1327113272-1485
    $11.81
    PLATE,FAN×1
  • 1403714037-7029-9H
    $21.11
    SCREENReplaced by 14037-0804×1
  • 3906739067-0018Not stocked
    COOLER-OIL×1
  • 4908949089-7087-753
    $38.57
    SHROUD-ENGINE×1
  • 49089A49089-7088-753
    $35.97
    SHROUD-ENGINEReplaced by 49089-1192×1
  • 5502055020-7016-9H
    $46.46
    GUARD×1
  • 5904159041-7019
    $17.87
    FAN×1
  • 59041B59041-7019
    $17.87
    FAN×1
  • 5906659066-7043-753Not stocked
    HOUSING-FAN×1
  • 59066B59066-7064-753Not stocked
    HOUSING-FAN×1
  • 9200492004-7021Not stocked
    STUD,6X69×4
  • 9215392153-7043Not stocked
    BOLT,6X12×18
  • 9217192173-1619
    $3.34
    CLAMP×4
  • 9219292192-7078
    $12.42
    TUBE×1
  • 92192A92192-7079
    $8.96
    TUBE×1
  • 130130B0610
    $0.40
    BOLT-FLANGED,6X10Replaced by 130AA0610×4
