FX850V-AS02 4 Stroke Engine FX850V

FX850V-AS02 Electric-Equipment Diagram

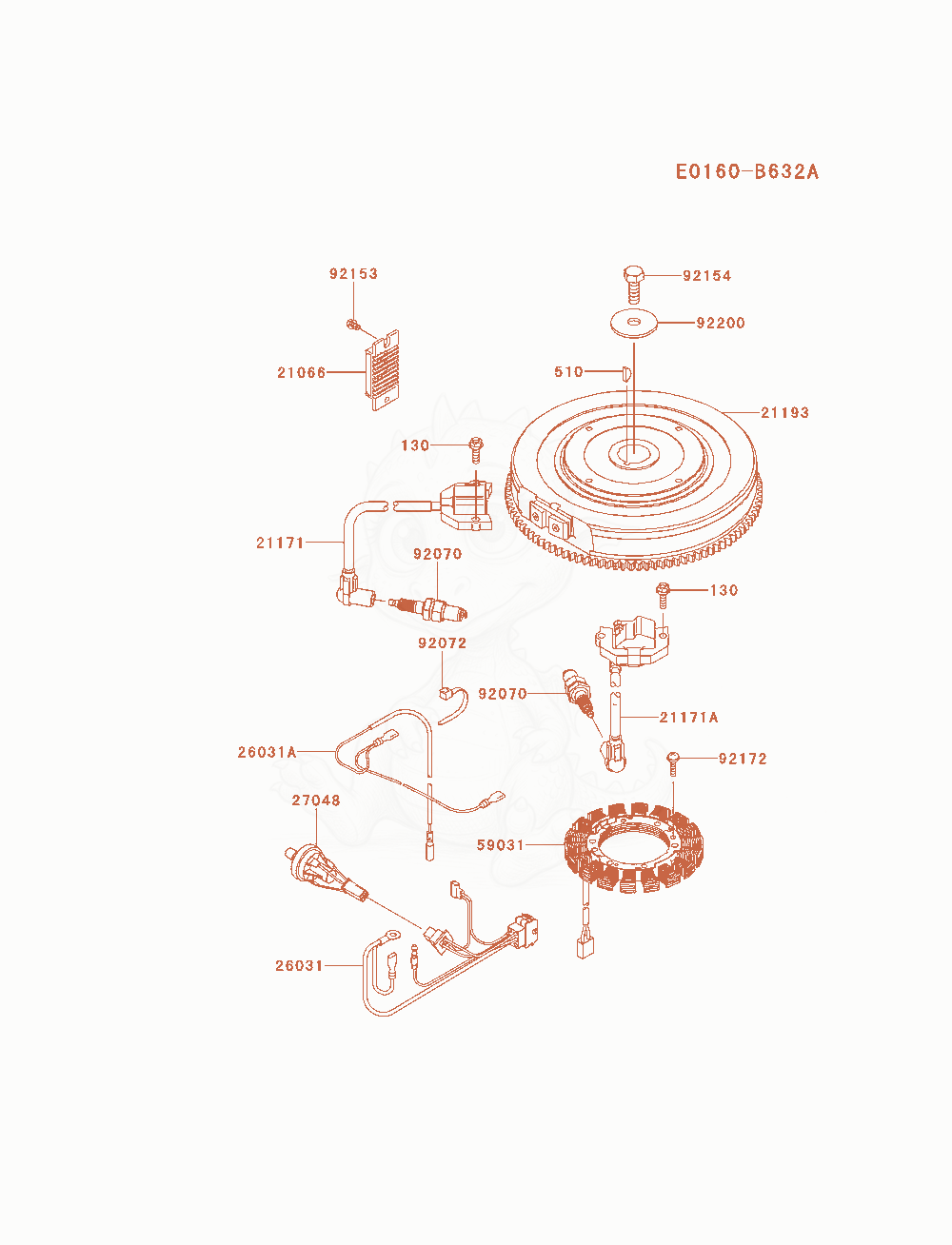

Exploded parts diagram of the Electric-Equipment of a Kawasaki FX850V-AS02 engine, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 2106621066-7011
    $70.15
    REGULATOR-VOLTAGEReplaced by 21066-0816×1
  • 2117121171-0738
    $72.25
    COIL-ASSY-IGNITION,#1 CYLReplaced by 21171-0743×1
  • 21171A21171-0744
    $72.47
    COIL-ASSY-IGNITION×1
  • 2119321193-0015
    $278.43
    FLYWHEEL-ASSY×1
  • 2603126031-1486Not stocked
    HARNESS×1
  • 26031A26031-7033
    $6.07
    HARNESS×1
  • 2704827048-0005Not stocked
    SWITCH-ASSY×1
  • 5903159031-7017
    $112.81
    COIL-CHARGING×1
  • 9207092070-0707Not stocked
    PLUG-SPARK,BPR8ES×2
  • 9207292072-7003
    $1.12
    BAND×4
  • 9215392153-7029
    $1.20
    BOLT×2
  • 9215492154-7003
    $4.36
    BOLT,12X30×1
  • 9217292172-7018
    $0.30
    SCREW,5X20×4
  • 9220092200-7040Not stocked
    WASHER,12.2X46X3×1
  • 130130AA0620
    $3.09
    BOLT-FLANGED,6X20×4
  • 510510A5100
    $2.96
    KEY-WOODRUFF×1
