FX751V-AS00 4 Stroke Engine FX751V

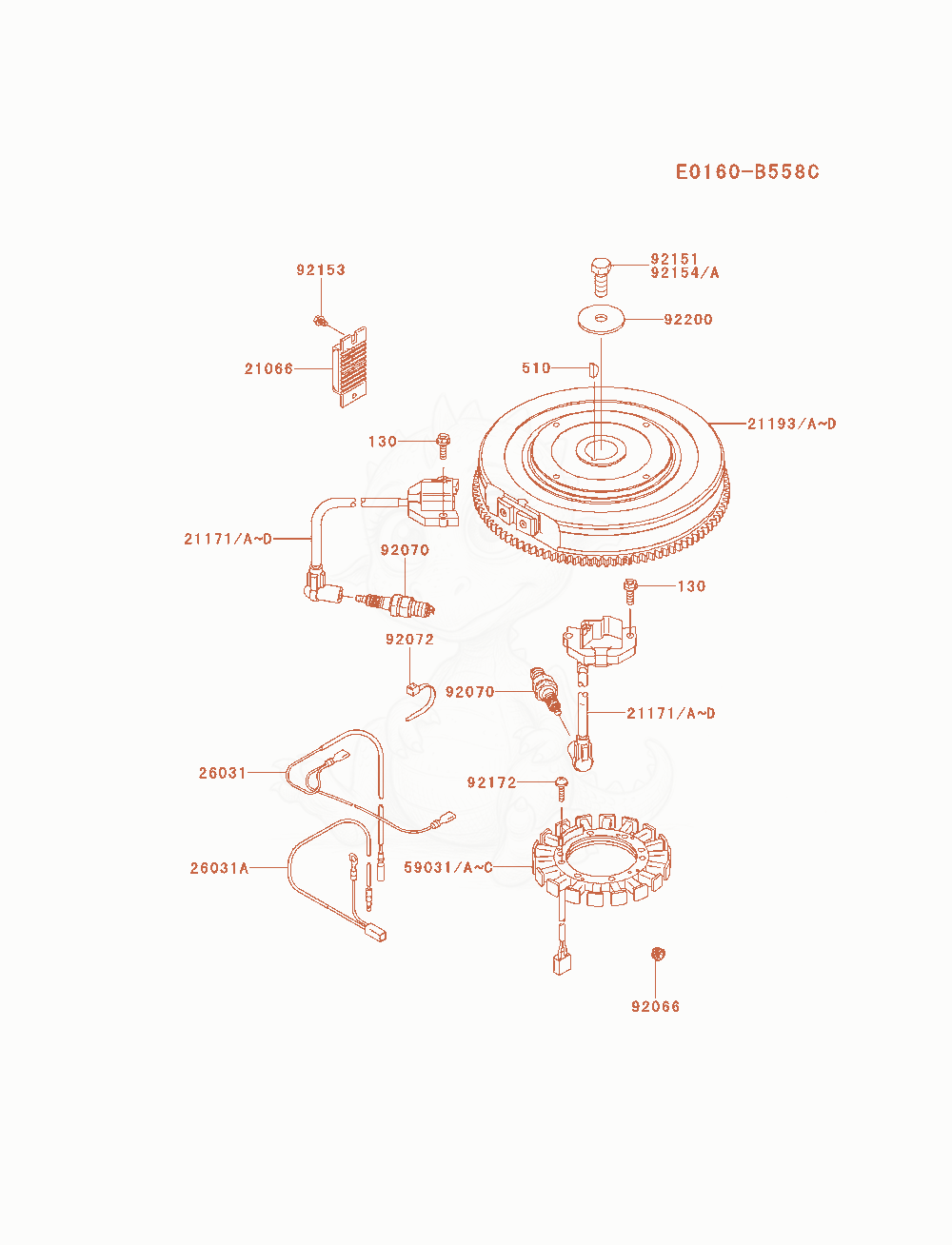

FX751V-AS00 Electric-Equipment Diagram
- REGULATOR-VOLTAGEReplaced by 21066-0816×1
- COIL-ASSY-IGNITIONReplaced by 21171-0743×0
- 21171D21171-7047Not stockedCOIL-ASSY-IGNITION×2
- FLYWHEEL-ASSY×0
- FLYWHEEL-ASSY×1
- HARNESS×1
- HARNESS×1
- COIL-CHARGINGReplaced by 59031-7017×0
- COIL-CHARGINGReplaced by 59031-7017×0
- COIL-CHARGING×1
- 9206692066-7026Not stockedPLUG×1
- PLUG-SPARK,BPR4ES(NGK×2
- BAND×4
- 9215192151-2097Not stockedBOLT,12X30×0
- BOLT×2
- BOLT,12X30×1
- SCREW,5X20×4
- 9220092200-7040Not stockedWASHER,12.2X46X3×1
- BOLT-FLANGED,6X20×4
- KEY-WOODRUFF×1
