FX751V-AS00 4 Stroke Engine FX751V

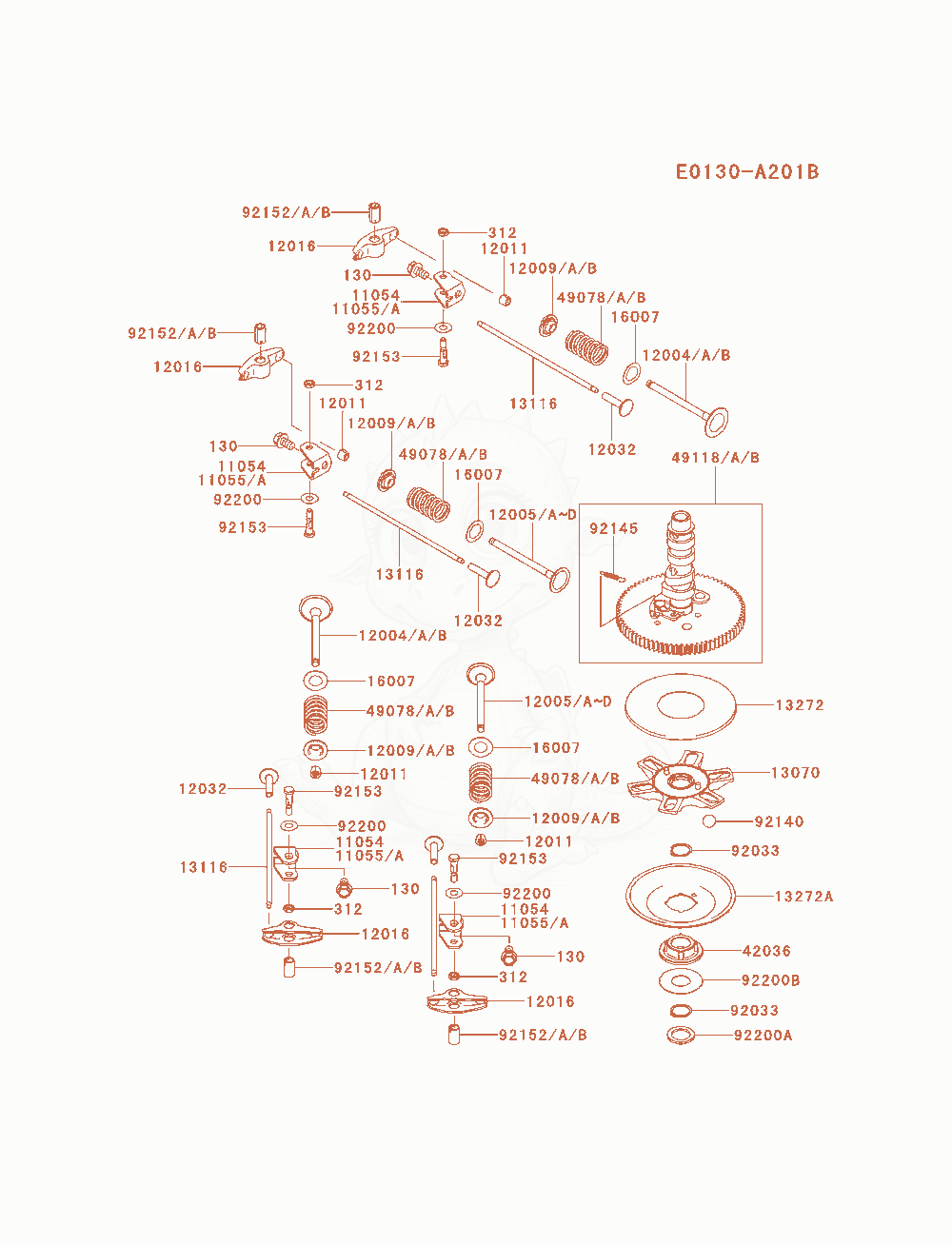

FX751V-AS00 Valve / Camshaft Diagram
- BRACKETReplaced by 11057-7822×0
- BRACKETReplaced by 11057-7822×4
- VALVE-INTAKE×0
- VALVE-INTAKE×2
- VALVE-EXHAUSTReplaced by 12005-0795×0
- VALVE-EXHAUSTReplaced by 12005-0795×2
- RETAINER-VALVE SPRING×0
- RETAINER-VALVE SPRING×4
- COLLET×8
- ARM-ROCKER×4
- TAPPET×4
- GUIDEReplaced by 13070-1574×1
- ROD-PUSH×4
- PLATE×1
- PLATE,GOVERNOR×1
- SLEEVE×1
- SPRING-ENGINE VALVE×0
- SPRING-ENGINE VALVE×4
- 4911849118-7026Not stockedCAMSHAFT-COMP×0
- 49118B49118-7026Not stockedCAMSHAFT-COMP×1
- RING-SNAPReplaced by 92033-0782×2
- 9214092140-7005Not stockedBALL×6
- 9214592145-7001Not stockedSPRING×1
- 9215292152-7022Not stockedCOLLAR×0
- 92152B92152-7020Not stockedCOLLAR×4
- BOLT,6X29.5×4
- WASHER,8.1X18X0.5Replaced by 92200-2707×4
- WASHER,20.3X29X2.28Replaced by 92200-2508×1
- WASHER,20X46X0.91×1
