FX730V-AS13 4 Stroke Engine FX730V

FX730V-AS13 Cooling-Equipment Diagram

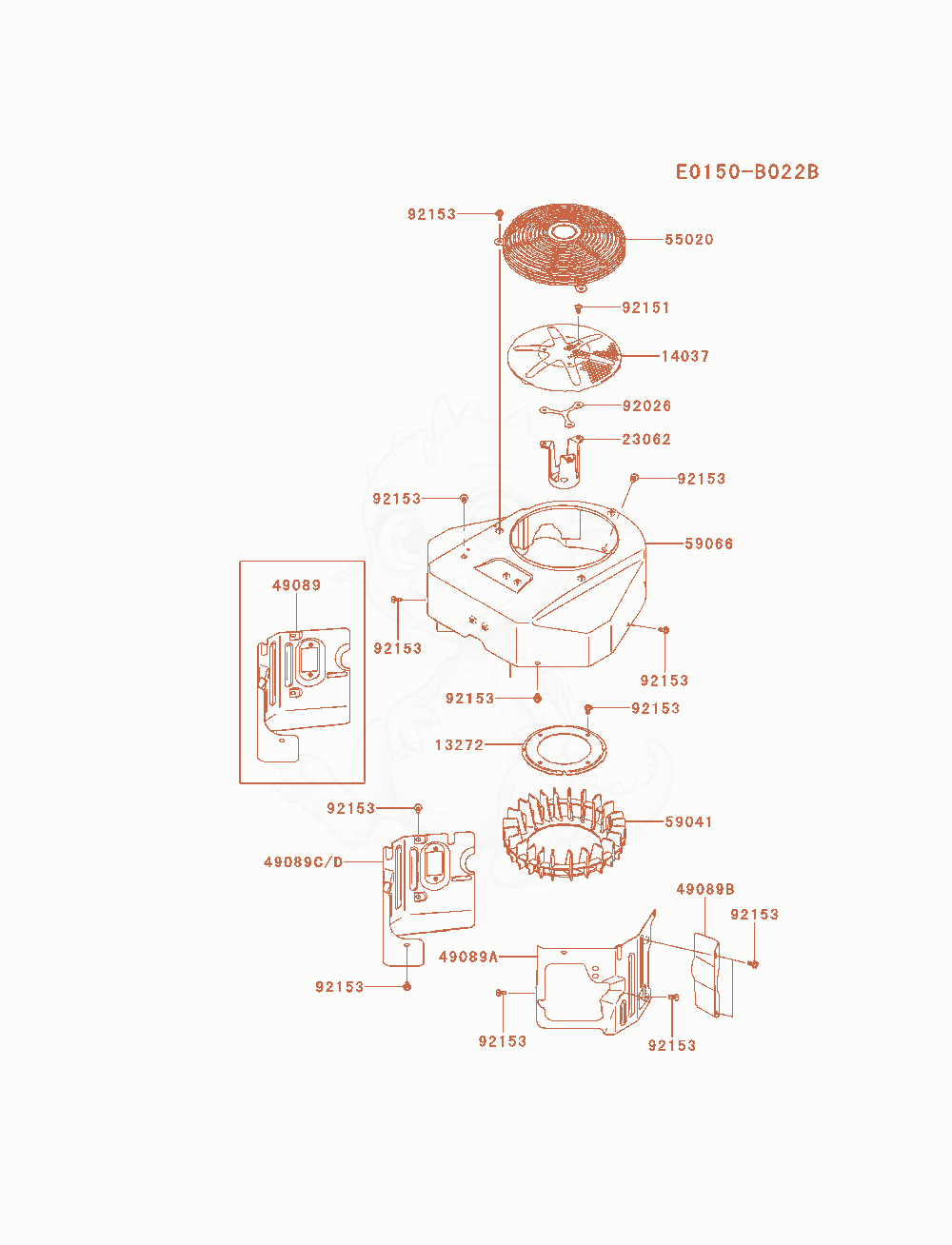

Exploded parts diagram of the Cooling-Equipment of a Kawasaki FX730V-AS13 engine, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 1327213272-7006Price
    PLATE,FANReplaced by 13272-1488×1
  • 1403714037-7008-9HPrice
    SCREEN×1
  • 2306223062-7022Price
    BRACKET-COMP×1
  • 4908949089-7074-753Not stocked
    SHROUD-ENGINE×0
  • 49089A49089-7075-753Not stocked
    SHROUD-ENGINE×1
  • 49089B49089-7076-753Not stocked
    SHROUD-ENGINE×1
  • 49089D49089-7090-753Not stocked
    SHROUD-ENGINE×1
  • 5502055020-7017-9HPrice
    GUARD×1
  • 5904159041-7014Price
    FANReplaced by 59041-0034×1
  • 5906659066-7044-753Not stocked
    HOUSING-FAN×1
  • 9202692026-7007Price
    SPACER×1
  • 9215192151-7012Not stocked
    BOLT,6X12×3
  • 9215392153-7043Not stocked
    BOLT,6X12×18
