FX730V-AS13 4 Stroke Engine FX730V

FX730V-AS13 Piston / Crankshaft Diagram

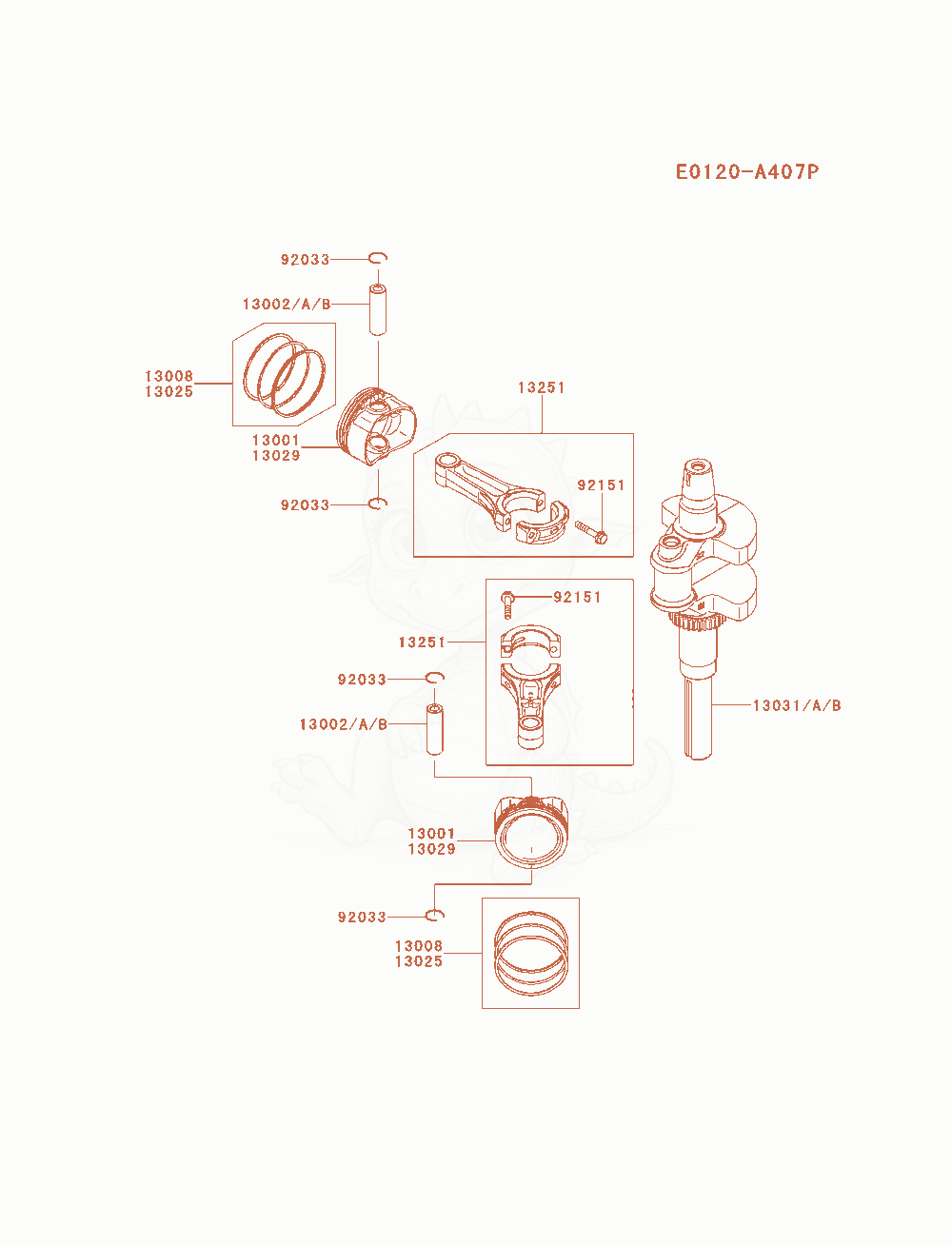

Exploded parts diagram of the Piston / Crankshaft of a Kawasaki FX730V-AS13 engine, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 1300113001-7027Price
    PISTON-ENGINEReplaced by 13001-6004×2
  • 13002A13002-0704Price
    PIN-PISTON×2
  • 13002B13002-0704Price
    PIN-PISTON×0
  • 1300813008-7005Not stocked
    RING-SET-PISTON×2
  • 1302513025-7009Price
    RING-SET-PISTON L,0.5×AR
  • 1302913029-7010Price
    PISTON-ENGINE L,0.5×AR
  • 13031A13031-0823Price
    CRANKSHAFT-COMP×1
  • 13031B13031-0823Price
    CRANKSHAFT-COMP×0
  • 1325113251-0719Price
    ROD-ASSY-CONNECTING×2
  • 9203392033-0755Not stocked
    RING-SNAP×4
  • 9215192151-7017Not stocked
    BOLT,6X35×4
