FX730V-AR11 4 Stroke Engine FX730V

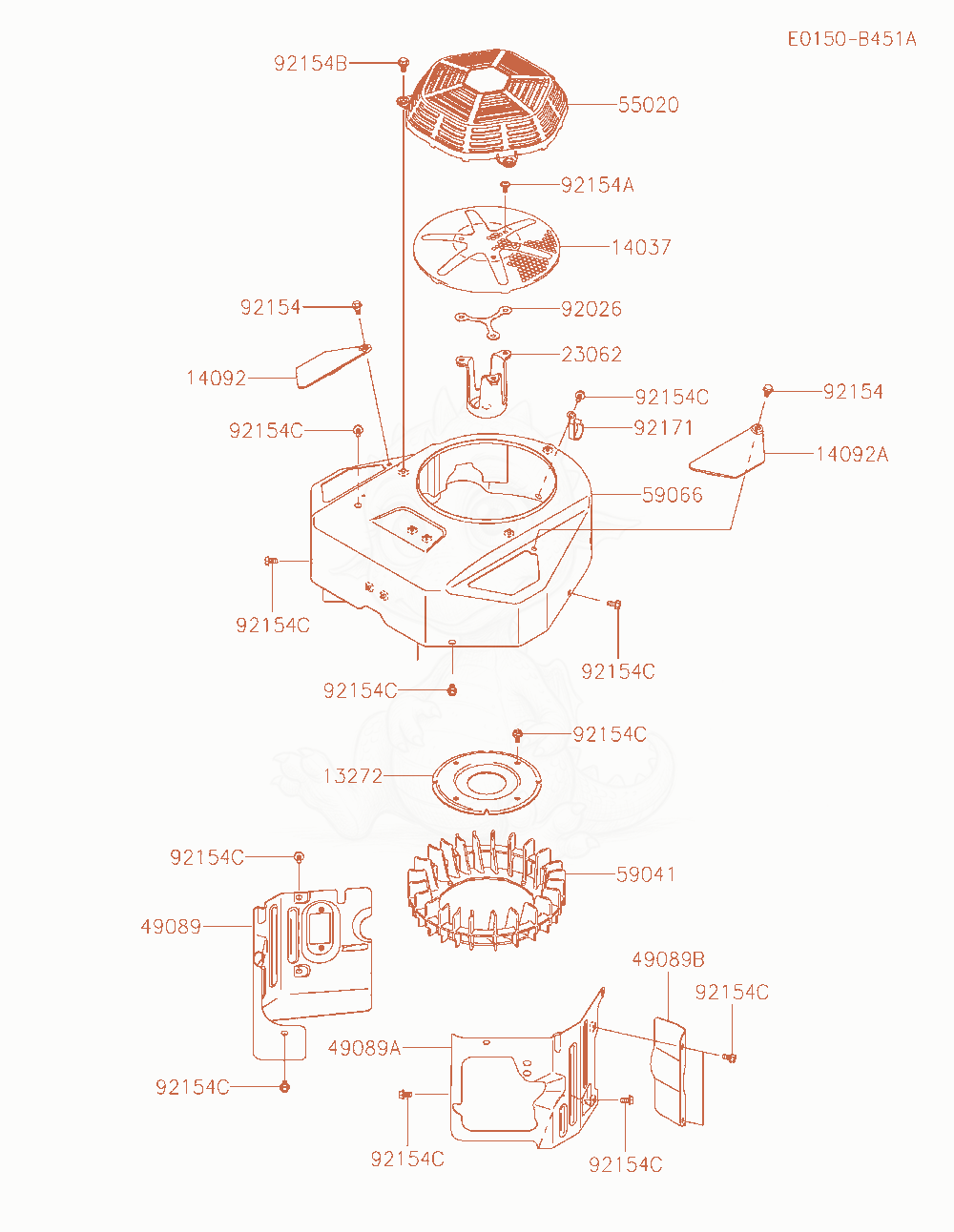

FX730V-AR11 Cooling-Equipment Diagram
- PLATE,FANReplaced by 13272-7483×1
- SCREEN×1
- COVER×1
- COVER×1
- BRACKET-COMP×1
- 4908949089-0888-753Not stockedSHROUD-ENGINE×1
- SHROUD-ENGINEReplaced by 49089-1180×1
- SHROUD-ENGINE×1
- 5502055020-2405Not stockedGUARD×1
- FANReplaced by 59041-0034×1
- HOUSING-FANReplaced by 59066-0852×1
- SPACER×1
- BOLT×2
- BOLT,6X12×3
- BOLT×3
- BOLT,6X12×15
- CLAMP×1
