FX691V-AS24 4 Stroke Engine FX691V

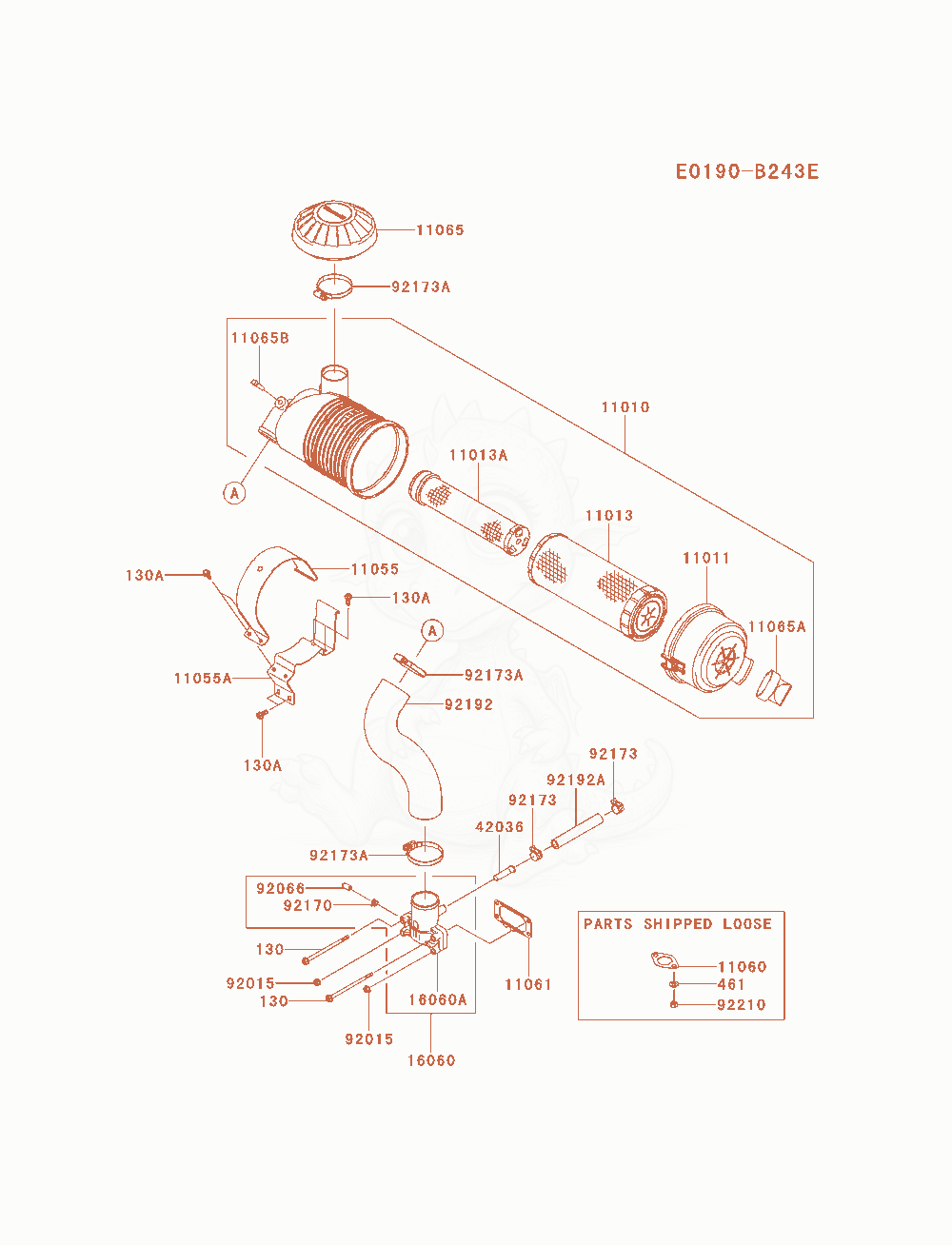

FX691V-AS24 Air-Filter / Muffler Diagram
- FILTER-ASSY-AIR×1
- CASE-AIR FILTER×1
- ELEMENT-AIR FILTER×1
- ELEMENT-AIR FILTER×1
- BRACKET×1
- 11055A11055-7012-9HNot stockedBRACKET×1
- GASKET,MUFFLER×2
- GASKET,CARBURETOR×1
- CAPReplaced by 11065-1384×1
- CAP×1
- CAP×1
- PIPE-INTAKE×1
- PIPE-INTAKE×1
- SLEEVE,BREATHERReplaced by 42036-0781×1
- NUT,FLANGED,6MM×2
- PLUG×1
- CLAMP×1
- CLAMP×2
- CLAMP×3
- 9219292192-1360Not stockedTUBE×1
- TUBE,12.6X18.6X118×1
- NUT,M8×4
- 130130AA06110Not stockedBOLT-FLANGED,6X110×2
- BOLT-FLANGED,6X16×6
- WASHER-SPRING,8MM×4
